9JVN | pdb_00009jvn

Z-FORM DNA-RNA HYBRID

• PDB DOI: https://doi.org/10.2210/pdb9JVN/pdb
• NAKB: 9JVN

• Classification: DNA/RNA
• Organism(s): human viral metagenome
• Expression System: human viral metagenome
• Mutation(s): No


• Deposited: 2024-10-09 Released: 2024-11-06
• Deposition Author(s): Wang, S., Xu, Y.
• Funding Organization(s): Japan Society for the Promotion of Science (JSPS)

---

Experimental Data Snapshot

• Method: SOLUTION NMR
• Conformers Calculated: 50
• Conformers Submitted: 10
• Selection Criteria: structures with the lowest energy

Literature

Z-form DNA-RNA hybrid blocks DNA replication.

Wang, S., Xu, Y.

(2025) Nucleic Acids Res 53

• PubMed: 40037715
• DOI: https://doi.org/10.1093/nar/gkaf135
• Primary Citation of Related Structures:
  9JVN, 9KZP


• PubMed Abstract:


  We discovered that the Z-form DNA-RNA hybrid stabilized by methylated CpG repeats impacts on the initiation and elongation of Okazaki fragments, contributing to blocking DNA replication at first time. We further present the first Z-form DNA-RNA hybrid structure by using NMR spectroscopy and dynamic computation, revealing the molecular mechanism of inhibition, indicating that a distinctive zig-zag strand pattern of the Z-form hybrid with a smaller helical diameter (15 Å) and a very narrow minor groove (8.3 Å) plays the key role in the repression toward DNA replication.

---

Organizational Affiliation:
• Division of Chemistry, Department of Medical Sciences, Faculty of Medicine, University of Miyazaki, 5200 Kihara, Kiyotake, Miyazaki 889-1692, Japan.

Biological Assembly 1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: NMR Distance Restraints

Macromolecule Content

• Total Structure Weight: 4.97 kDa
• Atom Count: 329
• Modeled Residue Count: 16
• Deposited Residue Count: 16
• Unique nucleic acid chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Length	Organism	Image

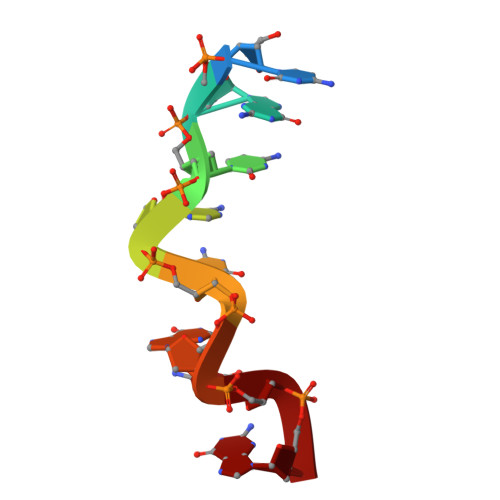

DNA (5'-D(*CP*GP*CP*AP*CP*GP*CP*G)-3')	A	8	human viral metagenome

Entity ID: 2
Molecule	Chains	Length	Organism	Image

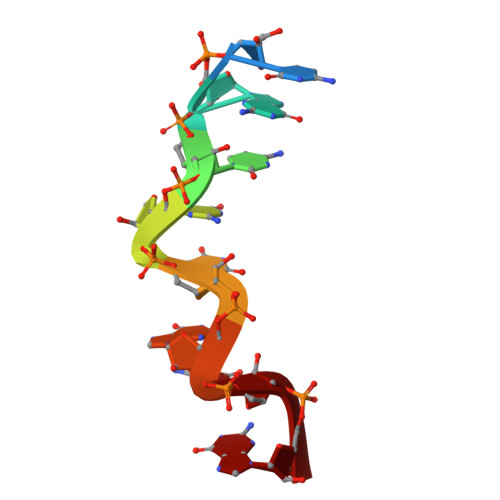

RNA (5'-R(*CP*GP*CP*GP*UP*GP*CP*G)-3')	B	8	human viral metagenome

Experimental Data & Validation

Experimental Data

• Method: SOLUTION NMR
• Conformers Calculated: 50
• Conformers Submitted: 10
• Selection Criteria: structures with the lowest energy

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2024-11-06
Deposition Author(s): Wang, S., Xu, Y.

---

Funding Organization	Location	Grant Number
Japan Society for the Promotion of Science (JSPS)	Japan	--

Revision History

• Version 1.0: 2024-11-06
  Type: Initial release

• Version 1.1: 2025-05-21
  Changes: Database references
