9PZV | pdb_00009pzv

Native GluN1/GluN2A in complex with 5F11 and 3D2 Fabs, local ATD dimer

PDB DOI: https://doi.org/10.2210/pdb9PZV/pdb
EM Map EMD-72083: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Mus musculus
Expression System: Spodoptera frugiperda
Mutation(s): No

Deposited: 2025-08-11 Released: 2025-12-17
Deposition Author(s): Kim, J., Gouaux, E.
Funding Organization(s): National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.92 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Native GluN1/GluN2A in complex with 5F11 and 3D2 Fabs, local ATD dimer

Kim, J., Gouaux, E.

To be published.

Macromolecule Content

Total Structure Weight: 359.43 kDa
Atom Count: 8,069
Modeled Residue Count: 1,145
Deposited Residue Count: 3,195
Unique protein chains: 6

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

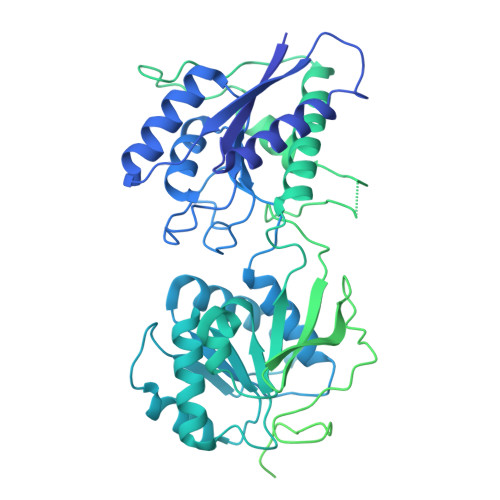

Glutamate receptor ionotropic, NMDA 1	A	938	Mus musculus	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P35438 (Mus musculus) Explore P35438 Go to UniProtKB: P35438
IMPC: MGI:95819
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P35438
Glycosylation
Glycosylation Sites: 7	Glycosylation Focus chain A	Go to GlyGen: P35438-1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

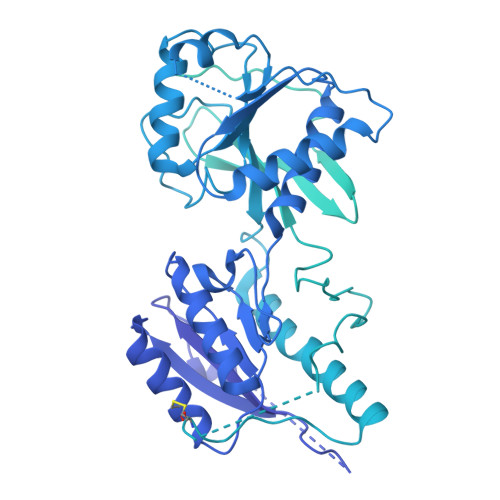

Glutamate receptor ionotropic, NMDA 2A	B	1,464	Mus musculus	Mutation(s): 0
UniProt
Find proteins for P35436 (Mus musculus) Explore P35436 Go to UniProtKB: P35436
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P35436
Glycosylation
Glycosylation Sites: 3	Glycosylation Focus chain B	Go to GlyGen: P35436-1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

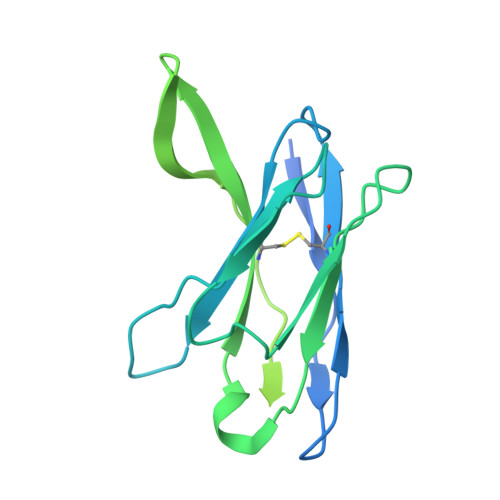

Heavy chain of GluN1-specific monoclonal Fab fragment, termed 5F11	C [auth H]	277	Mus musculus	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

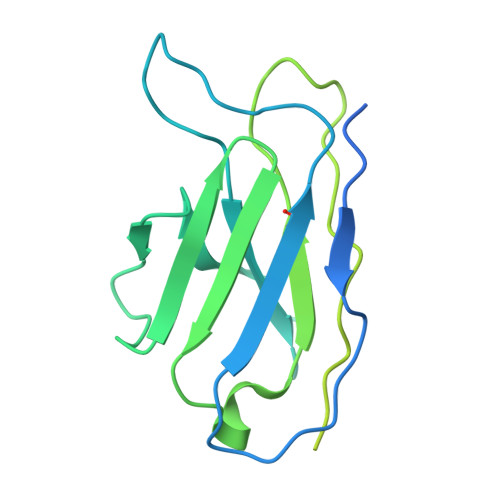

Light chain of GluN1-specific monoclonal Fab fragment, termed 5F11	D [auth I]	244	Mus musculus	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
Heavy chain of GluN2A-specific monoclonal Fab fragment, termed 3D2	E [auth J]	141	Mus musculus	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

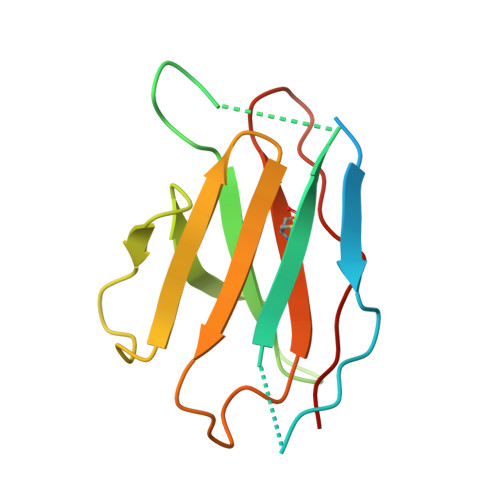

Light chain of GluN2A-specific monoclonal Fab fragment, termed 3D2	F [auth K]	131	Mus musculus	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 7
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	G [auth C]	2		N-Glycosylation	Interactions Focus chain G [auth C] Interactions & Density Focus chain G [auth C]
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG (Subject of Investigation/LOI) Query on NAG Download Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain M [auth A] SDF format, chain N [auth B] SDF format, chain O [auth B] SDF format, chain P [auth B] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain M [auth A] MOL2 format, chain N [auth B] MOL2 format, chain O [auth B] MOL2 format, chain P [auth B] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain M [auth A] mmCIF format, chain N [auth B] mmCIF format, chain O [auth B] mmCIF format, chain P [auth B]	H [auth A] I [auth A] J [auth A] K [auth A] L [auth A] H [auth A], I [auth A], J [auth A], K [auth A], L [auth A], M [auth A], N [auth B], O [auth B], P [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth B] Focus chain O [auth B] Focus chain P [auth B] Interactions & Density Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth B] Focus chain O [auth B] Focus chain P [auth B]
