9GVI | pdb_00009gvi

Quadruplex-duplex hybrids (QDH) complex with PhenDC3 from PIM1 oncogene.


Experimental Data Snapshot

  • Method: SOLUTION NMR
  • Conformers Calculated: 200
  • Conformers Submitted: 10
  • Selection Criteria: structures with the lowest energy

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structural basis of bis-quinolinium ligands binding to quadruplex-duplex hybrids from PIM1 oncogene.

Ghosh, A.Harnos, J.Stadlbauer, P.Sponer, J.Lenarcic Zivkovic, M.Trantirek, L.

(2025) Nucleic Acids Res 53

  • DOI: https://doi.org/10.1093/nar/gkaf894
  • Primary Citation of Related Structures:
    9GVI, 9GVV

  • PubMed Abstract:

    Our study investigates the interaction of two bis-quinolinium ligands, Phen-DC3 and 360A, with the quadruplex-duplex hybrid (QDH) derived from the promoter region of the PIM1 oncogene. While the QDH is polymorphic in vitro, with a hybrid and antiparallel conformation, we demonstrate that it predominantly adopts the antiparallel conformation within the intracellular environment of Xenopus laevis oocytes (eukaryotic model system). Notably, both ligands selectively bind to the hybrid QDH conformation in vitro and in a cellular context. High-resolution nuclear magnetic resonance (NMR) structures of the complexes between the hybrid QDH and the ligands reveal distinct binding modes at the quadruplex-duplex (Q-D) junction. Specifically, Phen-DC3 binds rigidly, while 360A dynamically reorients between two positions. Our findings provide a crucial paradigm highlighting the differences in structural equilibria involving QDH in vitro compared to its behavior in the intracellular space. They also underscore the potential to modulate these equilibria under native-like conditions through ligand interactions. The observed differences in the binding of Phen-DC3 and 360A lay the groundwork for designing next-generation bis-quinolinium compounds with enhanced selectivity for the Q-D junction. Methodologically, our study illustrates the potential of 19F-detected in-cell NMR methodology for screening interactions between DNA targets and drug-like molecules under physiological conditions.


  • Organizational Affiliation
    • Central European Institute of Technology (CEITEC), Masaryk University, Brno 62500, Czech Republic.

Macromolecules
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains LengthOrganismImage

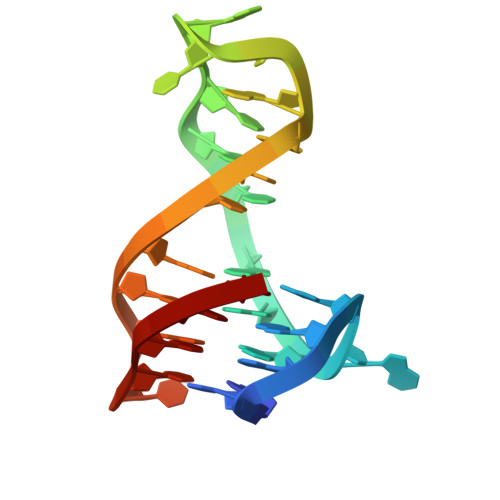

DNA (27-MER) complex with ligand (PhenDC3)27Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
PQ3 (Subject of Investigation/LOI)
Query on PQ3

Download Ideal Coordinates CCD File
B [auth A]N2,N9-bis(1-methylquinolin-3-yl)-1,10-phenanthroline-2,9-dicarboxamide
C34 H26 N6 O2
CTOLNXAGCUTHBW-UHFFFAOYSA-P
Experimental Data & Validation

Experimental Data

  • Method: SOLUTION NMR
  • Conformers Calculated: 200
  • Conformers Submitted: 10
  • Selection Criteria: structures with the lowest energy

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
H2020 Marie Curie Actions of the European CommissionEuropean Union101068280

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-27
    Type: Initial release
  • Version 1.1: 2025-10-01
    Changes: Database references
