9DHZ | pdb_00009dhz

Cryo-EM structure of HURP bound to a microtubule

• PDB DOI: https://doi.org/10.2210/pdb9DHZ/pdb
• EM Map EMD-46893: EMDB EMDataResource

• Classification: PROTEIN BINDING
• Organism(s): Homo sapiens, Sus scrofa
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2024-09-04 Released: 2025-07-16
• Deposition Author(s): Perez-Bertoldi, J.M., Nogales, E.
• Funding Organization(s): European Research Council (ERC), Howard Hughes Medical Institute (HHMI), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.10 Å
• Aggregation State: HELICAL ARRAY
• Reconstruction Method: HELICAL

Literature

HURP regulates Kif18A recruitment and activity to synergistically control microtubule dynamics.

Perez-Bertoldi, J.M., Zhao, Y., Thawani, A., Yildiz, A., Nogales, E.

(2024) Nat Commun 15: 9687-9687

• PubMed: 39516196
• DOI: https://doi.org/10.1038/s41467-024-53691-7
• Primary Citation of Related Structures:
  9DHZ, 9DI0, 9DXC, 9DXE


• PubMed Abstract:


  During mitosis, microtubule dynamics are regulated to ensure proper alignment and segregation of chromosomes. The dynamics of kinetochore-attached microtubules are regulated by hepatoma-upregulated protein (HURP) and the mitotic kinesin-8 Kif18A, but the underlying mechanism remains elusive. Using single-molecule imaging in vitro, we demonstrate that Kif18A motility is regulated by HURP. While sparse decoration of HURP activates the motor, higher concentrations hinder processive motility. To shed light on this behavior, we determine the binding mode of HURP to microtubules using cryo-EM. The structure helps rationalize why HURP functions as a microtubule stabilizer. Additionally, HURP partially overlaps with the microtubule-binding site of the Kif18A motor domain, indicating that excess HURP inhibits Kif18A motility by steric exclusion. We also observe that HURP and Kif18A function together to suppress dynamics of the microtubule plus-end, providing a mechanistic basis for how they collectively serve in microtubule length control.

---

Organizational Affiliation:
• Biophysics Graduate Group, University of California, Berkeley, CA, USA.
Physics Department, University of California, Berkeley, CA, USA.
Department of Molecular and Cell Biology, University of California, Berkeley, CA, USA.
Biophysics Graduate Group, University of California, Berkeley, CA, USA. [e-mail].
Physics Department, University of California, Berkeley, CA, USA. [e-mail].
Department of Molecular and Cell Biology, University of California, Berkeley, CA, USA. [e-mail].
Molecular Biophysics and Integrative Bioimaging Division, Lawrence Berkeley National Laboratory, Berkeley, CA, USA. [e-mail].
Department of Molecular and Cell Biology, University of California, Berkeley, CA, USA. [e-mail].
Molecular Biophysics and Integrative Bioimaging Division, Lawrence Berkeley National Laboratory, Berkeley, CA, USA. [e-mail].
Howard Hughes Medical Institute, University of California, Berkeley, CA, USA. [e-mail].

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 5-mer - A2B2C1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 5-mer - A4B1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 236.94 kDa
• Atom Count: 14,150
• Modeled Residue Count: 1,768
• Deposited Residue Count: 2,083
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

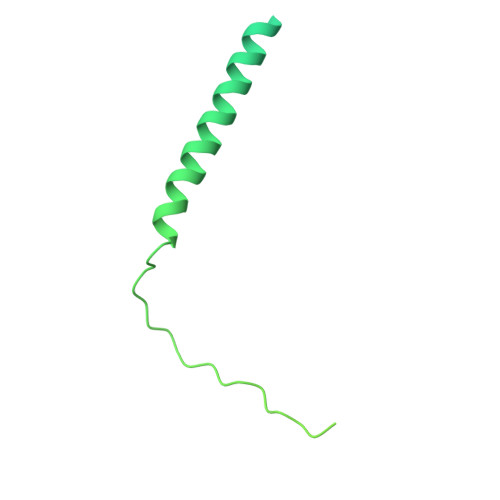

Disks large-associated protein 5	A [auth C]	291	Homo sapiens	Mutation(s): 0  Gene Names: DLGAP5, DLG7, KIAA0008
UniProt & NIH Common Fund Data Resources
Find proteins for Q15398 (Homo sapiens) Explore Q15398  Go to UniProtKB:  Q15398
PHAROS:  Q15398 GTEx:  ENSG00000126787

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

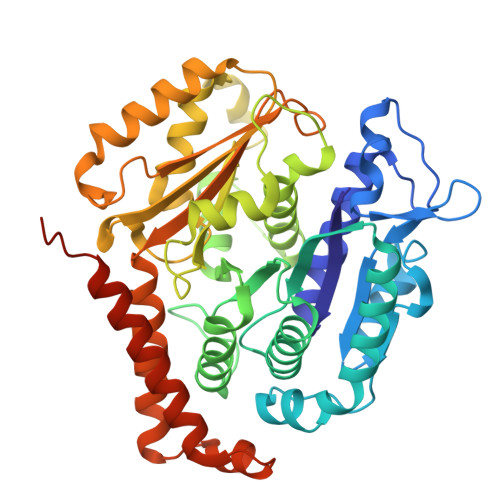

Tubulin beta chain	B [auth A], D [auth K]	445	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for P02554 (Sus scrofa) Explore P02554  Go to UniProtKB:  P02554

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

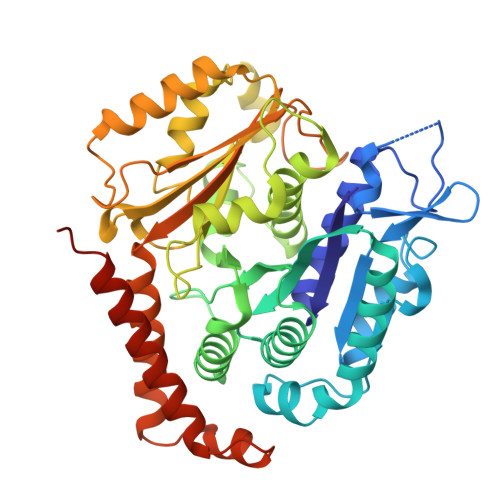

Tubulin alpha-1B chain	C [auth B], E [auth L]	451	Sus scrofa	Mutation(s): 0  EC: 3.6.5
UniProt
Find proteins for Q2XVP4 (Sus scrofa) Explore Q2XVP4  Go to UniProtKB:  Q2XVP4

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
TA1	F [auth A], J [auth K]	TAXOL C47 H51 N O14 RCINICONZNJXQF-MZXODVADSA-N
GTP	H [auth B], L	GUANOSINE-5'-TRIPHOSPHATE C10 H16 N5 O14 P3 XKMLYUALXHKNFT-UUOKFMHZSA-N
GDP	G [auth A], K	GUANOSINE-5'-DIPHOSPHATE C10 H15 N5 O11 P2 QGWNDRXFNXRZMB-UUOKFMHZSA-N
MG	I [auth B], M [auth L]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.10 Å
• Aggregation State: HELICAL ARRAY
• Reconstruction Method: HELICAL

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-07-16
Deposition Author(s): Perez-Bertoldi, J.M., Nogales, E.

---

Funding Organization	Location	Grant Number
European Research Council (ERC)	European Union	--
Howard Hughes Medical Institute (HHMI)	United States	--
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	--

Revision History

• Version 1.0: 2025-07-16
  Type: Initial release
