6Z8H | pdb_00006z8h

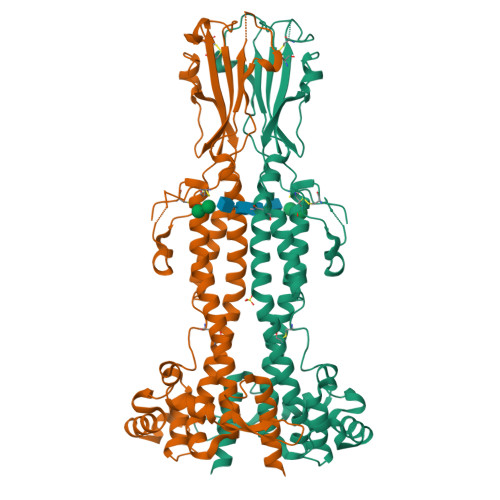

Crystal structure of Variant Surface Glycoprotein VSG13


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.38 Å
  • R-Value Free:
    0.241 (Depositor), 0.239 (DCC)
  • R-Value Work:
    0.218 (Depositor), 0.218 (DCC)
  • R-Value Observed:
    0.218 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 6Z8H

Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history

Literature

Structure of trypanosome coat protein VSGsur and function in suramin resistance.

Zeelen, J.van Straaten, M.Verdi, J.Hempelmann, A.Hashemi, H.Perez, K.Jeffrey, P.D.Halg, S.Wiedemar, N.Maser, P.Papavasiliou, F.N.Stebbins, C.E.

(2021) Nat Microbiol 6: 392-400

  • DOI: https://doi.org/10.1038/s41564-020-00844-1
  • Primary Citation Related Structures:
    6Z79, 6Z7B, 6Z7C, 6Z7D, 6Z7E, 6Z8G, 6Z8H

  • PubMed Abstract:

    Suramin has been a primary early-stage treatment for African trypanosomiasis for nearly 100 yr. Recent studies revealed that trypanosome strains that express the variant surface glycoprotein (VSG) VSGsur possess heightened resistance to suramin. Here, we show that VSGsur binds tightly to suramin but other VSGs do not. By solving high-resolution crystal structures of VSGsur and VSG13, we also demonstrate that these VSGs define a structurally divergent subgroup of the coat proteins. The co-crystal structure of VSGsur with suramin reveals that the chemically symmetric drug binds within a large cavity in the VSG homodimer asymmetrically, primarily through contacts of its central benzene rings. Structure-based, loss-of-contact mutations in VSGsur significantly decrease the affinity to suramin and lead to a loss of the resistance phenotype. Altogether, these data show that the resistance phenotype is dependent on the binding of suramin to VSGsur, establishing that the VSG proteins can possess functionality beyond their role in antigenic variation.


  • Organizational Affiliation
    • Division of Structural Biology of Infection and Immunity, German Cancer Research Center, Heidelberg, Germany.

Macromolecule Content

  • Total Structure Weight: 109.21 kDa
  • Atom Count: 5,782
  • Modeled Residue Count: 701
  • Deposited Residue Count: 998
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Variant surface glycoprotein MITat 1.13
A, B
499Trypanosoma bruceiMutation(s): 0
Membrane Entity: Yes
UniProt
Find proteins for Q58NS4 (Trypanosoma brucei)
Explore Q58NS4
Go to UniProtKB:  Q58NS4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ58NS4
Glycosylation
Glycosylation Sites: 1
Sequence Annotations
Expand
Reference Sequence

Oligosaccharides

Help
Entity ID: 2
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose
C, D
2N/A
Glycosylation Resources
GlyTouCan: G71124KE
GlyCosmos: G71124KE
GlyGen: G71124KE

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.38 Å
  • R-Value Free:  0.241 (Depositor), 0.239 (DCC)
  • R-Value Work:  0.218 (Depositor), 0.218 (DCC)
  • R-Value Observed: 0.218 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 73.717α = 90
b = 68.341β = 92.548
c = 156.903γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
xia2data reduction
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2021-03-17
    Type: Initial release
  • Version 1.1: 2024-01-24
    Changes: Data collection, Database references, Refinement description
  • Version 1.2: 2024-10-23
    Changes: Structure summary
