6NQL

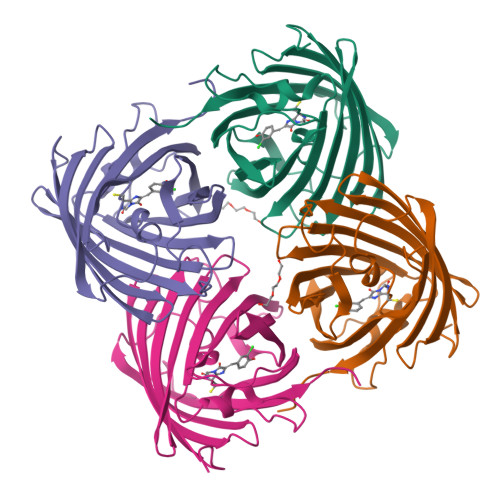

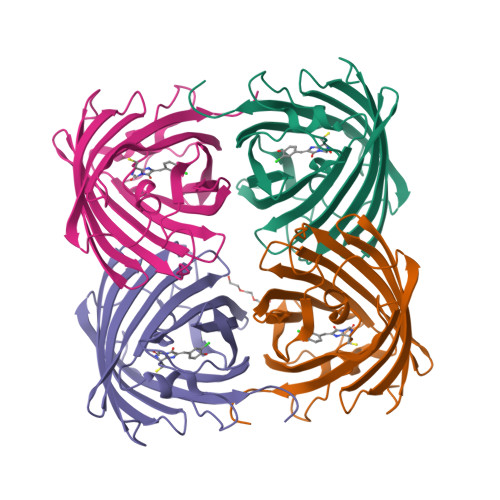

Crystal structure of fast switching M159T mutant of fluorescent protein Dronpa (Dronpa2), Y63(3-ClY)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.15 Å
  • R-Value Free: 0.234
  • R-Value Work: 0.197
  • R-Value Observed: 0.198

wwPDB Validation   3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

Electrostatic control of photoisomerization pathways in proteins.

Romei, M.G.Lin, C.Y.Mathews, I.I.Boxer, S.G.

(2020) Science 367: 76-79

  • DOI: 10.1126/science.aax1898
  • Primary Citation of Related Structures:
    6NQJ, 6NQK, 6NQL, 6NQN, 6NQO, 6NQP, 6NQQ, 6NQR, 6NQS, 6NQV

  • PubMed Abstract:
  • Rotation around a specific bond after photoexcitation is central to vision and emerging opportunities in optogenetics, super-resolution microscopy, and photoactive molecular devices. Competing roles for steric and electrostatic effects that govern bond-specific photoisomerization have been widely discussed, the latter originating from chromophore charge transfer upon excitation ...

    Rotation around a specific bond after photoexcitation is central to vision and emerging opportunities in optogenetics, super-resolution microscopy, and photoactive molecular devices. Competing roles for steric and electrostatic effects that govern bond-specific photoisomerization have been widely discussed, the latter originating from chromophore charge transfer upon excitation. We systematically altered the electrostatic properties of the green fluorescent protein chromophore in a photoswitchable variant, Dronpa2, using amber suppression to introduce electron-donating and electron-withdrawing groups to the phenolate ring. Through analysis of the absorption (color), fluorescence quantum yield, and energy barriers to ground- and excited-state isomerization, we evaluate the contributions of sterics and electrostatics quantitatively and demonstrate how electrostatic effects bias the pathway of chromophore photoisomerization, leading to a generalized framework to guide protein design.


    Organizational Affiliation

    Department of Chemistry, Stanford University, Stanford, CA 94305, USA.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Fluorescent protein DronpaA, B, C, D, E, F, G, H255Echinophyllia sp. SC22Mutation(s): 3
Gene Names: Dronpa
UniProt
Find proteins for Q5TLG6 (Echinophyllia sp. SC22)
Explore Q5TLG6
Go to UniProtKB:  Q5TLG6
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
PGE
Query on PGE

Download Ideal Coordinates CCD File
I [auth B], J [auth C], K [auth H]TRIETHYLENE GLYCOL
C6 H14 O4
ZIBGPFATKBEMQZ-UHFFFAOYSA-N
 Ligand Interaction
Modified Residues  1 Unique
IDChainsTypeFormula2D DiagramParent
KZ7
Query on KZ7
A, B, C, D, E, F, G, HL-PEPTIDE LINKINGC14 H14 Cl N3 O4 SCYS, TYR, GLY
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.15 Å
  • R-Value Free: 0.234
  • R-Value Work: 0.197
  • R-Value Observed: 0.198
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 81.705α = 90
b = 86.28β = 95.08
c = 143.349γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report




Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States27738
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States118044

Revision History  (Full details and data files)

  • Version 1.0: 2019-06-12
    Type: Initial release
  • Version 1.1: 2019-12-25
    Changes: Database references
  • Version 1.2: 2020-01-01
    Changes: Author supporting evidence
  • Version 1.3: 2020-01-15
    Changes: Database references
  • Version 1.4: 2020-02-05
    Changes: Database references
