5EPA

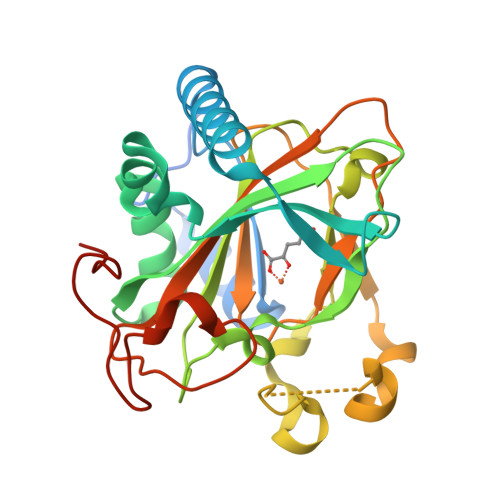

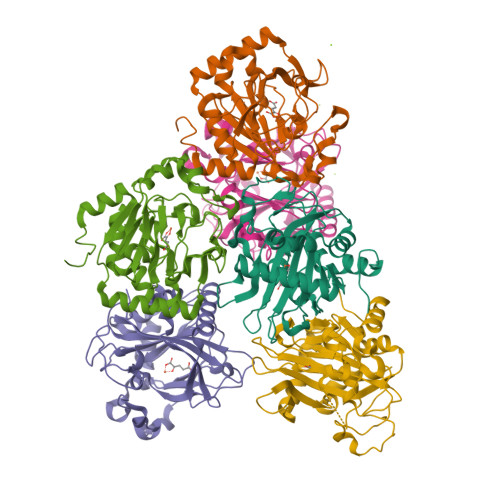

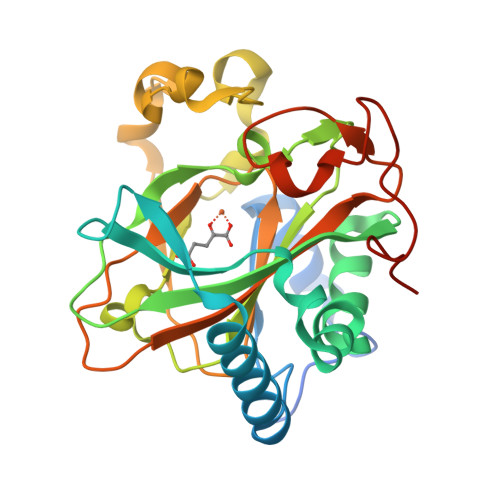

Crystal structure of non-heme alpha ketoglutarate dependent carbocyclase SnoK from nogalamycin biosynthesis


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.24 Å
  • R-Value Free: 0.228
  • R-Value Work: 0.193
  • R-Value Observed: 0.195

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Divergent non-heme iron enzymes in the nogalamycin biosynthetic pathway.

Siitonen, V.Selvaraj, B.Niiranen, L.Lindqvist, Y.Schneider, G.Metsa-Ketela, M.

(2016) Proc Natl Acad Sci U S A 113: 5251-5256

  • DOI: 10.1073/pnas.1525034113
  • Primary Citation of Related Structures:
    5EP9, 5EPA, 5EQU, 5ERL

  • PubMed Abstract:
  • Nogalamycin, an aromatic polyketide displaying high cytotoxicity, has a unique structure, with one of the carbohydrate units covalently attached to the aglycone via an additional carbon-carbon bond. The underlying chemistry, which implies a particularly challenging reaction requiring activation of an aliphatic carbon atom, has remained enigmatic ...

    Nogalamycin, an aromatic polyketide displaying high cytotoxicity, has a unique structure, with one of the carbohydrate units covalently attached to the aglycone via an additional carbon-carbon bond. The underlying chemistry, which implies a particularly challenging reaction requiring activation of an aliphatic carbon atom, has remained enigmatic. Here, we show that the unusual C5''-C2 carbocyclization is catalyzed by the non-heme iron α-ketoglutarate (α-KG)-dependent SnoK in the biosynthesis of the anthracycline nogalamycin. The data are consistent with a mechanistic proposal whereby the Fe(IV) = O center abstracts the H5'' atom from the amino sugar of the substrate, with subsequent attack of the aromatic C2 carbon on the radical center. We further show that, in the same metabolic pathway, the homologous SnoN (38% sequence identity) catalyzes an epimerization step at the adjacent C4'' carbon, most likely via a radical mechanism involving the Fe(IV) = O center. SnoK and SnoN have surprisingly similar active site architectures considering the markedly different chemistries catalyzed by the enzymes. Structural studies reveal that the differences are achieved by minor changes in the alignment of the substrates in front of the reactive ferryl-oxo species. Our findings significantly expand the repertoire of reactions reported for this important protein family and provide an illustrative example of enzyme evolution.


    Organizational Affiliation

    Department of Biochemistry, University of Turku, FIN-20014, Turku, Finland; mikko.mk@gmail.com gunter.schneider@ki.se.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
SnoK
A, B, C, D, E, F
A, B, C, D, E, F
279Streptomyces nogalaterMutation(s): 0
Gene Names: snoK
UniProt
Find proteins for Q9RN60 (Streptomyces nogalater)
Explore Q9RN60
Go to UniProtKB:  Q9RN60
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9RN60
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
AKG
Query on AKG

Download Ideal Coordinates CCD File
H [auth A],
J [auth B],
M [auth C],
O [auth D],
S [auth E],
H [auth A],
J [auth B],
M [auth C],
O [auth D],
S [auth E],
U [auth F]
2-OXOGLUTARIC ACID
C5 H6 O5
KPGXRSRHYNQIFN-UHFFFAOYSA-N
 Ligand Interaction
FE
Query on FE

Download Ideal Coordinates CCD File
G [auth A],
I [auth B],
L [auth C],
N [auth D],
R [auth E],
G [auth A],
I [auth B],
L [auth C],
N [auth D],
R [auth E],
T [auth F]
FE (III) ION
Fe
VTLYFUHAOXGGBS-UHFFFAOYSA-N
 Ligand Interaction
MG
Query on MG

Download Ideal Coordinates CCD File
K [auth B],
P [auth D],
Q [auth D]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.24 Å
  • R-Value Free: 0.228
  • R-Value Work: 0.193
  • R-Value Observed: 0.195
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 76.009α = 90
b = 83.151β = 90
c = 271.677γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Swedish Research CouncilSweden--
Finnish AcademyFinland--

Revision History  (Full details and data files)

  • Version 1.0: 2016-05-11
    Type: Initial release
  • Version 1.1: 2016-05-18
    Changes: Database references
  • Version 1.2: 2017-09-13
    Changes: Author supporting evidence
