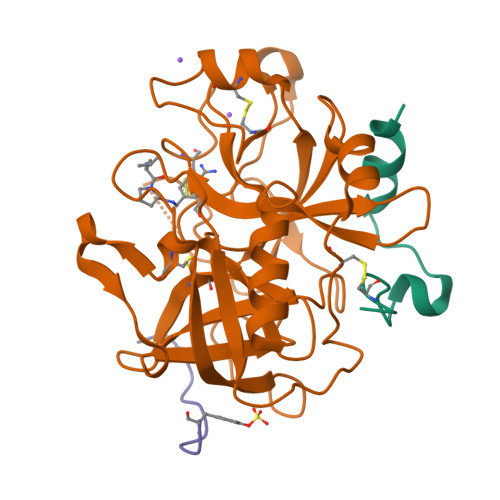

2ZNK

Thrombin Inhibition


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.229
  • R-Value Work: 0.175
  • R-Value Observed: 0.180

wwPDB Validation 3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

Non-additivity of functional group contributions in protein-ligand binding: a comprehensive study by crystallography and isothermal titration calorimetry.

Baum, B.Muley, L.Smolinski, M.Heine, A.Hangauer, D.Klebe, G.

(2010) J Mol Biol 397: 1042-1054

  • DOI: 10.1016/j.jmb.2010.02.007
  • Primary Citation of Related Structures:
    2ZGB, 2ZHQ, 2ZI2, 2ZNK

  • PubMed Abstract:
  • Additivity of functional group contributions to protein-ligand binding is a very popular concept in medicinal chemistry as the basis of rational design and optimized lead structures. Most of the currently applied scoring functions for docking build o ...

    Additivity of functional group contributions to protein-ligand binding is a very popular concept in medicinal chemistry as the basis of rational design and optimized lead structures. Most of the currently applied scoring functions for docking build on such additivity models. Even though the limitation of this concept is well known, case studies examining in detail why additivity fails at the molecular level are still very scarce. The present study shows, by use of crystal structure analysis and isothermal titration calorimetry for a congeneric series of thrombin inhibitors, that extensive cooperative effects between hydrophobic contacts and hydrogen bond formation are intimately coupled via dynamic properties of the formed complexes. The formation of optimal lipophilic contacts with the surface of the thrombin S3 pocket and the full desolvation of this pocket can conflict with the formation of an optimal hydrogen bond between ligand and protein. The mutual contributions of the competing interactions depend on the size of the ligand hydrophobic substituent and influence the residual mobility of ligand portions at the binding site. Analysis of the individual crystal structures and factorizing the free energy into enthalpy and entropy demonstrates that binding affinity of the ligands results from a mixture of enthalpic contributions from hydrogen bonding and hydrophobic contacts, and entropic considerations involving an increasing loss of residual mobility of the bound ligands. This complex picture of mutually competing and partially compensating enthalpic and entropic effects determines the non-additivity of free energy contributions to ligand binding at the molecular level.


    Organizational Affiliation

    Department of Pharmaceutical Chemistry, Philipps-University Marburg, Marbacher Weg 6, 35032 Marburg, Germany.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Thrombin light chainL36Homo sapiensMutation(s): 0
Gene Names: F2
EC: 3.4.21.5
Find proteins for P00734 (Homo sapiens)
Explore P00734
Go to UniProtKB:  P00734
NIH Common Fund Data Resources
PHAROS  P00734
Protein Feature View
Expand
 ( Mouse scroll to zoom / Hold left click to move )
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  Structure
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetailsImage
Thrombin heavy chainH259Homo sapiensMutation(s): 0
Gene Names: F2
EC: 3.4.21.5
Find proteins for P00734 (Homo sapiens)
Explore P00734
Go to UniProtKB:  P00734
NIH Common Fund Data Resources
PHAROS  P00734
Protein Feature View
Expand
 ( Mouse scroll to zoom / Hold left click to move )
  • Reference Sequence
  • Find similar proteins by:  Sequence   |   Structure
Entity ID: 3
MoleculeChainsSequence LengthOrganismDetailsImage
Hirudin variant-1I11Hirudo medicinalisMutation(s): 0
Find proteins for P01050 (Hirudo medicinalis)
Explore P01050
Go to UniProtKB:  P01050
Protein Feature View
Expand
 ( Mouse scroll to zoom / Hold left click to move )
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
31U
Query on 31U

Download CCD File
H
D-leucyl-N-(4-carbamimidoylbenzyl)-L-prolinamide
C19 H29 N5 O2
XFNMDMGNNKIXBT-CVEARBPZSA-N
 Ligand Interaction
NA
Query on NA

Download CCD File
H
SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
 Ligand Interaction
Modified Residues  1 Unique
IDChainsTypeFormula2D DiagramParent
TYS
Query on TYS
IL-PEPTIDE LINKINGC9 H11 N O6 STYR
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
31UKi:  20   nM  Binding MOAD
Biologically Interesting Molecules (External Reference) 1 Unique
Entity ID: 4
IDChainsNameType/Class2D Diagram3D Interactions
PRD_000599 (31U)
Query on PRD_000599
HD-leucyl-N-(4-carbamimidoylbenzyl)-L-prolinamidePeptide-like /  Thrombin inhibitor

--

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.229
  • R-Value Work: 0.175
  • R-Value Observed: 0.180
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 70.2α = 90
b = 71.6β = 100.5
c = 72.5γ = 90
Software Package:
Software NamePurpose
SHELXmodel building
SHELXL-97refinement
MAR345data collection
HKL-2000data reduction
HKL-2000data scaling
SHELXphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History

  • Version 1.0: 2009-04-14
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Atomic model, Database references, Derived calculations, Non-polymer description, Structure summary, Version format compliance
  • Version 1.2: 2012-12-12
    Changes: Other
  • Version 1.3: 2016-05-25
    Changes: Source and taxonomy
  • Version 1.4: 2017-10-11
    Changes: Refinement description
