9LQB | pdb_00009lqb

Crystal structure of NrN E21A in complex with SAH-AMP

• PDB DOI: https://doi.org/10.2210/pdb9LQB/pdb

• Classification: IMMUNE SYSTEM
• Organism(s): Bacteroides fragilis
• Expression System: Escherichia coli
• Mutation(s): Yes


• Deposited: 2025-01-28 Released: 2025-11-26
• Deposition Author(s): Duan, B., Zhao, B.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.93 Å
• R-Value Free:
  0.283 (Depositor), 0.286 (DCC)
• R-Value Work:
  0.240 (Depositor), 0.244 (DCC)
• R-Value Observed:
  0.242 (Depositor)

Starting Model: in silico

Literature

Mechanisms of SAM-AMP synthesis and degradation in antiviral type III CRISPR signaling.

Duan, B., Zhao, B.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 30.71 kDa
• Atom Count: 2,248
• Modeled Residue Count: 252
• Deposited Residue Count: 260
• Unique protein chains: 1

Macromolecules

Entity ID: 1

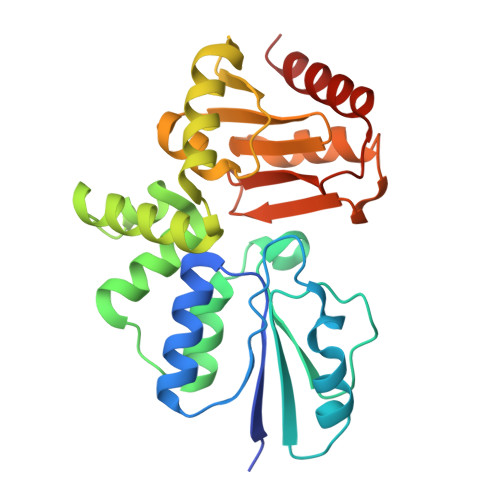

Molecule	Chains	Sequence Length	Organism	Details	Image
NrN	A	260	Bacteroides fragilis	Mutation(s): 1  Gene Names: CQW34_02202, F2Z29_06630, F2Z89_11900, F3B44_04915, FSA03_20595, NXX45_16660
UniProt
Find proteins for A0A2M9V7I2 (Bacteroides fragilis) Explore A0A2M9V7I2  Go to UniProtKB:  A0A2M9V7I2

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1EL0 (Subject of Investigation/LOI)	B [auth A]	(2~{S})-4-[[(2~{S},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3-[[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-4-oxidanyl-oxolan-2-yl]methylsulfanyl]-2-azanyl-butanoic acid C24 H32 N11 O11 P S QBCXMARFZQJLMA-XPJWLEQASA-N
MN (Subject of Investigation/LOI)	C [auth A]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.93 Å
• R-Value Free:  0.283 (Depositor), 0.286 (DCC)
• R-Value Work:  0.240 (Depositor), 0.244 (DCC)
• R-Value Observed: 0.242 (Depositor)

Space Group: P 4₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 71.27	α = 90
b = 71.27	β = 90
c = 121.53	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data scaling
XDS	data reduction
PHENIX	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-11-26
Deposition Author(s): Duan, B., Zhao, B.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History

• Version 1.0: 2025-11-26
  Type: Initial release
