9LQ9 | pdb_00009lq9

Crysral structure of NrN

PDB DOI: https://doi.org/10.2210/pdb9LQ9/pdb

Classification: IMMUNE SYSTEM
Organism(s): Bacteroides fragilis
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-01-28 Released: 2025-11-26
Deposition Author(s): Duan, B., Zhao, B.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.38 Å
R-Value Free:
0.236 (Depositor), 0.233 (DCC)
R-Value Work:
0.200 (Depositor), 0.201 (DCC)
R-Value Observed:
0.202 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Mechanisms of SAM-AMP synthesis and degradation in antiviral type III CRISPR signaling.

Duan, B., Zhao, B.

To be published.

Macromolecule Content

Total Structure Weight: 30.06 kDa
Atom Count: 2,023
Modeled Residue Count: 245
Deposited Residue Count: 260
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1

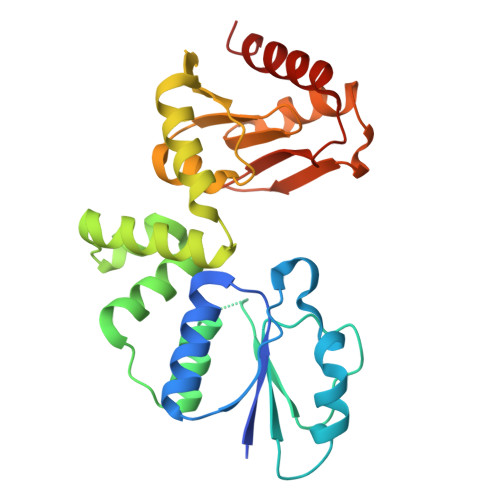

Molecule	Chains	Sequence Length	Organism	Details	Image
NrN	A	260	Bacteroides fragilis	Mutation(s): 0 Gene Names: CQW34_02202, F2Z29_06630, F2Z89_11900, F3B44_04915, FSA06_24365, NXX45_16660
UniProt
Find proteins for A0A2M9V7I2 (Bacteroides fragilis) Explore A0A2M9V7I2 Go to UniProtKB: A0A2M9V7I2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A2M9V7I2
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
MN (Subject of Investigation/LOI) Query on MN Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.38 Å
R-Value Free: 0.236 (Depositor), 0.233 (DCC)
R-Value Work: 0.200 (Depositor), 0.201 (DCC)
R-Value Observed: 0.202 (Depositor)

Space Group: P 6₅

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 112.27	α = 90
b = 112.27	β = 90
c = 40.04	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
xia2	data scaling
xia2	data reduction
PHENIX	phasing

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-11-26

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2025-11-26
Type: Initial release
