9FQL | pdb_00009fql

Crystal structure of hDM2 in complex with a peptidic ligand containing a di-urea insert.


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free:
    0.248 (Depositor), 0.253 (DCC)
  • R-Value Work:
    0.221 (Depositor), 0.225 (DCC)
  • R-Value Observed:
    0.222 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Optimal Stapling of a Helical Peptide-Foldamer Hybrid Using a C-Terminal 4-Mercaptoproline Enhances Protein Surface Recognition and Cellular Activity.

Neuville, M.Bourgeais, M.Buratto, J.Saragaglia, C.Li, B.Galeano-Otero, I.Mauran, L.Varajao, L.Goudreau, S.R.Kauffmann, B.Thinon, E.Pasco, M.Khatib, A.M.Guichard, G.

(2025) Chemistry 31: e202403330-e202403330

  • DOI: https://doi.org/10.1002/chem.202403330
  • Primary Citation of Related Structures:
    9FQL, 9GFK

  • PubMed Abstract:

    Structural analysis of a co-crystal of a helically-folded peptide-foldamer hybrid in complex with hDM2 E3 ubiquitin ligase, revealed a unique orientation for the C-terminal proline with the pyrrolidine ring pointing backwards in the sequence, and suggested new opportunities for macrocyclization. In particular, we found that the C-terminal prolyl residue could be replaced by its (2S,4S)-4-mercaptoprolyl analogue for optimal bisthioether crosslinking with a cysteine residue installed at position 4 in the sequence. The resulting i,i+7 stapled peptide-foldamer is a high-affinity binder to hDM2, is cell permeable and restores the p53 signalling pathway in p53wt cancer cells. The co-crystal structure of hDM2 and the stapled peptide-foldamer hybrid was determined at 1.84 Å, fully validating the original design and further highlighting the potential of cis-4-mercaptoproline in the context of peptide and foldamer stapling.


  • Organizational Affiliation
    • Univ. Bordeaux, CNRS, Bordeaux INP, CBMN, UMR 5248, IECB, 2 rue Robert Escarpit, F-33600, Pessac, France.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

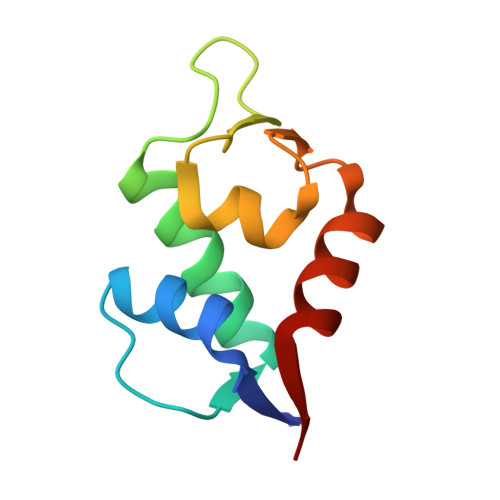

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
E3 ubiquitin-protein ligase Mdm2
A, B, E, F, I
A, B, E, F, I, J
86Homo sapiensMutation(s): 0
Gene Names: MDM2
EC: 2.3.2.27
UniProt & NIH Common Fund Data Resources
Find proteins for Q00987 (Homo sapiens)
Explore Q00987
Go to UniProtKB:  Q00987
PHAROS:  Q00987
GTEx:  ENSG00000135679
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ00987
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

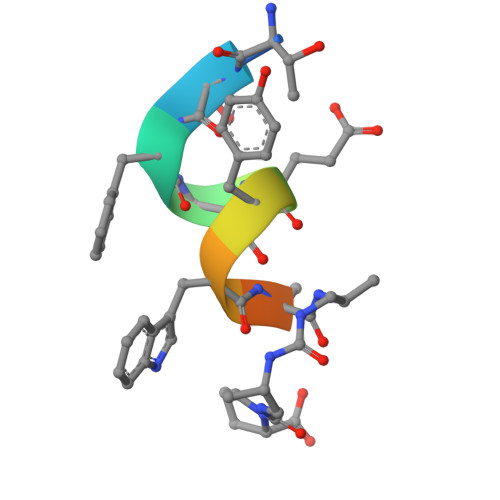

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
p25Lp26A
C, D, G, H, K
C, D, G, H, K, L
11synthetic constructMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
PO4
Query on PO4

Download Ideal Coordinates CCD File
M [auth A]
N [auth B]
O [auth B]
P [auth C]
Q [auth D]
M [auth A],
N [auth B],
O [auth B],
P [auth C],
Q [auth D],
R [auth I],
S [auth I],
T [auth J],
U [auth K],
V [auth L]
PHOSPHATE ION
O4 P
NBIIXXVUZAFLBC-UHFFFAOYSA-K
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free:  0.248 (Depositor), 0.253 (DCC)
  • R-Value Work:  0.221 (Depositor), 0.225 (DCC)
  • R-Value Observed: 0.222 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 41.986α = 90
b = 85.076β = 90
c = 198.423γ = 90
Software Package:
Software NamePurpose
XDSdata reduction
Aimlessdata scaling
PHASERphasing
PHENIXrefinement
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Centre National de la Recherche Scientifique (CNRS)France--

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-02
    Type: Initial release
  • Version 1.1: 2026-01-28
    Changes: Database references
