9TL1 | pdb_00009tl1

Structure of duck RIG-I (delta CARDs) bound to 31-mer RNA mismatched hairpin with 5'ppA-U blunt end mimicking the influenza B virus vRNA promoter (panhandle) and to ADP.

PDB DOI: https://doi.org/10.2210/pdb9TL1/pdb

Classification: RNA BINDING PROTEIN
Organism(s): Anas platyrhynchos, Influenza B virus
Expression System: Spodoptera frugiperda
Mutation(s): Yes

Deposited: 2025-12-10 Released: 2025-12-31
Deposition Author(s): Cusack, S., Ivanov, I.
Funding Organization(s): Other government

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.70 Å
R-Value Free:
0.225 (Depositor), 0.229 (DCC)
R-Value Work:
0.185 (Depositor), 0.193 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

High resolution crystal structures of duck RIG-I and chicken LGP2 bound to non-canonical duplexes mimicking the influenza virus vRNA promoter (panhandle).

Cusack, S., Ivanov, I., Uchikawa, E.

To be published.

Macromolecule Content

Total Structure Weight: 90.14 kDa
Atom Count: 6,747
Modeled Residue Count: 703
Deposited Residue Count: 722
Unique protein chains: 1
Unique nucleic acid chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

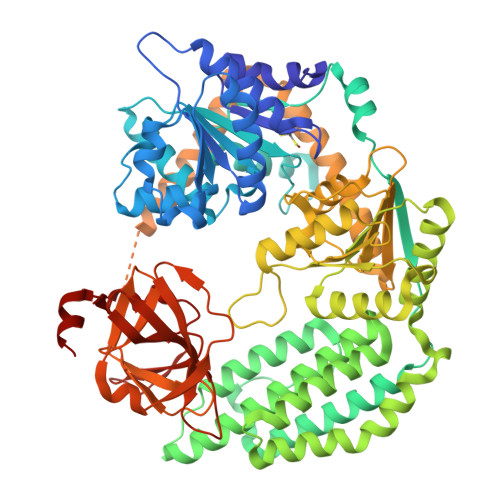

RNA helicase	A	692	Anas platyrhynchos	Mutation(s): 1 Gene Names: RIG-I EC: 3.6.4.13
UniProt
Find proteins for D3TI84 (Anas platyrhynchos) Explore D3TI84 Go to UniProtKB: D3TI84
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	D3TI84
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Length	Organism	Image

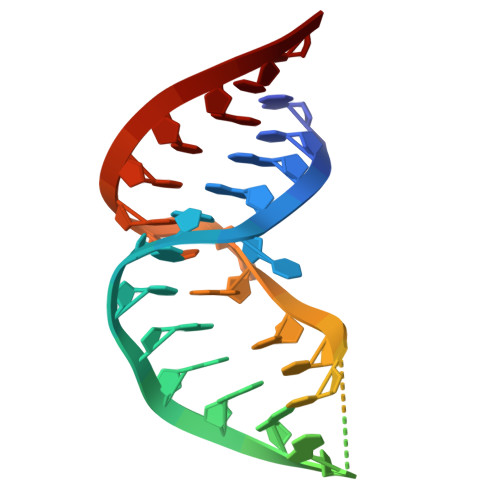

31-mer RNA hairpin with 5'ppA-U blunt end mimicking the influenza B virus vRNA promoter (panhandle).	B [auth R]	30	Influenza B virus
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ADP (Subject of Investigation/LOI) Query on ADP Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain I [auth R] MOL2 format, chain D [auth A] MOL2 format, chain I [auth R] mmCIF format, chain D [auth A] mmCIF format, chain I [auth R]	D [auth A], I [auth R]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain D [auth A] Focus chain I [auth R] Interactions & Density Focus chain D [auth A] Focus chain I [auth R]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain G [auth R] SDF format, chain E [auth A] MOL2 format, chain G [auth R] MOL2 format, chain E [auth A] mmCIF format, chain G [auth R] mmCIF format, chain E [auth A]	E [auth A], G [auth R]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain G [auth R] Interactions & Density Focus chain E [auth A] Focus chain G [auth R]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]
K Query on K Download Ideal Coordinates CCD File SDF format, chain F [auth A] MOL2 format, chain F [auth A] mmCIF format, chain F [auth A]	F [auth A]	POTASSIUM ION K NPYPAHLBTDXSSS-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Interactions & Density Focus chain F [auth A]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain H [auth R] MOL2 format, chain H [auth R] mmCIF format, chain H [auth R]	H [auth R]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain H [auth R] Interactions & Density Focus chain H [auth R]
