9SA7 | pdb_00009sa7

Crystal structure of Methanocaldococcus jannaschii Malate dehydrogenase C7 mutant


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.80 Å
  • R-Value Free:
    0.246 (Depositor), 0.217 (DCC)
  • R-Value Work:
    0.215 (Depositor), 0.213 (DCC)
  • R-Value Observed:
    0.217 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Unraveling the link between thermal adaptation and latent allostery in malate dehydrogenase from Methanococcales.

Pereira, C.S.Coquille, S.Brochier-Armanet, C.Sterpone, F.Madern, D.

(2025) J Mol Biology : 169552-169552

  • DOI: https://doi.org/10.1016/j.jmb.2025.169552
  • Primary Citation of Related Structures:
    9S3K, 9S3Y, 9SA7, 9SC9, 9SD3

  • PubMed Abstract:

    Malate dehydrogenase (MalDH) (EC.1.1.1.37) is an enzyme engaged in the central metabolism of cells, catalyzing the interconversion between oxaloacetate and malate using NADH or NADPH as coenzyme. These enzymes are particularly interesting models for studying how proteins adapt to physical and chemical environmental constraints. In this study, we investigated the molecular mechanisms that have enabled MalDHs to adapt to changes in temperature, using Methanococcales archaea as a model organism. We solved the crystal structure of ancestral MalDHs in these archaea. Structural comparison with present-day MalDHs such as those from Methanocaldococcus infernus (M. inf) and Methanocaldococcus jannaschii (M. jan), highlights the role salt-bridges in thermal adaptation. We also found that present-day MalDHs from M. inf and M. jan, show structural features that resemble the extended or compact states typical of allosteric lactate dehydrogenases. To test hypotheses about a possible link between thermal adaptation and the emergence of allosteric regulation, we characterized structurally two M. jan MalDH mesophilic-like mutants. Molecular dynamics simulations using the Wt M. jan and mutant MalDHs were used to rationalize the experimental data. The results indicate that uncompetent and competent catalytic site configurations are in an equilibrium that depends on temperature conditions. At low temperature the Wt M. jan MalDH select non-competent conformers, whereas high temperature favors active conformers. In contrast, the M. jan MalDH mutants explore competent conformers for catalysis at a lowest temperature, a phenomenon that fits well with their biochemical behavior. Our work reveals that thermal adaptation and evolution of allostery are strongly linked via the modulation of the protein conformational landscape.


  • Organizational Affiliation
    • CNRS, Université de Paris, UPR 9080, Laboratoire de Biochimie Théorique, Paris, France; Institut de Biologie Physico-Chimique-Fondation Edmond de Rothschild, PSL Research University, Paris, France.

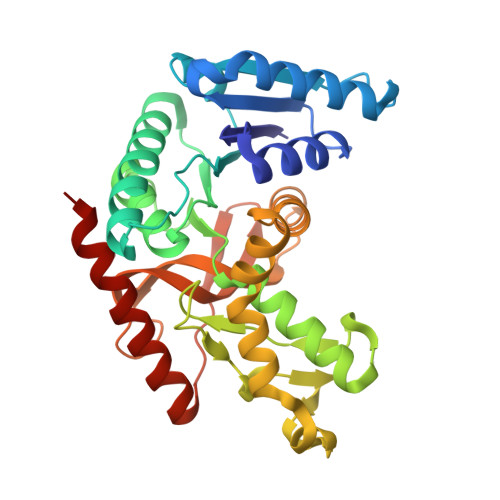

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
L-2-hydroxycarboxylate dehydrogenase (NAD(P)(+))A,
B,
C [auth D],
D [auth C]
313MethanocaldococcaceaeMutation(s): 12
Gene Names: mdhmdhBMJ0490
EC: 1.1.1.375
UniProt
Find proteins for Q60176 (Methanocaldococcus jannaschii (strain ATCC 43067 / DSM 2661 / JAL-1 / JCM 10045 / NBRC 100440))
Explore Q60176
Go to UniProtKB:  Q60176
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ60176
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.80 Å
  • R-Value Free:  0.246 (Depositor), 0.217 (DCC)
  • R-Value Work:  0.215 (Depositor), 0.213 (DCC)
  • R-Value Observed: 0.217 (Depositor)
Space Group: P 32 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 87.764α = 90
b = 87.764β = 90
c = 338.338γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
STARANISOdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Agence Nationale de la Recherche (ANR)FranceANR-21-CE44-0034-01
Agence Nationale de la Recherche (ANR)FranceANR-22-CE02-0027

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-26
    Type: Initial release
  • Version 1.1: 2025-12-03
    Changes: Database references
