9QBQ | pdb_00009qbq

Crystal structure of apo SPARDA complex from Xanthobacter autotrophicus


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free:
    0.282 (Depositor), 0.277 (DCC)
  • R-Value Work:
    0.230 (Depositor), 0.225 (DCC)
  • R-Value Observed:
    0.235 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Activation of the SPARDA defense system by filament assembly using a beta-relay signaling mechanism widespread in prokaryotic Argonautes.

Jurgelaitis, E.Zagorskaite, E.Kopustas, A.Asmontas, S.Manakova, E.Dalgediene, I.Tylenyte, U.Silanskas, A.Toliusis, P.Grybauskas, A.Tutkus, M.Venclovas, C.Zaremba, M.

(2025) Cell Res 35: 1056-1078

  • DOI: https://doi.org/10.1038/s41422-025-01198-1
  • Primary Citation of Related Structures:
    9QBL, 9QBP, 9QBQ, 9QCC

  • PubMed Abstract:

    Present in all three domains of life, Argonaute proteins use short oligonucleotides as guides to recognize complementary nucleic acid targets. In eukaryotes, Argonautes are involved in RNA silencing, whereas in prokaryotes, they function in host defense against invading DNA. Here, we show that SPARDA (short prokaryotic Argonaute, DNase associated) systems from Xanthobacter autotrophicus (Xau) and Enhydrobacter aerosaccus (Eae) function in anti-plasmid defense. Upon activation, SPARDA nonspecifically degrades both invader and genomic DNA, causing host death, thereby preventing further spread of the invader in the population. X-ray structures of the apo Xau and EaeSPARDA complexes show that they are dimers, unlike other apo short pAgo systems, which are monomers. We show that dimerization in the apo state is essential for inhibition of XauSPARDA activity. We demonstrate by cryo-EM that activated XauSPARDA forms a filament. Upon activation, the recognition signal of the bound guide/target duplex is relayed to other functional XauSPARDA sites through a structural region that we termed the "beta-relay". Owing to dramatic conformational changes associated with guide/target binding, XauSPARDA undergoes a "dimer-monomer-filament" transition as the apo dimer dissociates into the guide/target-loaded monomers that subsequently assemble into the filament. Within the activated filament, the DREN nuclease domains form tetramers that are poised to cleave dsDNA. We show that other SPARDAs also form filaments during activation. Furthermore, we identify the presence of the beta-relay in pAgo from all clades, providing new insights into the structural mechanisms of pAgo proteins. Taken together, these findings reveal the detailed structural mechanism of SPARDA and highlight the importance of the beta-relay mechanism in signal transduction in Argonautes.


  • Organizational Affiliation
    • Institute of Biotechnology, Life Sciences Center, Vilnius University, Vilnius, Lithuania.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

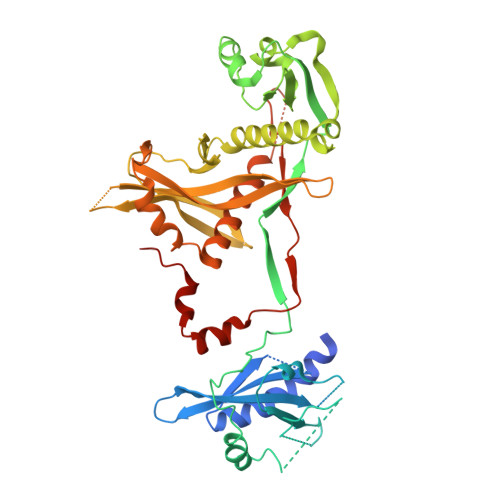

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DUF4365 domain-containing protein
A, C
458Xanthobacter versatilisMutation(s): 0
Gene Names: Xaut_0433
UniProt
Find proteins for A7ICE8 (Xanthobacter autotrophicus (strain ATCC BAA-1158 / Py2))
Explore A7ICE8
Go to UniProtKB:  A7ICE8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA7ICE8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

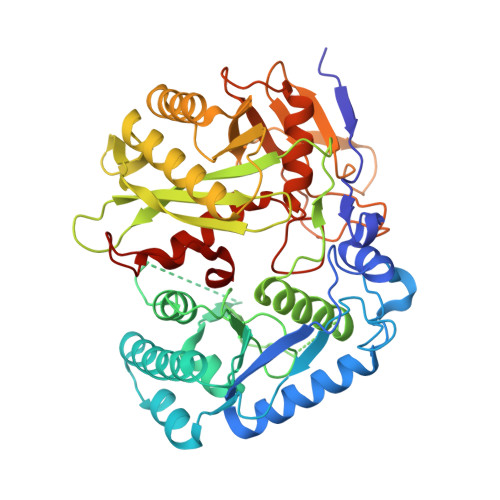

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Protein argonaute
B, D
482Xanthobacter versatilisMutation(s): 0
Gene Names: Xaut_0434
UniProt
Find proteins for A7ICE9 (Xanthobacter autotrophicus (strain ATCC BAA-1158 / Py2))
Explore A7ICE9
Go to UniProtKB:  A7ICE9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA7ICE9
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
SO4
Query on SO4

Download Ideal Coordinates CCD File
E [auth A]
F [auth B]
G [auth B]
H [auth B]
I [auth B]
E [auth A],
F [auth B],
G [auth B],
H [auth B],
I [auth B],
J [auth B],
K [auth C],
L [auth C],
M [auth C],
N [auth D],
O [auth D],
P [auth D],
Q [auth D],
R [auth D],
S [auth D],
T [auth D]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free:  0.282 (Depositor), 0.277 (DCC)
  • R-Value Work:  0.230 (Depositor), 0.225 (DCC)
  • R-Value Observed: 0.235 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 127.734α = 90
b = 73.29β = 115.17
c = 128.001γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
iNEXTEuropean UnionH2020 Grant # 653706

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-17
    Type: Initial release
  • Version 1.1: 2025-12-24
    Changes: Database references
