9Q8Y | pdb_00009q8y

Structure of RNF38 RING with linchpin mutant R454Y in complex with Ubch5B-Ub


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.63 Å
  • R-Value Free:
    0.275 (Depositor), 0.283 (DCC)
  • R-Value Work:
    0.232 (Depositor), 0.244 (DCC)
  • R-Value Observed:
    0.234 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Tuning ubiquitin transfer by RING E3 ubiquitin ligases through the linchpin residue.

Nakasone, M.A.Buetow, L.Gabrielsen, M.Ahmed, S.F.Majorek, K.A.Sibbet, G.J.Smith, B.O.Huang, D.T.

(2025) Life Sci Alliance 8

  • DOI: https://doi.org/10.26508/lsa.202503394
  • Primary Citation of Related Structures:
    9Q88, 9Q8Y

  • PubMed Abstract:

    RING family ubiquitin ligases (E3s) employ the RING domain to recruit the E2 thioester ubiquitin (E2∼Ub) intermediate to catalyze the transfer of ubiquitin (Ub) to substrates. A cationic Arg linchpin (LP) residue in the RING domain plays a key role in stabilizing the interface with E2∼Ub, but the identity of the LP residue varies across E3s. Here, we investigate how the LP residue contributes to ubiquitination. Using the model RNF38 system, we demonstrate that substitution of LP Arg to the other 19 available amino acids modulates ubiquitination, ranging from minor reduction to complete abolition. The identity of the LP residue influences E2∼Ub binding but does not correlate with E3 activity. NMR and X-ray crystallography analyses reveal that RNF38 LP Arg variants stabilize E2∼Ub in a catalytically competent conformation to varying degrees. By altering the LP residue in XIAP, we show that the XIAP Y485R variant promotes E2∼Ub stabilization and enhances substrate ubiquitination in cells. Our work demonstrates the importance of the LP residue in modulating E2∼Ub conformation to control ubiquitination.


  • Organizational Affiliation
    • Cancer Research UK Scotland Institute, Glasgow, UK mark.nakasone@glasgow.ac.uk.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

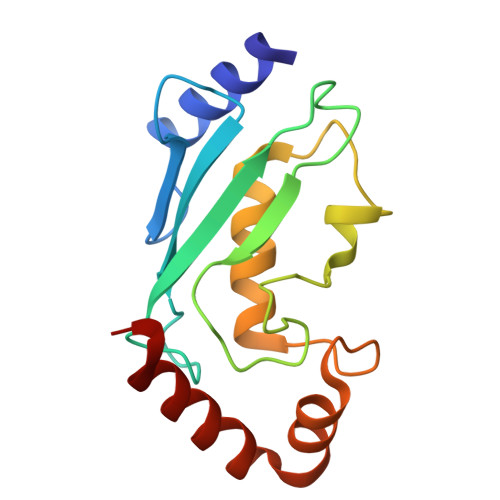

Ubiquitin-conjugating enzyme E2 D2
A, B
146Homo sapiensMutation(s): 2
Gene Names: UBE2D2PUBC1UBC4UBC5BUBCH4UBCH5B
EC: 2.3.2.23 (PDB Primary Data), 2.3.2.24 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for P62837 (Homo sapiens)
Explore P62837
Go to UniProtKB:  P62837
PHAROS:  P62837
GTEx:  ENSG00000131508
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62837
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

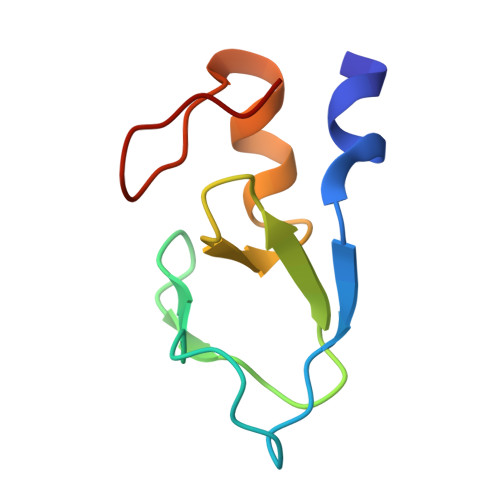

Isoform 2 of E3 ubiquitin-protein ligase RNF38
C, D
69Homo sapiensMutation(s): 1
Gene Names: RNF38
EC: 2.3.2.27
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H0F5 (Homo sapiens)
Explore Q9H0F5
Go to UniProtKB:  Q9H0F5
PHAROS:  Q9H0F5
GTEx:  ENSG00000137075
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9H0F5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

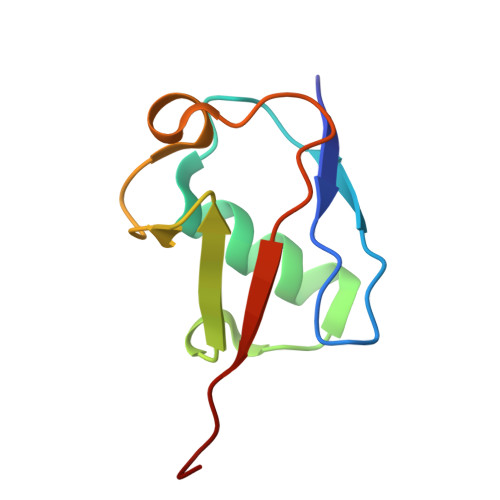

Ubiquitin-40S ribosomal protein S27aE [auth F],
F [auth G]
77Homo sapiensMutation(s): 0
Gene Names: RPS27A
UniProt & NIH Common Fund Data Resources
Find proteins for P0CG48 (Homo sapiens)
Explore P0CG48
Go to UniProtKB:  P0CG48
PHAROS:  P0CG48
GTEx:  ENSG00000150991
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0CG48
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.63 Å
  • R-Value Free:  0.275 (Depositor), 0.283 (DCC)
  • R-Value Work:  0.232 (Depositor), 0.244 (DCC)
  • R-Value Observed: 0.234 (Depositor)
Space Group: P 62
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 116.079α = 90
b = 116.079β = 90
c = 90.315γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
xia2data reduction
Aimlessdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Cancer Research UKUnited Kingdom--

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-30
    Type: Initial release
  • Version 1.1: 2025-08-20
    Changes: Database references
