9O2R | pdb_00009o2r

BG505-DS SOSIP in complex with 007 bNAb Fabs - Class 1 (1 Fab bound)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9O2R

This is version 1.0 of the entry. See complete history

Literature

Identification of a broad and potent V3 glycan site bNAb targeting an N332 gp120 glycan-independent epitope.

Gieselmann, L.DeLaitsch, A.T.Rohde, M.Radford, C.Worczinski, J.Momot, A.Ahmadov, E.Burger, J.A.Havenar-Daughton, C.Deshpande, S.Giovannoni, F.Corti, D.Kreer, C.Ercanoglu, M.S.Schommers, P.Georgiev, I.S.West, A.P.Knufer, J.Stumpf, R.Kroidl, A.Geldmacher, C.Maganga, L.William, W.Ntinginya, N.E.Hoelscher, M.Yang, Z.Wei, Q.Renfrow, M.Green, T.J.Novak, J.van Gils, M.J.Gristick, H.B.Gruell, H.Bloom, J.D.Seaman, M.S.Bjorkman, P.J.Klein, F.

(2025) bioRxiv

  • DOI: https://doi.org/10.1101/2025.09.05.674437
  • Primary Citation Related Structures:
    9O2Q, 9O2R, 9O2S, 9O2T, 9O2U

  • PubMed Abstract:

    Broadly neutralizing antibodies (bNAbs) against HIV-1 can suppress viremia in vivo and inform vaccine development. Here, we characterized 007, a V3 glycan site bNAb exhibiting high levels of antiviral activity against multiclade pseudovirus panels 1-3 (GeoMean IC 50 = 0.012 μg/mL, breadth = 69%, 217 virus strains) by targeting a N332 gp120 glycan-independent V3 epitope, a site of Env vulnerability to which only weakly neutralizing antibodies had previously been identified. Functional analyses demonstrated distinct binding and neutralization profiles compared to classical V3 glycan site bNAbs. A 007 Fab-Env cryo-EM structure revealed contacts with the V3 324 GD/NIR 327 motif and interactions with N156 gp120 and N301 gp120 glycans. In contrast to classical V3 bNAbs, 007 binding to Env does not depend on the N332 gp120 glycan, rendering it resistant to common escape mutations. Structures of 007 IgG-Env trimer complexes showed two Env trimers crosslinked by three bivalent IgGs, and bivalent 007 IgG was up to ~300-fold more potent than monovalent 007 IgG heterodimer, suggesting a role for avidity in potent neutralization. Finally, in HIV-1 ADA -infected humanized mice, 007 caused transient decline of viremia and overcame classical V3 escape mutations, highlighting 007's potential for HIV-1 prevention, therapy, functional cure, and vaccine design.


  • Organizational Affiliation
    • Laboratory of Experimental Immunology, Institute of Virology, Faculty of Medicine and University Hospital Cologne, University of Cologne, 50931 Cologne, Germany.

Macromolecule Content

  • Total Structure Weight: 277.17 kDa
  • Atom Count: 15,902
  • Modeled Residue Count: 1,897
  • Deposited Residue Count: 2,350
  • Unique protein chains: 4

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

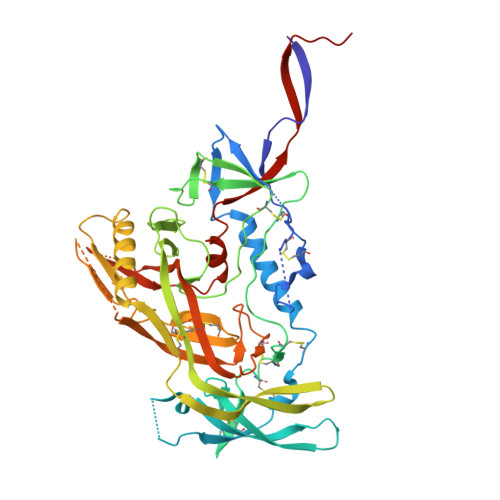

Envelope glycoprotein gp120
A, C, E
476Human immunodeficiency virus 1Mutation(s): 0
Gene Names: env
UniProt
Find proteins for Q2N0S6 (Human immunodeficiency virus type 1)
Explore Q2N0S6
Go to UniProtKB:  Q2N0S6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ2N0S6
Glycosylation
Glycosylation Sites: 12
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
Envelope glycoprotein gp41
B, D, F
156Human immunodeficiency virus 1Mutation(s): 0
Gene Names: env
UniProt
Find proteins for Q2N0S6 (Human immunodeficiency virus type 1)
Explore Q2N0S6
Go to UniProtKB:  Q2N0S6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ2N0S6
Glycosylation
Glycosylation Sites: 1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

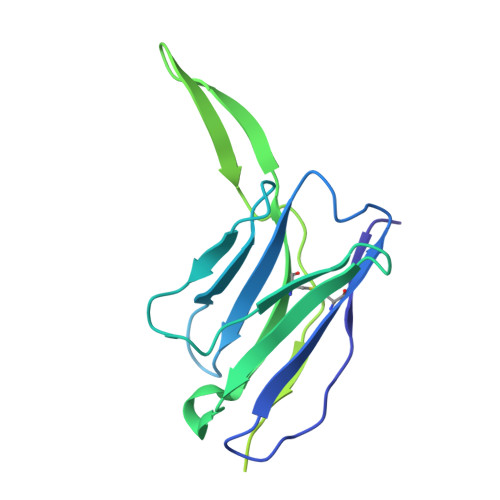

007 Fab Heavy ChainG [auth H]240Homo sapiensMutation(s): 0
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

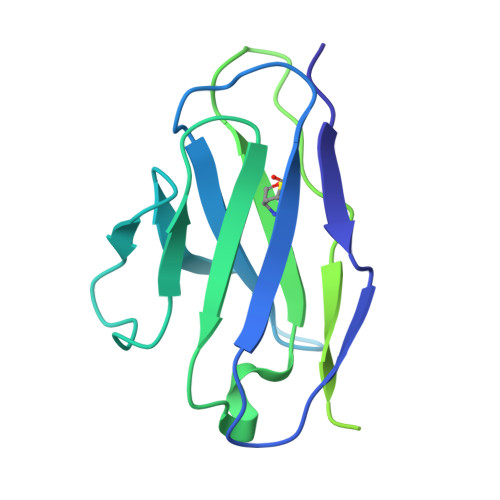

007 Light ChainH [auth L]214Homo sapiensMutation(s): 0

Oligosaccharides

Help
Entity ID: 5
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseI [auth G]8N-Glycosylation
Entity ID: 6
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseJ [auth I]6N-Glycosylation
Glycosylation Resources
GlyTouCan: G09724ZC
GlyCosmos: G09724ZC
GlyGen: G09724ZC
Entity ID: 8
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
R, W
3N-Glycosylation
Glycosylation Resources
GlyTouCan: G15407YE
GlyCosmos: G15407YE
GlyGen: G15407YE

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NAG

Query on NAG



Download:Ideal Coordinates CCD File
AA [auth A]
BA [auth A]
CA [auth A]
DA [auth A]
EA [auth A]
AA [auth A],
BA [auth A],
CA [auth A],
DA [auth A],
EA [auth A],
FA [auth A],
GA [auth A],
HA [auth B],
IA [auth C],
JA [auth C],
KA [auth C],
LA [auth C],
MA [auth C],
NA [auth C],
OA [auth D],
PA [auth E],
QA [auth E],
RA [auth E],
SA [auth E],
TA [auth E],
UA [auth E],
VA [auth F]
2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Bill & Melinda Gates FoundationUnited StatesINV-002143

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-01
    Type: Initial release
