9NR9 | pdb_00009nr9

The structure of GluA1/A4 LBD-TMD with 2 TARPs


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.22 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Gating and noelin clustering of native Ca 2+ -permeable AMPA receptors.

Fang, C.L.Spangler, C.J.Park, J.Sheldon, N.Trussell, L.O.Gouaux, E.

(2025) Nature 645: 526-534

  • DOI: https://doi.org/10.1038/s41586-025-09289-0
  • Primary Citation of Related Structures:
    9NR6, 9NR7, 9NR8, 9NR9, 9NRA

  • PubMed Abstract:

    AMPA-type ionotropic glutamate receptors (AMPARs) are integral to fast excitatory synaptic transmission and play vital roles in synaptic plasticity, motor coordination, learning, and memory 1 . While extensive structural studies have been conducted on recombinant AMPARs and native calcium impermeable (CI)-AMPARs alongside their auxiliary proteins 2-5 , the molecular architecture of native calcium permeable (CP)-AMPARs has remained undefined. To elucidate the subunit composition, physiological architecture, and gating mechanisms of CP-AMPARs, here we present the first visualization of these receptors, immunoaffinity purified from rat cerebella, and resolve their structures using cryo-electron microscopy (cryo-EM). Our results indicate that the predominant assembly consists of GluA1 and GluA4 subunits, with the GluA4 subunit occupying the B and D positions, while auxiliary subunits, including TARPs, are located at the B'/D' positions and CNIHs or TARPs at the A'/C' positions. Furthermore, we resolved the structure of the Noelin 1-GluA1/A4 complex, wherein Noelin 1 (Noe 1) specifically binds to the GluA4 subunit at the B and D positions. Notably, Noe 1 stabilizes the amino-terminal domain (ATD) layer without affecting receptor gating properties. Noe 1 contributes to AMPAR function by forming dimeric-AMPAR assemblies that likely engage in extracellular networks, clustering receptors within synaptic environments and modulating receptor responsiveness to synaptic inputs.


  • Organizational Affiliation
    • Vollum Institute, Oregon Health & Science University, Portland, OR, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

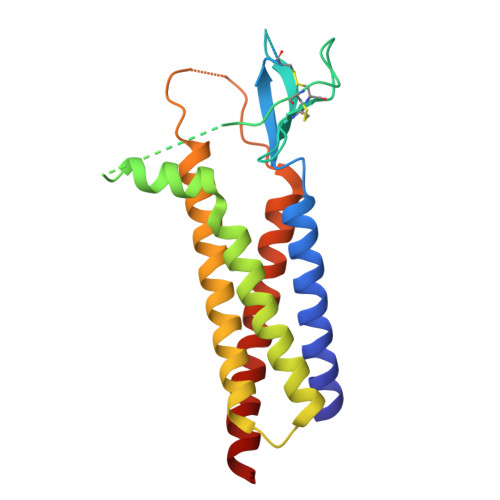

Voltage-dependent calcium channel gamma-2 subunitA [auth F],
B [auth H]
204Rattus norvegicusMutation(s): 0
UniProt
Find proteins for Q71RJ2 (Rattus norvegicus)
Explore Q71RJ2
Go to UniProtKB:  Q71RJ2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ71RJ2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

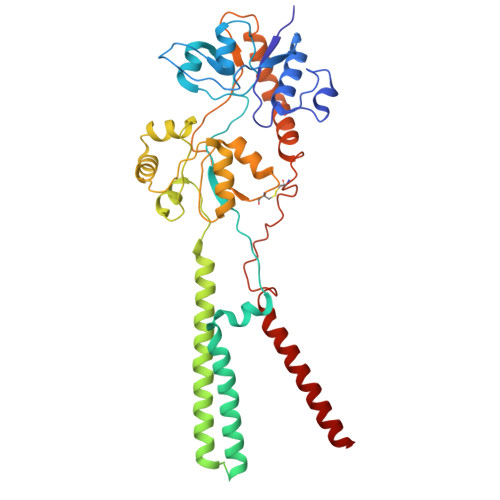

Glutamate receptor 1C [auth A],
E [auth C]
427Rattus norvegicusMutation(s): 0
UniProt
Find proteins for P19490 (Rattus norvegicus)
Explore P19490
Go to UniProtKB:  P19490
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP19490
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

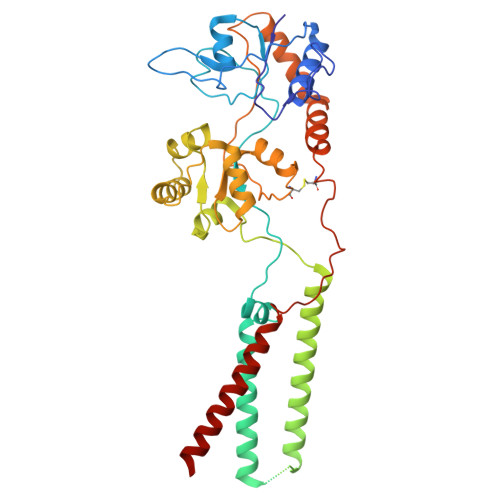

Isoform 2 of Glutamate receptor 4D [auth B],
F [auth D]
424Rattus norvegicusMutation(s): 0
UniProt
Find proteins for P19493 (Rattus norvegicus)
Explore P19493
Go to UniProtKB:  P19493
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP19493
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.22 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.20.1_4487:
RECONSTRUCTIONcryoSPARC4.4

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Howard Hughes Medical Institute (HHMI)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-02
    Type: Initial release
  • Version 1.1: 2025-07-09
    Changes: Data collection, Database references
  • Version 1.2: 2025-09-17
    Changes: Data collection, Database references
  • Version 1.3: 2025-11-26
    Changes: Data collection, Database references, Structure summary
