9M36 | pdb_00009m36

Structure of human TRPC5 in the low Ca environment.

  • Classification: MEMBRANE PROTEIN
  • Organism(s): Homo sapiens
  • Expression System: Homo sapiens
  • Mutation(s): No

  • Deposited: 2025-02-28 Released: 2025-07-02
  • Deposition Author(s): Song, K.C., Wei, M., Chen, L.
  • Funding Organization(s): Ministry of Science and Technology (MoST, China), National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.48 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 2.1 of the entry. See complete history.


Literature

Mechanism of (-)-Englerin A and calcium binding on the human TRPC5 channel.

Chen, Y., Song, K., Guo, W., Wei, M., Chen, L.

(2025) Protein Sci 34: e70218-e70218

  • DOI: https://doi.org/10.1002/pro.70218
  • Primary Citation of Related Structures:
    9M36, 9M4W, 9M5V

  • PubMed Abstract:

    The natural product (-)-Englerin A (EA) selectively inhibits renal cancer cell growth by potently activating TRPC4 and TRPC5-containing ion channels. However, its binding site on these channels has remained elusive. In this study, we present two cryo-EM structures of human TRPC5 in complex with EA at 2.5 and 2.6 Å resolution, which reveal the EA-binding site and identify two major conformations influenced by calcium. EA binds between the pore helix and S5/S6 helices of hTRPC5, forming critical hydrophobic and polar interactions that underscore its specificity. Calcium binding at the intracellular domain of TRPC5 induces structural changes that stabilize the domain in a compact conformation. These findings expand our understanding of the structural pharmacology of TRPC5 and provide a framework for investigating calcium regulation in TRPC channels.

    • Organizational Affiliation:
    • State Key Laboratory of Membrane Biology, College of Future Technology, Institute of Molecular Medicine, Beijing Key Laboratory of Cardiometabolic Molecular Medicine, Peking University, Beijing, China.

Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

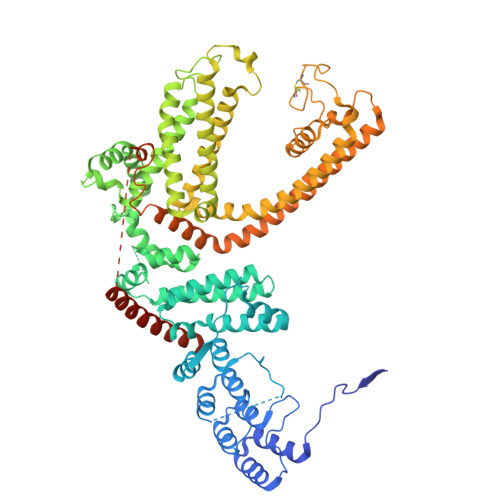

Short transient receptor potential channel 5
A, B, C, D
764Homo sapiensMutation(s): 0
Gene Names: TRPC5, TRP5
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UL62 (Homo sapiens)
Explore Q9UL62
Go to UniProtKB:  Q9UL62
PHAROS:  Q9UL62
GTEx:  ENSG00000072315
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UL62
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 5 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
POV
Query on POV
Download Ideal Coordinates CCD File
G [auth A],
L [auth B],
Q [auth C],
V [auth D]		(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
C42 H82 N O8 P
WTJKGGKOPKCXLL-PFDVCBLKSA-N
PTY
Query on PTY
Download Ideal Coordinates CCD File
F [auth A],
K [auth B],
P [auth C],
U [auth D]		PHOSPHATIDYLETHANOLAMINE
C40 H80 N O8 P
NJGIRBISCGPRPF-KXQOOQHDSA-N
A1L5I
Query on A1L5I
Download Ideal Coordinates CCD File
I [auth A],
N [auth B],
S [auth C],
X [auth D]		[(2~{S})-2-[(~{E})-octadec-9-enoyl]oxy-3-oxidanyl-propyl] octadec-9-enoate
C39 H72 O5
AFSHUZFNMVJNKX-SKNMGDSLSA-N
Y01
Query on Y01
Download Ideal Coordinates CCD File
H [auth A],
M [auth B],
R [auth C],
W [auth D]		CHOLESTEROL HEMISUCCINATE
C31 H50 O4
WLNARFZDISHUGS-MIXBDBMTSA-N
ZN
Query on ZN
Download Ideal Coordinates CCD File
E [auth A],
J [auth B],
O [auth C],
T [auth D]		ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.48 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



View more in-depth experimental data
Entry History & Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Ministry of Science and Technology (MoST, China)China2022YFA0806504
National Natural Science Foundation of China (NSFC)China32225027

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-02
    Type: Initial release
  • Version 2.0: 2025-07-16
    Type: Coordinate replacement
    Reason: Ligand geometry
    Changes: Atomic model, Data collection, Structure summary
  • Version 2.1: 2025-11-12
    Changes: Data collection, Database references
