9KVF | pdb_00009kvf

Cryo-EM structure of SARS-CoV-2 EG.1 spike protein in complex with triple-nAb 4A5, 4C1 and 2E10


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9KVF

This is version 1.1 of the entry. See complete history

Literature

Broad neutralizing antibody response of a monomeric spike-based SARS-CoV-2 bivalent vaccine against diverse variants.

Wang, S.Sun, H.Wang, Y.Wang, Z.Yuan, L.Guo, H.Gao, J.Lan, M.Wu, Y.Shang, H.Chen, X.Chen, Z.Hu, J.Tang, Z.Wen, G.Ying, D.Liu, C.Jiang, Y.Su, J.Lin, M.Wu, T.Li, S.Zhang, T.Zhang, J.Guan, Y.Xia, N.Yuan, Q.Zheng, Q.Zhang, Y.Zheng, Z.

(2025) Proc Natl Acad Sci U S A 122: e2503254122-e2503254122

  • DOI: https://doi.org/10.1073/pnas.2503254122
  • Primary Citation Related Structures:
    9KVD, 9KVE, 9KVF

  • PubMed Abstract:

    severeacute respiratory syndrome coronavirus 2 (SARS-CoV-2) bivalent vaccines show potential against variants but lack a full understanding of the immunological mechanisms that drive broadly neutralizing antibodies (bnAbs). This study explored the immunogenicity of a bivalent vaccine in rhesus macaques, containing spike (S) proteins from the prototype (S prototype ) and chimeric S protein (S 1628x ). The vaccine induced bnAbs against multiple variants, including challenging subvariants like EG.1, BA.2.86, and JN.1. The monomeric S protein exposed less accessible regions within the receptor-binding domain (RBD) "inner face" and "NTD face" and subdomains 1, eliciting a diverse array of bnAbs against various Omicron subvariants. Notably, antibodies targeting the conserved RBD inner face, such as 4A5, showed potent neutralization across all tested variants. Structural analyses provide insights into the broad protectiveness of these vaccine-elicited nAbs. This study underscores the potential of bivalent vaccines with monomeric spike proteins to confer broad-spectrum immunity, offering a promising direction for future SARS-CoV-2 universal vaccine design.


  • Organizational Affiliation
    • State Key Laboratory of Vaccines for Infectious Diseases, Xiang An Biomedicine Laboratory, School of Life Sciences, School of Public Health, Xiamen University, Xiamen 361102, China.

Macromolecule Content

  • Total Structure Weight: 107.79 kDa
  • Atom Count: 6,805
  • Modeled Residue Count: 955
  • Deposited Residue Count: 984
  • Unique protein chains: 7

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

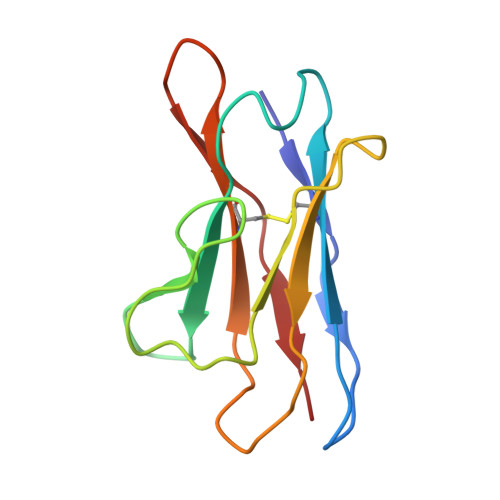

2E10 light chain110Macaca mulattaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

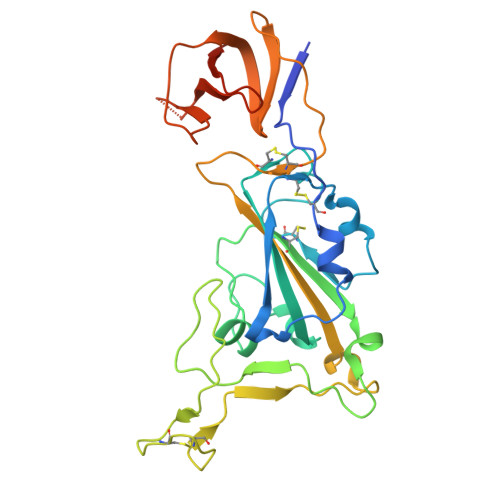

Spike protein S1B [auth G]284Severe acute respiratory syndrome coronavirus 2Mutation(s): 22
Gene Names: S2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2)
Explore P0DTC2
Go to UniProtKB:  P0DTC2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0DTC2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

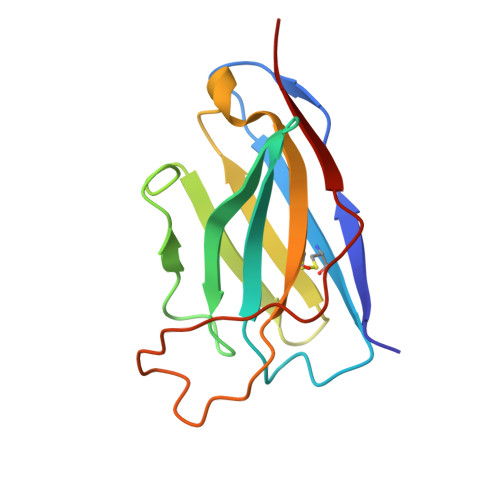

4C1 heavy chainC [auth F]128Macaca mulattaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

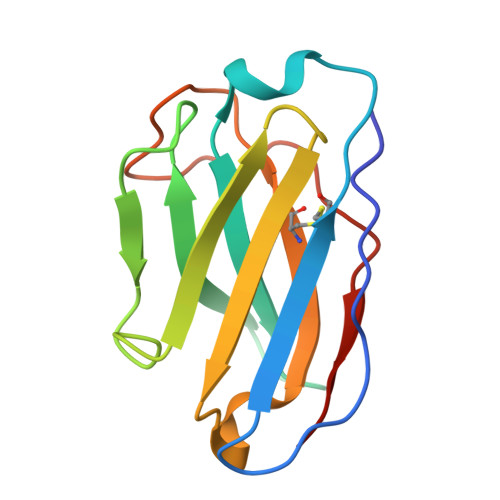

4C1 light chainD [auth E]110Macaca mulattaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
2E10 heavy chainE [auth B]122Macaca mulattaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage
4A5 heavy chainF [auth C]123Macaca mulattaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage

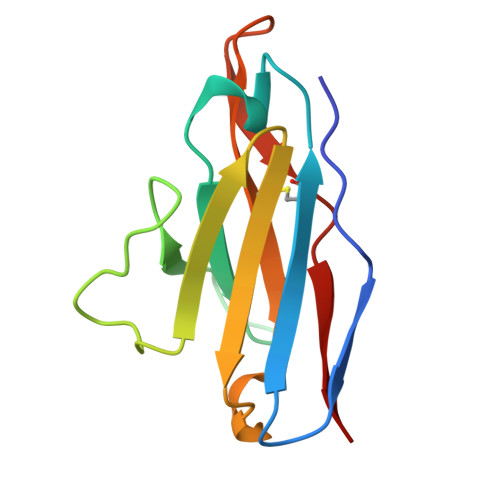

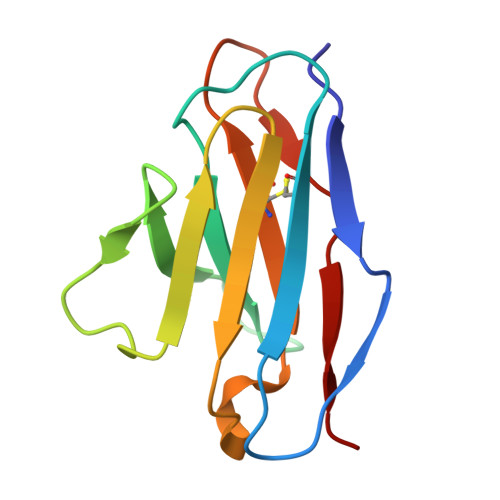

4A5 light chainG [auth D]107Macaca mulattaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-20
    Type: Initial release
  • Version 1.1: 2026-09-02
    Changes: Data collection, Database references
