9K8N | pdb_00009k8n

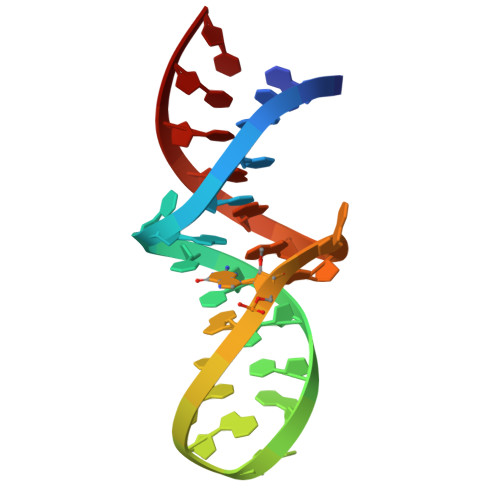

Solution structure of a short zinc-dependent DNAzyme minGAA

PDB DOI: https://doi.org/10.2210/pdb9K8N/pdb
NAKB: 9K8N

Classification: DNA-RNA HYBRID
Organism(s): synthetic construct
Mutation(s): No

Deposited: 2024-10-24 Released: 2025-10-29
Deposition Author(s): Yamasaki, K., Yamasaki, T., Takeuchi, K.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: SOLUTION NMR
Conformers Calculated: 100
Conformers Submitted: 20
Selection Criteria: structures with the least restraint violations

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

A minimal Zn2+-dependent RNA-cleaving DNAzyme and its B-DNA-like crystal and solution structures

Yamasaki, K., Inomata, R., Yamasaki, T., Kubota, T., Miyashita, N., Takeuchi, K., Miyagishi, M.

To be published.

Macromolecule Content

Total Structure Weight: 8.16 kDa
Atom Count: 539
Modeled Residue Count: 26
Deposited Residue Count: 26
Unique hybrid chains: 1

Macromolecules

Find similar nucleic acids by: | 3D Structure

Entity ID: 1
Molecule	Chains	Length	Organism	Image
DNAzyme minGAA	A	26	synthetic construct
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZN (Subject of Investigation/LOI) Query on ZN Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: SOLUTION NMR
Conformers Calculated: 100
Conformers Submitted: 20
Selection Criteria: structures with the least restraint violations

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-10-29

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-10-29
Type: Initial release
