9HL2 | pdb_00009hl2

Structure of A56/K2 (vaccinia virus)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.80 Å
  • R-Value Free:
    0.287 (Depositor), 0.287 (DCC)
  • R-Value Work:
    0.233 (Depositor), 0.233 (DCC)
  • R-Value Observed:
    0.236 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Structural basis of poxvirus fusion regulation and anti-A16/G9 antibody-mediated neutralization and protection.

Meola, A.Vernuccio, R.Battini, L.Albericio, G.Delgado, P.Bamford, R.Pokorny, L.Broutin, M.Martinez Leon, A.Gallien, S.Gil, M.Noriega, M.A.Guivel-Benhassine, F.Porrot, F.Postal, J.Buchrieser, J.Hubert, M.Haouz, A.Lafaye, P.Esteban, M.Hub, J.S.Mahevas, M.Chappert, P.Mercer, J.Garcia-Arriaza, J.Schwartz, O.Guardado-Calvo, P.

(2025) Cell 188: 6266

  • DOI: https://doi.org/10.1016/j.cell.2025.07.040
  • Primary Citation of Related Structures:
    9HBK, 9HL2, 9HLS, 9HNG, 9HPA, 9R09, 9R0B, 9R0J, 9RDH

  • PubMed Abstract:

    Monkeypox virus (MPXV) is a poxvirus endemic to Central and West Africa with high epidemic potential. Poxviruses enter host cells via a conserved entry-fusion complex (EFC), which mediates viral fusion to the cell membrane. The EFC is a promising therapeutic target, but the absence of structural data has limited the development of fusion-inhibiting treatments. Here, we investigated A16/G9, a subcomplex of the EFC that controls fusion timing. Using cryo-electron microscopy, we showed how A16/G9 interacts with A56/K2, a viral fusion suppressor that prevents superinfection. Immunization with A16/G9 elicited a protective immune response in mice. Using X-ray crystallography, we characterized two neutralizing antibodies and engineered a chimeric antibody that cross-neutralizes several poxviruses more efficiently than 7D11, the most potent antibody targeting the EFC described to date. These findings highlight the potential of A16/G9 as a candidate for subunit vaccines and identify regions of the EFC as targets for antiviral development.


  • Organizational Affiliation
    • Structural biology of infectious diseases G5+ unit, Institut Pasteur, Université Paris Cité, Paris, France.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Superinfection exclusion protein413Vaccinia virus Western ReserveMutation(s): 0
Gene Names: OPG040K2LSPI-3VACWR033
UniProt
Find proteins for P18384 (Vaccinia virus (strain Western Reserve))
Explore P18384
Go to UniProtKB:  P18384
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP18384
Glycosylation
Glycosylation Sites: 1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

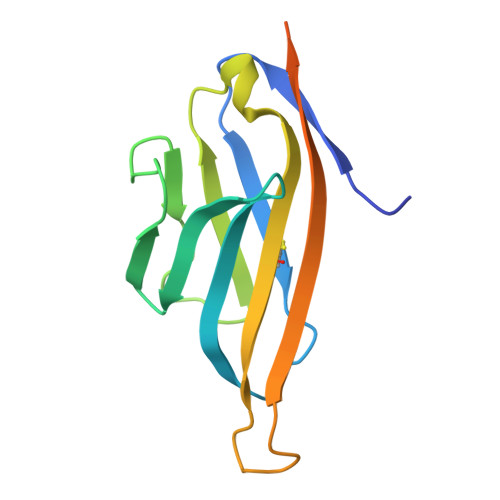

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Protein OPG185139Vaccinia virus Western ReserveMutation(s): 0
Gene Names: OPG185HAVACWR181A56R
UniProt
Find proteins for Q01218 (Vaccinia virus (strain Western Reserve))
Explore Q01218
Go to UniProtKB:  Q01218
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ01218
Glycosylation
Glycosylation Sites: 1
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 3
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose
C
2N-Glycosylation
Glycosylation Resources
GlyTouCan:  G79924RM
GlyCosmos:  G79924RM
GlyGen:  G79924RM
Entity ID: 4
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
D
2N-Glycosylation
Glycosylation Resources
GlyTouCan:  G42666HT
GlyCosmos:  G42666HT
GlyGen:  G42666HT
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.80 Å
  • R-Value Free:  0.287 (Depositor), 0.287 (DCC)
  • R-Value Work:  0.233 (Depositor), 0.233 (DCC)
  • R-Value Observed: 0.236 (Depositor)
Space Group: P 41 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 74.372α = 90
b = 74.372β = 90
c = 216.33γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Agence Nationale de la Recherche (ANR)FranceANR-22-CE11-0003

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-03
    Type: Initial release
  • Version 1.1: 2025-09-10
    Changes: Database references
  • Version 1.2: 2025-11-12
    Changes: Database references
