9H90 | pdb_00009h90

Cryo-EM structure of the Vibrio natrigens 30S ribosomal subunit in complex with spectinomycin.


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.80 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

The structure of the Vibrio natriegens 70S ribosome in complex with the proline-rich antimicrobial peptide Bac5(1-17).

Raulf, K.Koller, T.O.Beckert, B.Lepak, A.Morici, M.Mardirossian, M.Scocchi, M.Bange, G.Wilson, D.N.

(2025) Nucleic Acids Res 53

  • DOI: https://doi.org/10.1093/nar/gkaf324
  • Primary Citation of Related Structures:
    9H90, 9H91

  • PubMed Abstract:

    Proline-rich antimicrobial peptides (PrAMPs) are produced as part of the innate immune response of animals, insects, and plants. The well-characterized mammalian PrAMP bactenecin-5 (Bac5) has been shown to help fight bacterial infection by binding to the bacterial ribosome and inhibiting protein synthesis. In the absence of Bac5-ribosome structures, the binding mode of Bac5 and exact mechanism of action has remained unclear. Here, we present a cryo-electron microscopy structure of Bac5 in complex with the 70S ribosome from the Gram-negative marine bacterium Vibrio natriegens. The structure shows that, despite sequence similarity to Bac7 and other type I PrAMPs, Bac5 displays a completely distinct mode of interaction with the ribosomal exit tunnel. Bac5 overlaps with the binding site of both A- and P-site transfer RNAs bound at the peptidyltransferase center, suggesting that this type I PrAMP can interfere with late stages of translation initiation as well as early stages of elongation. Collectively, our study presents a ribosome structure from V. natriegens, a fast-growing bacterium that has interesting biotechnological and synthetic biology applications, as well as providing additional insights into the diverse binding modes that type I PrAMPs can utilize to inhibit protein synthesis.


  • Organizational Affiliation
    • Institute for Biochemistry and Molecular Biology, University of Hamburg, Hamburg 20146, Germany.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

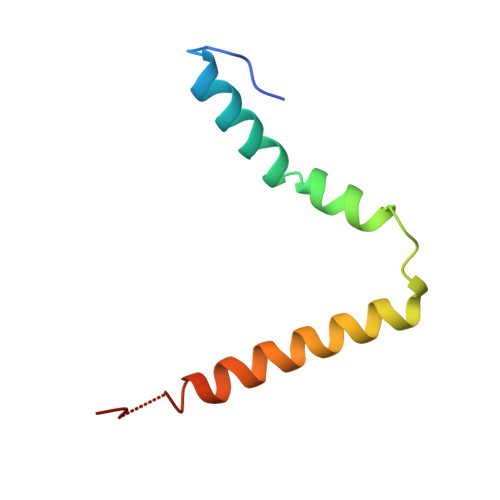

30S ribosomal protein S21A [auth u]71Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CUP2 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CUP2
Go to UniProtKB:  A0AAN1CUP2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CUP2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S3B [auth C]232Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y138 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y138
Go to UniProtKB:  A0AAN0Y138
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y138
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

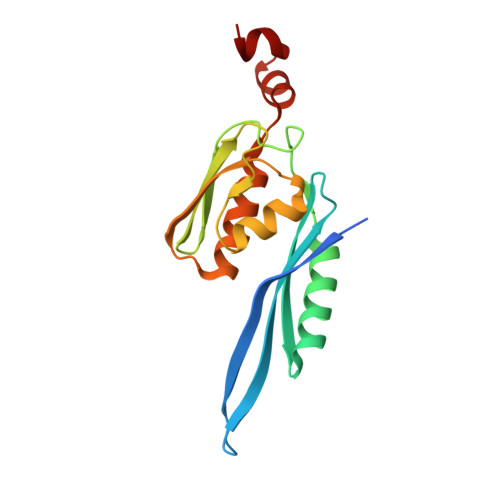

Small ribosomal subunit protein uS7C [auth G]156Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y3T9 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y3T9
Go to UniProtKB:  A0AAN0Y3T9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y3T9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

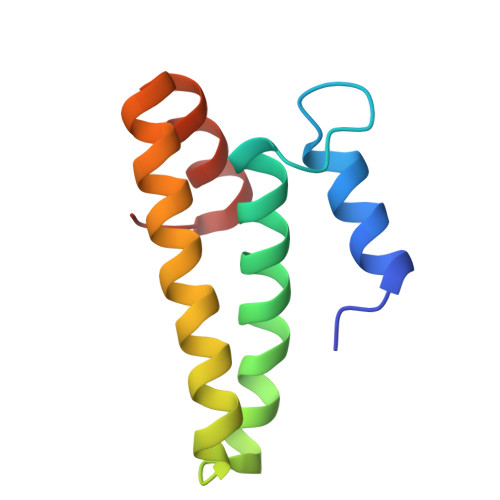

30S ribosomal protein S15D [auth o]89Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y3D6 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y3D6
Go to UniProtKB:  A0AAN0Y3D6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y3D6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S8E [auth h]130Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y0S4 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y0S4
Go to UniProtKB:  A0AAN0Y0S4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y0S4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

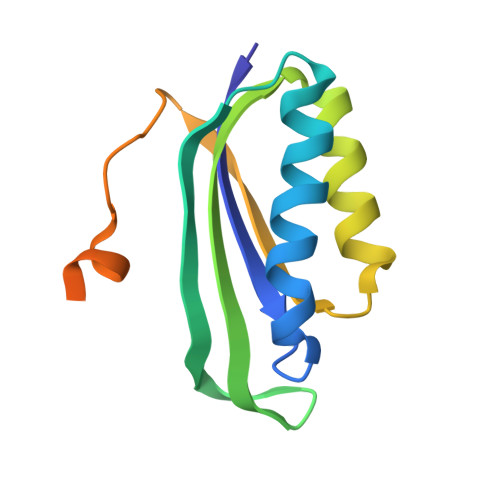

30S ribosomal protein S6F [auth f]129Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y4F0 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y4F0
Go to UniProtKB:  A0AAN0Y4F0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y4F0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S5G [auth e]167Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CUS4 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CUS4
Go to UniProtKB:  A0AAN1CUS4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CUS4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S4H [auth d]206Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0XZY8 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0XZY8
Go to UniProtKB:  A0AAN0XZY8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0XZY8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S9130Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y103 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y103
Go to UniProtKB:  A0AAN0Y103
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y103
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S20K [auth t]86Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN1CUQ1 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN1CUQ1
Go to UniProtKB:  A0AAN1CUQ1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN1CUQ1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage

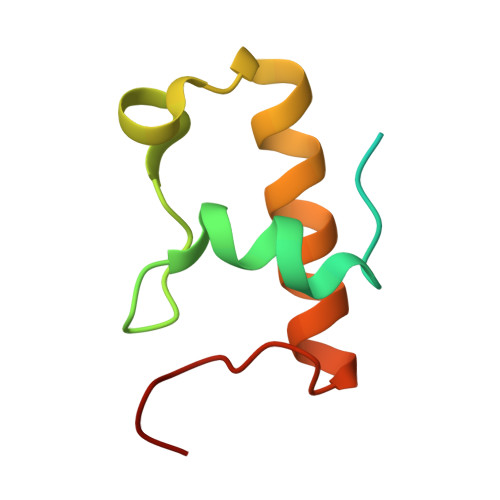

30S ribosomal protein S18L [auth r]75Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y440 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y440
Go to UniProtKB:  A0AAN0Y440
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y440
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage

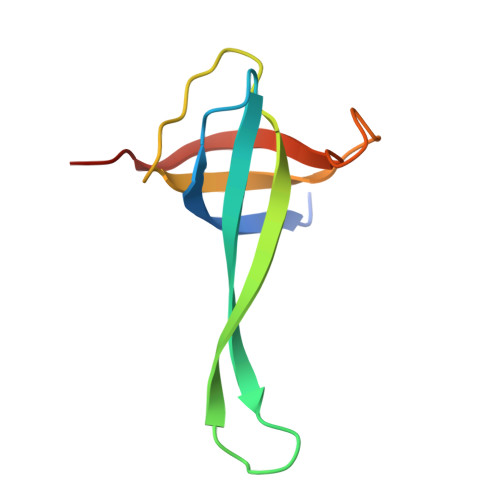

30S ribosomal protein S17M [auth q]84Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0XZY2 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0XZY2
Go to UniProtKB:  A0AAN0XZY2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0XZY2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S16N [auth p]82Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y460 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y460
Go to UniProtKB:  A0AAN0Y460
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y460
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 15
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S12O [auth l]124Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y4G9 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y4G9
Go to UniProtKB:  A0AAN0Y4G9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y4G9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 16
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S11P [auth k]129Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y004 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y004
Go to UniProtKB:  A0AAN0Y004
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y004
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 17
MoleculeChains Sequence LengthOrganismDetailsImage

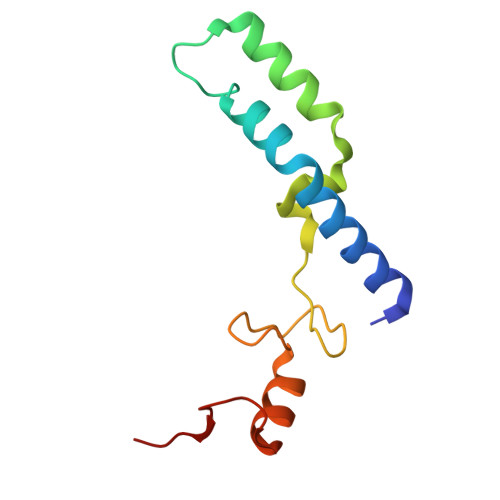

30S ribosomal protein S14Q [auth D]101Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y0L1 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y0L1
Go to UniProtKB:  A0AAN0Y0L1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y0L1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 18
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S10R [auth J]103Vibrio natriegensMutation(s): 0
UniProt
Find proteins for A0AAN0Y0R4 (Vibrio natriegens NBRC 15636 = ATCC 14048 = DSM 759)
Explore A0AAN0Y0R4
Go to UniProtKB:  A0AAN0Y0R4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAN0Y0R4
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains LengthOrganismImage

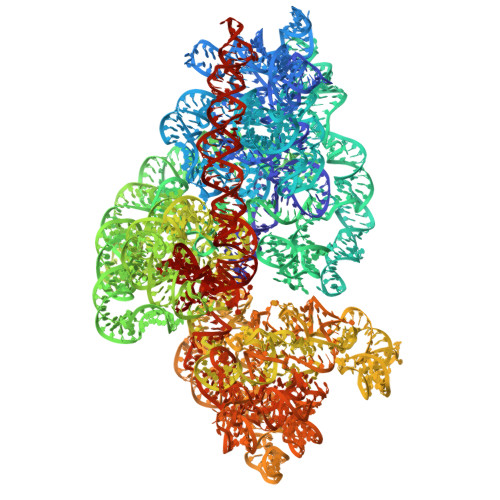

16S ribosomal RNAJ [auth a]1,544Vibrio natriegens
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
SCM (Subject of Investigation/LOI)
Query on SCM

Download Ideal Coordinates CCD File
S [auth a]SPECTINOMYCIN
C14 H24 N2 O7
UNFWWIHTNXNPBV-WXKVUWSESA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.80 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTREFMAC5.8.0425

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other governmentDLR01Kl1820
German Research Foundation (DFG)GermanySPP1879 (DFG WI3285/5-2)

Revision History  (Full details and data files)

  • Version 1.0: 2025-05-21
    Type: Initial release
