9H85 | pdb_00009h85

BAM-hinge (GSGS)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.20 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Molecular insights into how the motions of the beta-barrel and POTRA domains of BamA are coupled for efficient function.

Csoma, N.Machin, J.M.Whitehouse, J.M.Rodriguez-Alonso, R.Olejnik, M.Cahill, A.K.Cho, S.H.Schaberle, T.F.Iorga, B.I.Ranson, N.A.Radford, S.E.Calabrese, A.N.Collet, J.F.

(2025) Nat Commun 16: 8832-8832

  • DOI: https://doi.org/10.1038/s41467-025-63897-y
  • Primary Citation of Related Structures:
    9H84, 9H85, 9H89

  • PubMed Abstract:

    The β-barrel assembly machinery (BAM) inserts β-barrel proteins into the outer membrane of Gram-negative bacteria, forming an essential permeability barrier. The core BAM component, BamA, is a β-barrel protein with an N-terminal periplasmic extension comprising five polypeptide transport-associated (POTRA) domains. Whilst BamA's structure is well characterised, it remains unclear how β-barrel and POTRA domain motions are coordinated. Using BamA variants with mutations in the hinge region between these two domains, we demonstrate that hinge flexibility is required for BAM function. Cryo-electron microscopy suggests that hinge rigidity impairs function by structurally decoupling these domains. A screen for spontaneous suppressors identified a mutation at position T434 in an extracellular loop of BamA, which has been previously shown to suppress BAM defects. Studying this variant provides insights into its function as a general rescue mechanism. Our findings underscore how BamA's sequence has been evolutionarily optimised for efficient function.


  • Organizational Affiliation
    • WELBIO Department, WEL Research Institute, Wavre, Belgium.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

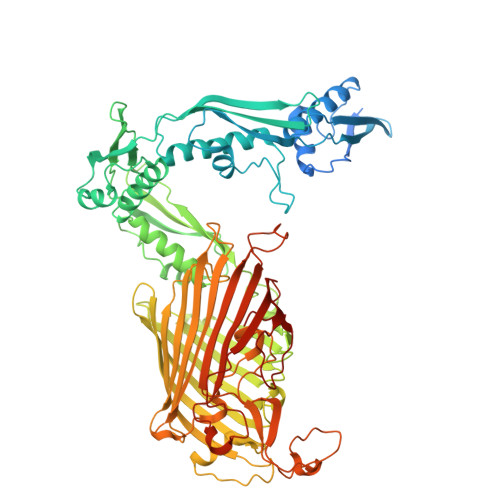

Outer membrane protein assembly factor BamA794Escherichia coliMutation(s): 0
Gene Names: bamAyaeTyzzNyzzYb0177JW0172
Membrane Entity: Yes
UniProt
Find proteins for P0A940 (Escherichia coli (strain K12))
Explore P0A940
Go to UniProtKB:  P0A940
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A940
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

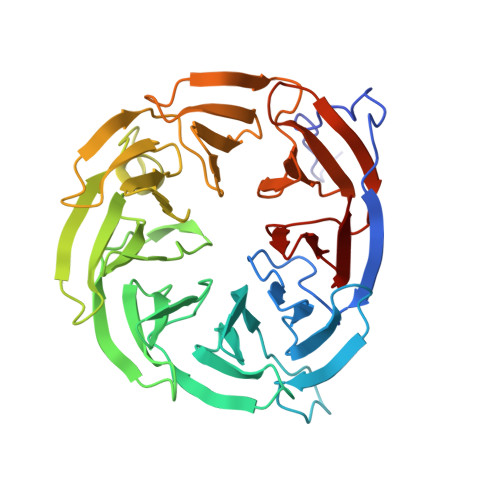

Outer membrane protein assembly factor BamB373Escherichia coliMutation(s): 0
Gene Names: bamByfgLb2512JW2496
Membrane Entity: Yes
UniProt
Find proteins for P77774 (Escherichia coli (strain K12))
Explore P77774
Go to UniProtKB:  P77774
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP77774
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

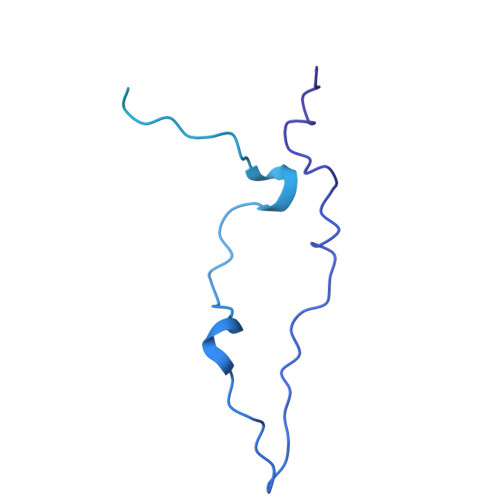

Outer membrane protein assembly factor BamC320Escherichia coliMutation(s): 0
Gene Names: bamC
Membrane Entity: Yes
UniProt
Find proteins for P0A903 (Escherichia coli (strain K12))
Explore P0A903
Go to UniProtKB:  P0A903
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A903
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Outer membrane protein assembly factor BamD226Escherichia coliMutation(s): 0
Gene Names: bamDyfiOb2595JW2577
Membrane Entity: Yes
UniProt
Find proteins for P0AC02 (Escherichia coli (strain K12))
Explore P0AC02
Go to UniProtKB:  P0AC02
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AC02
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

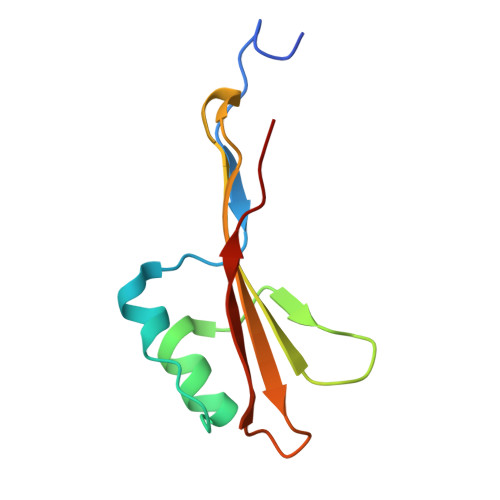

Outer membrane protein assembly factor BamE94Escherichia coliMutation(s): 0
Gene Names: bamEsmpAb2617JW2598
Membrane Entity: Yes
UniProt
Find proteins for P0A937 (Escherichia coli (strain K12))
Explore P0A937
Go to UniProtKB:  P0A937
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A937
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.20 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Wellcome TrustUnited Kingdom222373/Z/21/Z
Medical Research Council (MRC, United Kingdom)United KingdomMR/Y012453/1

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-22
    Type: Initial release
