9H66 | pdb_00009h66

Steroidal Selective Modulators of FXR with Therapeutic Potential


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free:
    0.312 (Depositor), 0.307 (DCC)
  • R-Value Work:
    0.259 (Depositor), 0.259 (DCC)
  • R-Value Observed:
    0.262 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Structural Basis of Novel Bile Acid-Based Modulators of FXR.

Kydd-Sinclair, D.Packer, G.L.Weymouth-Wilson, A.C.Watson, K.A.

(2025) J Mol Biology 437: 169383-169383

  • DOI: https://doi.org/10.1016/j.jmb.2025.169383
  • Primary Citation of Related Structures:
    9H65, 9H66

  • PubMed Abstract:

    Following its deorphanisation in the early 2000s, the farnesoid X receptor (FXR) attracted significant attention for regulating genes involved in bile acid, lipid and glucose metabolism and inflammation, pathways central to many liver diseases. As such, pharmaceutical efforts targeted FXR for their treatment. However, while FXR agonists, such as obeticholic acid, have been studied in clinical trials, many were associated with adverse effects arising from the promiscuity of systemic FXR activation, thus efforts to limit or selectively modulate the downstream effects of FXR are crucially important. In work here, two novel bile acid derivatives, previously identified via molecular docking and cell-based screening, were validated by X-ray crystallography and tested in LanthaScreen coactivator recruitment assays. Their effects on downstream FXR signalling were assessed in vitro in hepatocellular carcinoma cells, and in vivo in C57BL/6 mice, by RNA sequencing and RT-qPCR. The novel compounds exhibited potent and selective FXR agonist activity. Co-crystal structures of FXR LBD with both compounds, demonstrated distinctive binding modes for each, including occupancy of a receptor sub-pocket associated with allosteric activation, not observed with classic bile acids. Both compounds were up to four-fold more potent than obeticholic acid and demonstrated ligand-dependent differences in coactivator recruitment assays. In vitro, both compounds induced greater changes in the expression of FXR target genes, at lower doses than obeticholic acid. In vivo, compound-dependent differential gene expression was observed. These findings suggest that the novel compounds may enable gene-specific FXR regulation through differential coactivator usage and hold potential to overcome the shortcomings of current bile acid drugs, thus representing promising candidates for further research.


  • Organizational Affiliation
    • School of Biological Sciences, Health and Life Sciences Building, Whiteknights Campus, University of Reading, Reading, Berkshire RG6 6EX, UK. Electronic address: dannielle.kydd-sinclair@reading.ac.uk.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

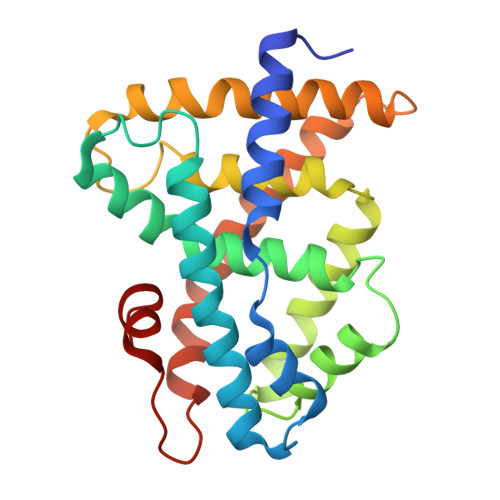

Bile acid receptor
A, B, C, D
233Homo sapiensMutation(s): 2
Gene Names: NR1H4BARFXRHRR1RIP14
UniProt & NIH Common Fund Data Resources
Find proteins for Q96RI1 (Homo sapiens)
Explore Q96RI1
Go to UniProtKB:  Q96RI1
PHAROS:  Q96RI1
GTEx:  ENSG00000012504
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96RI1
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

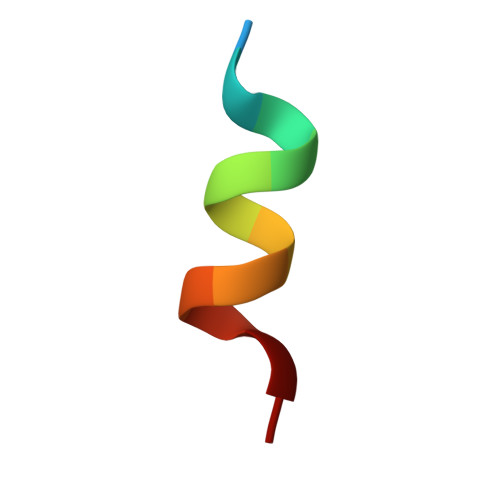

Nuclear receptor coactivator 2
E, F, G, H, I
E, F, G, H, I, J
13Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q15596 (Homo sapiens)
Explore Q15596
Go to UniProtKB:  Q15596
PHAROS:  Q15596
GTEx:  ENSG00000140396
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15596
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
R3U (Subject of Investigation/LOI)
Query on R3U

Download Ideal Coordinates CCD File
K [auth A],
L [auth B],
M [auth C],
N [auth D]
(4~{R})-4-[(3~{R},4~{R},5~{S},6~{R},7~{R},8~{S},9~{S},10~{R},13~{R},14~{R},17~{R})-6-ethyl-4-fluoranyl-10,13-dimethyl-3,7-bis(oxidanyl)-2,3,4,5,6,7,8,9,11,12,14,15,16,17-tetradecahydro-1~{H}-cyclopenta[a]phenanthren-17-yl]-~{N}-[4-(trifluoromethyloxy)phenyl]sulfonyl-pentanamide
C33 H47 F4 N O6 S
ZGYUTSLXPGLWLX-KRYZBPAKSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free:  0.312 (Depositor), 0.307 (DCC)
  • R-Value Work:  0.259 (Depositor), 0.259 (DCC)
  • R-Value Observed: 0.262 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 69.58α = 90
b = 101.214β = 90.106
c = 104.809γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
xia2data reduction
xia2data scaling
Cootmodel building
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other private--

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-10
    Type: Initial release
  • Version 1.1: 2025-09-17
    Changes: Database references
