9GAJ | pdb_00009gaj

X-ray structure of HCA(II)/aromatic foldamer complex

PDB DOI: https://doi.org/10.2210/pdb9GAJ/pdb

Classification: PROTEIN BINDING
Organism(s): Homo sapiens, synthetic construct
Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
Mutation(s): No

Deposited: 2024-07-29 Released: 2025-08-06
Deposition Author(s): Wang, L., Langlois d'Estaintot, B., Fischer, L., Huc, I.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.64 Å
R-Value Free:
0.211 (Depositor), 0.200 (DCC)
R-Value Work:
0.184 (Depositor)
R-Value Observed:
0.184 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9GAJ

This is version 1.0 of the entry. See complete history.

Literature

X-ray structure of HCA(II)/aromatic foldamer complex

Wang, L., Langlois d'Estaintot, B., Fischer, L., Huc, I.

To be published.

Macromolecule Content

Total Structure Weight: 32.6 kDa
Atom Count: 2,591
Modeled Residue Count: 275
Deposited Residue Count: 276
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Carbonic anhydrase 2	A	260	Homo sapiens	Mutation(s): 0 Gene Names: CA2 EC: 4.2.1.1 (PDB Primary Data), 4.2.1.69 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P00918 (Homo sapiens) Explore P00918 Go to UniProtKB: P00918
PHAROS: P00918 GTEx: ENSG00000104267
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P00918
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

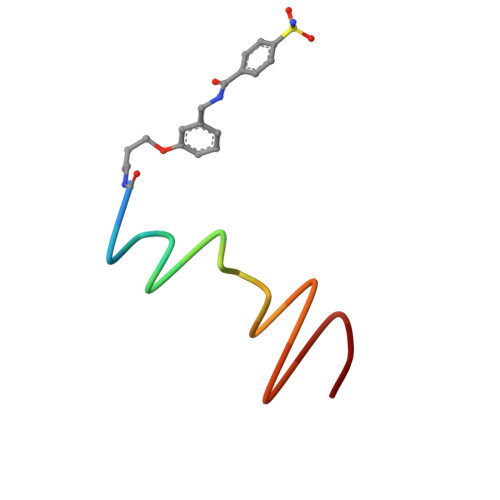

Aromatic foldamer	B	16	synthetic construct	Mutation(s): 0

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
ZN Query on ZN Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.64 Å
R-Value Free: 0.211 (Depositor), 0.200 (DCC)
R-Value Work: 0.184 (Depositor)
R-Value Observed: 0.184 (Depositor)

Space Group: P 2₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 78.512	α = 90
b = 81.515	β = 90
c = 45.893	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
pointless	data scaling
XDS	data reduction
PHASER	phasing
PDB_EXTRACT	data extraction

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-08-06

Deposition Author(s):

Langlois d'Estaintot, B.

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-08-06
Type: Initial release
