9DYP | pdb_00009dyp

Crystal Structure of Rubisco from Methanococcoides burtonii

PDB DOI: https://doi.org/10.2210/pdb9DYP/pdb

Classification: LIGASE
Organism(s): Methanococcoides burtonii
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-10-14 Released: 2025-11-19
Deposition Author(s): Pereira, J.H., Liu, A.K., Shih, P.M., Adams, P.D.
Funding Organization(s): Department of Energy (DOE, United States)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.50 Å
R-Value Free:
0.186 (Depositor), 0.184 (DCC)
R-Value Work:
0.162 (Depositor), 0.162 (DCC)
R-Value Observed:
0.162 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9DYP

This is version 1.0 of the entry. See complete history.

Literature

Ligand-mediated emergence of higher-order protein complexity

Liu, A.K., Kaeser, B., Pereira, J.H., Taylor-Kearney, L.J., Hammel, M., Nogales, N., Adams, P.D., Shih, P.M.

To be published.

Macromolecule Content

Total Structure Weight: 210.02 kDa
Atom Count: 16,009
Modeled Residue Count: 1,847
Deposited Residue Count: 1,872
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

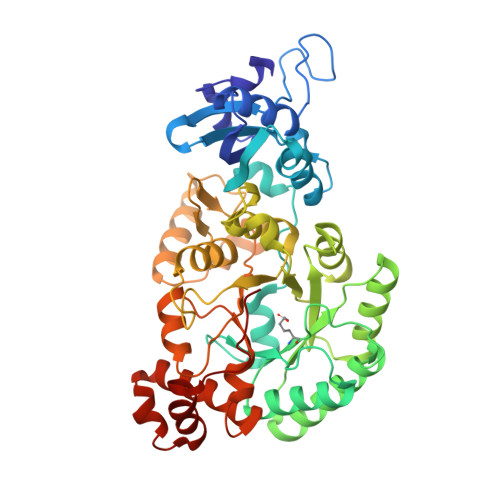

ribulose-1,5-bisphosphate carboxylase	A, B, C, D	468	Methanococcoides burtonii	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth B] SDF format, chain G [auth C] SDF format, chain H [auth D] MOL2 format, chain E [auth A] MOL2 format, chain F [auth B] MOL2 format, chain G [auth C] MOL2 format, chain H [auth D] mmCIF format, chain E [auth A] mmCIF format, chain F [auth B] mmCIF format, chain G [auth C] mmCIF format, chain H [auth D]	E [auth A], F [auth B], G [auth C], H [auth D]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain F [auth B] Focus chain G [auth C] Focus chain H [auth D] Interactions & Density Focus chain E [auth A] Focus chain F [auth B] Focus chain G [auth C] Focus chain H [auth D]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
KCX Query on KCX	A, B, C, D	L-PEPTIDE LINKING	C₇ H₁₄ N₂ O₄		LYS

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.50 Å
R-Value Free: 0.186 (Depositor), 0.184 (DCC)
R-Value Work: 0.162 (Depositor), 0.162 (DCC)
R-Value Observed: 0.162 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 86.033	α = 90
b = 102.823	β = 90.137
c = 97.732	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
xia2	data reduction
xia2	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-11-19

Deposition Author(s):

Funding Organization	Location	Grant Number
Department of Energy (DOE, United States)	United States	--

Revision History (Full details and data files)

Version 1.0: 2025-11-19
Type: Initial release
