9AYQ | pdb_00009ayq

SMARCA2 in complex with a pyridine-2-one-based inhibitor

PDB DOI: https://doi.org/10.2210/pdb9AYQ/pdb

Classification: DNA BINDING PROTEIN
Organism(s): Homo sapiens
Expression System: Baculovirus expression vector pFastBac1-HM
Mutation(s): No

Deposited: 2024-03-08 Released: 2025-04-09
Deposition Author(s): Farrow, N.A., Cocozaki, A.
Funding Organization(s): Other private

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.90 Å
R-Value Free:
0.287 (Depositor), 0.287 (DCC)
R-Value Work:
0.232 (Depositor), 0.237 (DCC)
R-Value Observed:
0.234 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 9AYQ

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Discovery of a SMARCA2/4 ATPase Inhibitors Suitable for Use in SMARCA4-mutant Preclinical Models

Alford, J., Farrow, N.A.

To be published.

Macromolecule Content

Total Structure Weight: 163.42 kDa
Atom Count: 9,634
Modeled Residue Count: 1,152
Deposited Residue Count: 1,386
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

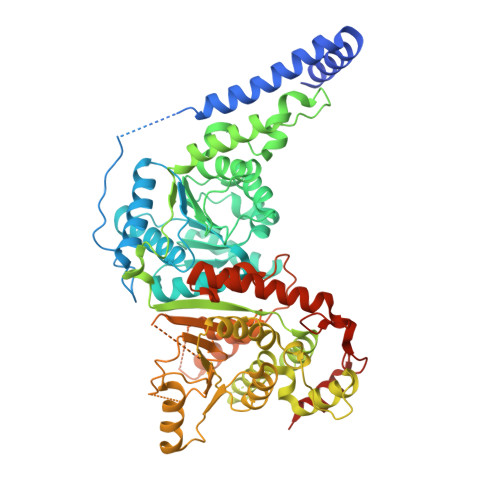

Probable global transcription activator SNF2L2	A, B	693	Homo sapiens	Mutation(s): 0 Gene Names: SMARCA2, BAF190B, BRM, SNF2A, SNF2L2 EC: 3.6.4
UniProt & NIH Common Fund Data Resources
Find proteins for P51531 (Homo sapiens) Explore P51531 Go to UniProtKB: P51531
PHAROS: P51531 GTEx: ENSG00000080503
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P51531
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ADP Query on ADP Download:Ideal Coordinates CCD File SDF format, chain E [auth B] SDF format, chain C [auth A] MOL2 format, chain E [auth B] MOL2 format, chain C [auth A] mmCIF format, chain E [auth B] mmCIF format, chain C [auth A]	C [auth A], E [auth B]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain C [auth A] Focus chain E [auth B] Interactions & Density Focus chain C [auth A] Focus chain E [auth B]
A1AHQ (Subject of Investigation/LOI) Query on A1AHQ Download:Ideal Coordinates CCD File SDF format, chain F [auth B] SDF format, chain D [auth A] MOL2 format, chain F [auth B] MOL2 format, chain D [auth A] mmCIF format, chain F [auth B] mmCIF format, chain D [auth A]	D [auth A], F [auth B]	4-cyano-N-[1-(2,2-difluoroethyl)-5-fluoro-6-oxo-1,6-dihydropyridin-3-yl]-5-(trifluoromethyl)thiophene-2-carboxamide C₁₄ H₇ F₆ N₃ O₂ S BBVUKPZENMWLFA-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain F [auth B] Interactions & Density Focus chain D [auth A] Focus chain F [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.90 Å
R-Value Free: 0.287 (Depositor), 0.287 (DCC)
R-Value Work: 0.232 (Depositor), 0.237 (DCC)
R-Value Observed: 0.234 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 100.106	α = 90
b = 63.967	β = 102.18
c = 126.575	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
Aimless	data scaling
XDS	data reduction

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-04-09

Deposition Author(s):

Funding Organization	Location	Grant Number
Other private	United States	--

Revision History (Full details and data files)

Version 1.0: 2025-04-09
Type: Initial release
