8Z6S | pdb_00008z6s

Structure of XBB.1.16 S trimer with 2 down-RBDs complex with antibody CYFN1006-1.

• PDB DOI: https://doi.org/10.2210/pdb8Z6S/pdb
• EM Map EMD-39803: EMDB EMDataResource

• Classification: VIRAL PROTEIN/IMMUNE SYSTEM
• Organism(s): Homo sapiens, Severe acute respiratory syndrome coronavirus 2, Tequatrovirus T4, synthetic construct
• Expression System: Homo sapiens
• Mutation(s): Yes


• Deposited: 2024-04-19 Released: 2025-02-12
• Deposition Author(s): Wang, Y.J., Sun, L.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.84 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Structure of XBB.1.16 S trimer with 2 down-RBDs complex with antibody CYFN1006-1.

Wang, Y.J., Sun, L.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 9-mer - A3B3C3

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 647.74 kDa
• Atom Count: 35,014
• Modeled Residue Count: 4,512
• Deposited Residue Count: 5,895
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

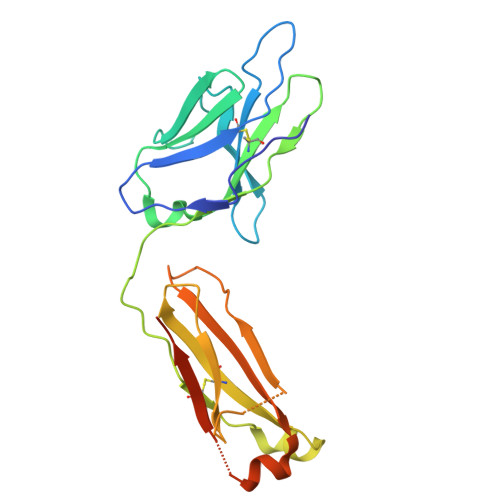

CYFN1006-1 light chain	A [auth D], C [auth F], E [auth H]	215	Homo sapiens	Mutation(s): 0

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

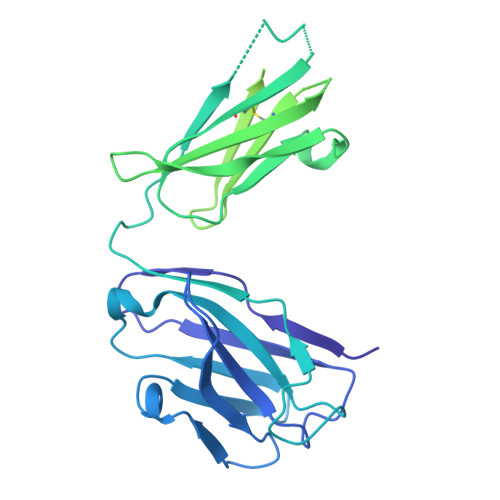

CYFN1006-1 heavy chain	B [auth E], D [auth G], F [auth I]	451	Homo sapiens	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

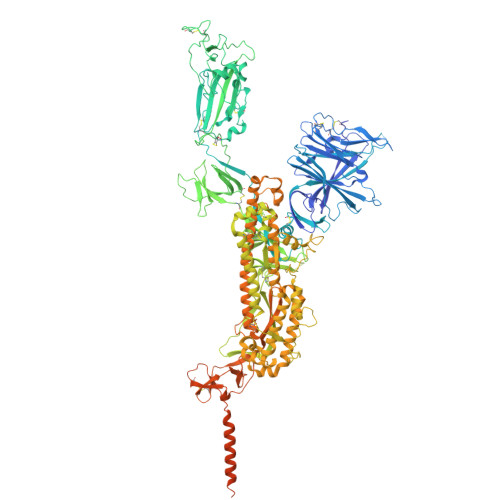

Spike glycoprotein,Fibritin,Expression Tag	G [auth C], H [auth B], I [auth A]	1,299	Severe acute respiratory syndrome coronavirus 2, Tequatrovirus T4, synthetic construct This entity is chimeric	Mutation(s): 39  Gene Names: S, 2, wac
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2  Go to UniProtKB:  P0DTC2
Find proteins for P10104 (Enterobacteria phage T4) Explore P10104  Go to UniProtKB:  P10104
UniProt Groups	P0DTC2P10104

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.84 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-02-12
Deposition Author(s): Wang, Y.J., Sun, L.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2025-02-12
  Type: Initial release
