8VV4 | pdb_00008vv4

E. coli 70S ribosome with unmodified Lys-tRNAPro(GGG) in the P/P conformation on a slippery CCC-C codon

PDB DOI: https://doi.org/10.2210/pdb8VV4/pdb
EM Map EMD-43549: EMDB EMDataResource
NAKB: 8VV4

Classification: RIBOSOME
Organism(s): Escherichia coli
Mutation(s): No

Deposited: 2024-01-30 Released: 2025-07-30
Deposition Author(s): Kimbrough, E.M., Dunham, C.M., Nguyen, H.A.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), National Science Foundation (NSF, United States)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.40 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

The influence of EF-P on mRNA reading frame maintenance

Kimbrough, E.M., Nguyen, H.A., Li, H., Gamper, H., Hou, Y.M., Gonzalez, R.L., Dunham, C.M.

To be published.

Macromolecule Content

Total Structure Weight: 2,180.27 kDa
Atom Count: 143,506
Modeled Residue Count: 10,265
Deposited Residue Count: 10,570
Unique protein chains: 49
Unique nucleic acid chains: 5

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

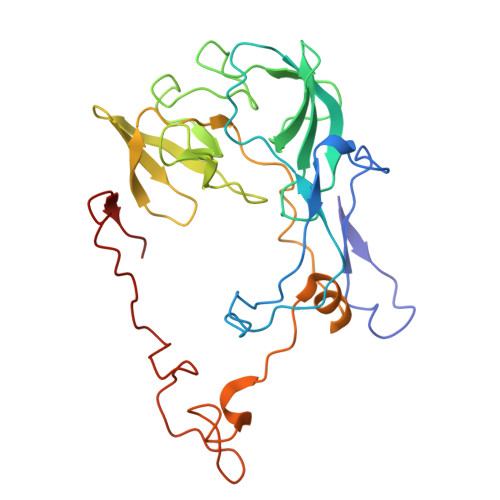

50S ribosomal protein L2	F [auth B]	273	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P60422 (Escherichia coli (strain K12)) Explore P60422 Go to UniProtKB: P60422
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P60422
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L3	G [auth C]	209	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P60438 (Escherichia coli (strain K12)) Explore P60438 Go to UniProtKB: P60438
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P60438
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L4	H [auth D]	201	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A1AGK6 (Escherichia coli O1:K1 / APEC) Explore A1AGK6 Go to UniProtKB: A1AGK6
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A1AGK6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

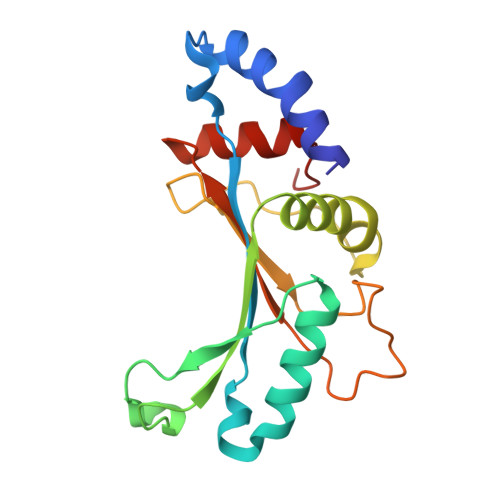

50S ribosomal protein L5	I [auth E]	179	Escherichia coli	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image

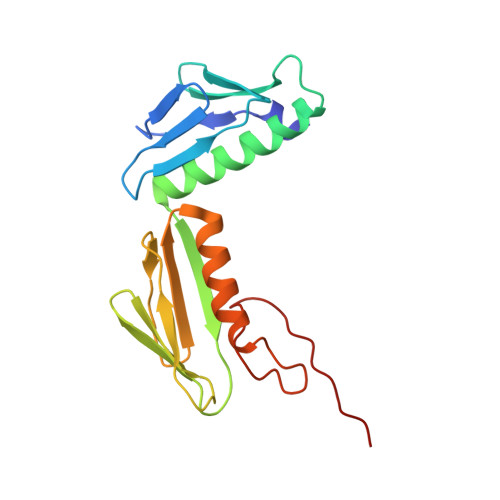

50S ribosomal protein L6	J [auth F]	177	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SR17 (Escherichia coli) Explore C3SR17 Go to UniProtKB: C3SR17
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3SR17
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image

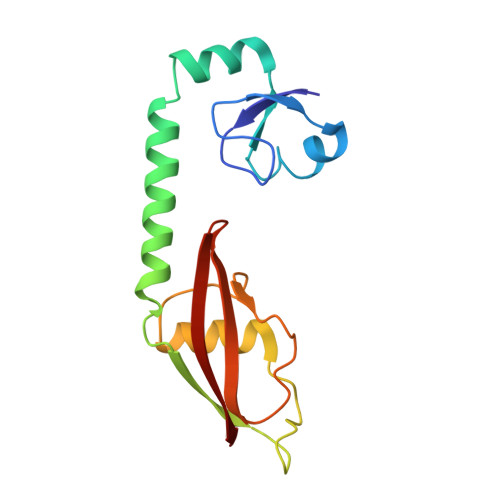

Large ribosomal subunit protein bL9	K [auth G]	149	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SFP2 (Escherichia coli) Explore C3SFP2 Go to UniProtKB: C3SFP2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3SFP2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image

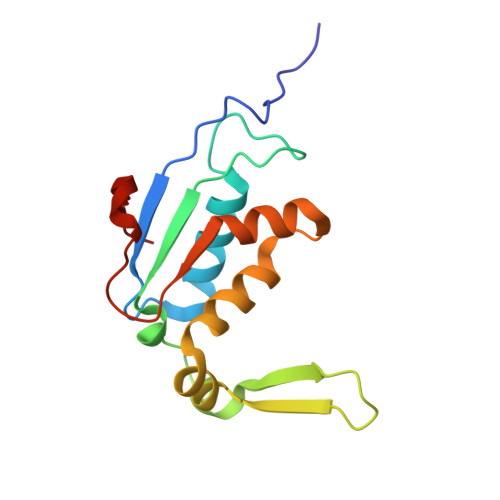

50S ribosomal protein L13	L [auth J]	142	Escherichia coli	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L14	M [auth K]	123	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for S1NW45 (Escherichia coli KTE182) Explore S1NW45 Go to UniProtKB: S1NW45
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	S1NW45
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L15	N [auth L]	144	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A037Y8L6 (Escherichia coli) Explore A0A037Y8L6 Go to UniProtKB: A0A037Y8L6
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A037Y8L6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image

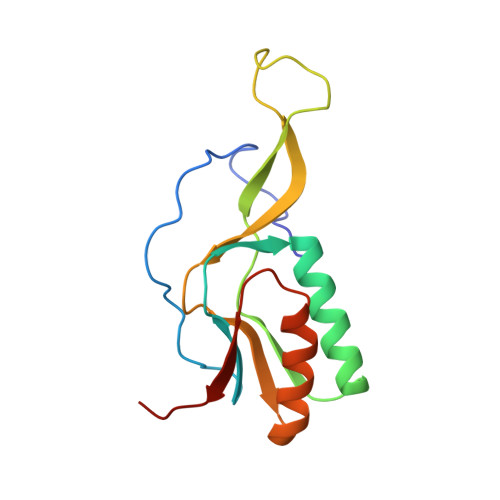

50S ribosomal protein L16	O [auth M]	136	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0ADY7 (Escherichia coli (strain K12)) Explore P0ADY7 Go to UniProtKB: P0ADY7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0ADY7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL17	P [auth N]	127	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SR72 (Escherichia coli) Explore C3SR72 Go to UniProtKB: C3SR72
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3SR72
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image

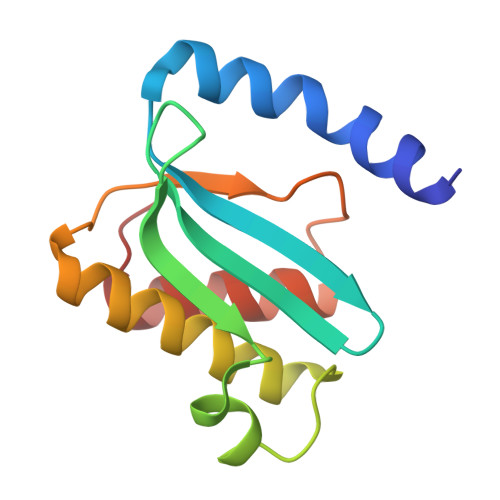

50S ribosomal protein L18	Q [auth O]	117	Escherichia coli	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L19	R [auth P]	115	Escherichia coli	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image

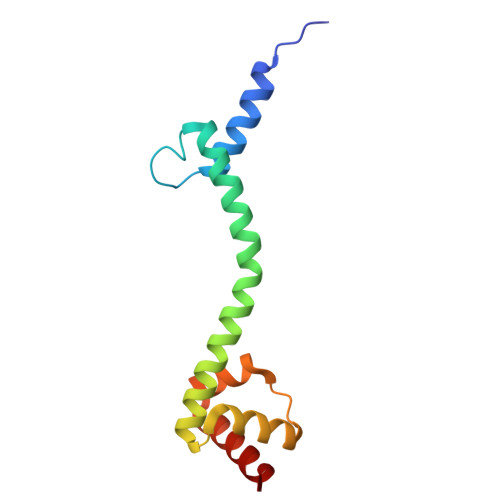

50S ribosomal protein L20	S [auth Q]	118	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for B7MAS6 (Escherichia coli O45:K1 (strain S88 / ExPEC)) Explore B7MAS6 Go to UniProtKB: B7MAS6
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	B7MAS6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image
Ribosomal protein L21	T [auth R]	103	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SSG2 (Escherichia coli) Explore C3SSG2 Go to UniProtKB: C3SSG2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3SSG2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 21
Molecule	Chains	Sequence Length	Organism	Details	Image

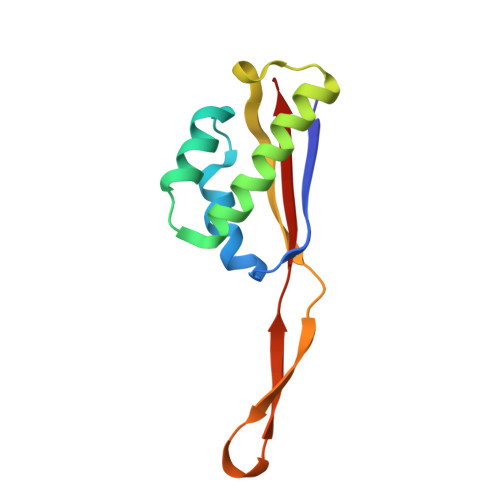

50S ribosomal protein L22	U [auth S]	110	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P61175 (Escherichia coli (strain K12)) Explore P61175 Go to UniProtKB: P61175
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P61175
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 22
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L23	V [auth T]	100	Escherichia coli	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 23
Molecule	Chains	Sequence Length	Organism	Details	Image

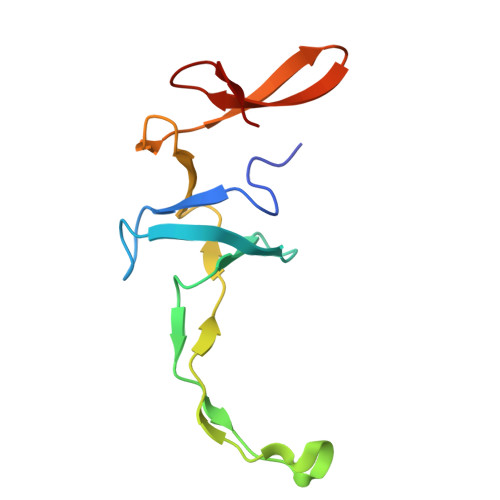

50S ribosomal protein L24	W [auth U]	104	Escherichia coli	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 24
Molecule	Chains	Sequence Length	Organism	Details	Image

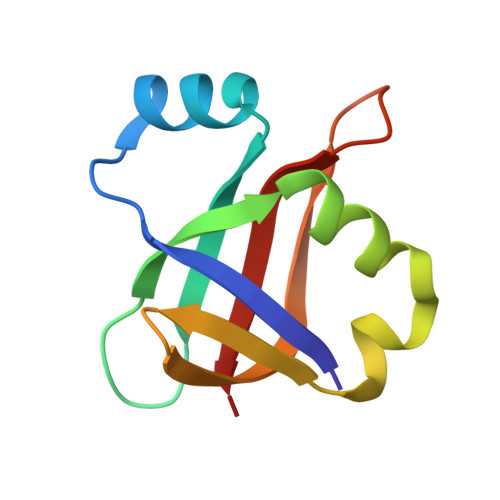

50S ribosomal protein L25	X [auth V]	94	Escherichia coli	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 25
Molecule	Chains	Sequence Length	Organism	Details	Image

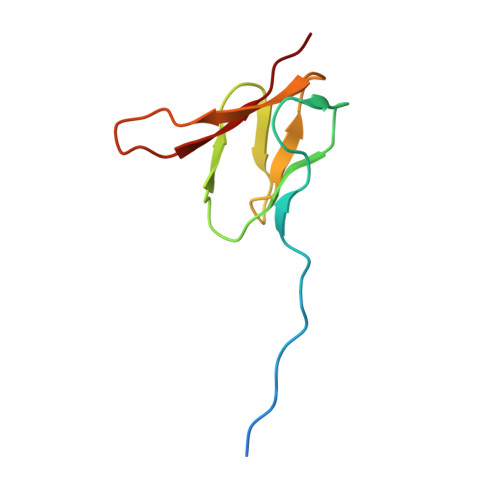

Large ribosomal subunit protein bL27	Y [auth W]	84	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SSG7 (Escherichia coli) Explore C3SSG7 Go to UniProtKB: C3SSG7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3SSG7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 26
Molecule	Chains	Sequence Length	Organism	Details	Image

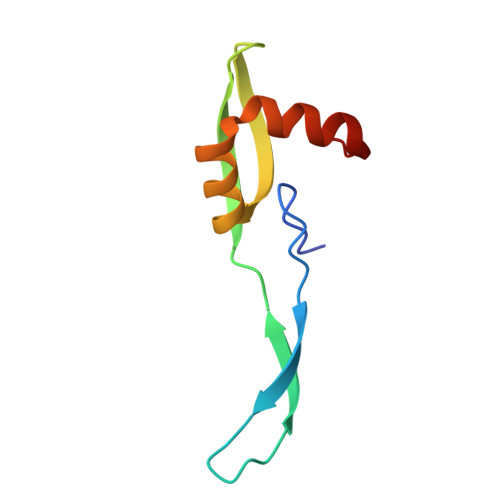

50S ribosomal protein L28	Z [auth X]	78	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A1X3JA73 (Escherichia coli H386) Explore A0A1X3JA73 Go to UniProtKB: A0A1X3JA73
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A1X3JA73
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 27
Molecule	Chains	Sequence Length	Organism	Details	Image

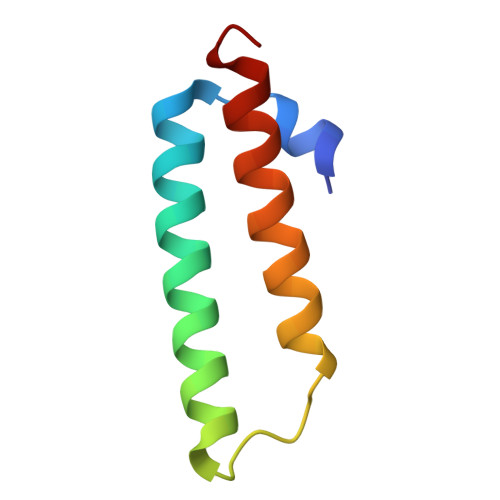

50S ribosomal protein L29	AA [auth Y]	63	Escherichia coli	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 28
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL30	BA [auth Z]	59	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SR32 (Escherichia coli) Explore C3SR32 Go to UniProtKB: C3SR32
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3SR32
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 29
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L31	CA [auth a]	70	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0A7M9 (Escherichia coli (strain K12)) Explore P0A7M9 Go to UniProtKB: P0A7M9
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0A7M9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 30
Molecule	Chains	Sequence Length	Organism	Details	Image

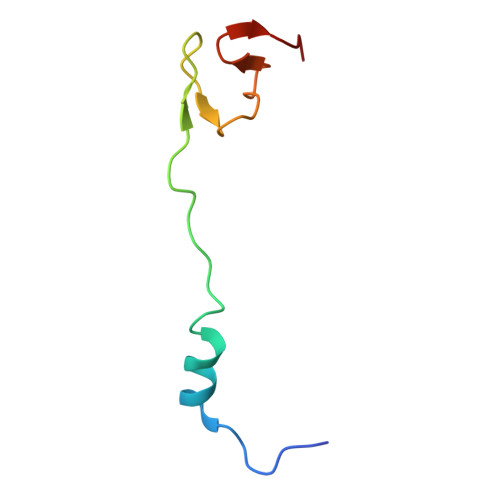

50S ribosomal protein L32	DA [auth b]	57	Escherichia coli	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 31
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein bL33	EA [auth c]	55	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SME7 (Escherichia coli) Explore C3SME7 Go to UniProtKB: C3SME7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3SME7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 32
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L34	FA [auth d]	46	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for B7MGC4 (Escherichia coli O45:K1 (strain S88 / ExPEC)) Explore B7MGC4 Go to UniProtKB: B7MGC4
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	B7MGC4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 33
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L35	GA [auth e]	65	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0A7Q1 (Escherichia coli (strain K12)) Explore P0A7Q1 Go to UniProtKB: P0A7Q1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0A7Q1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 34
Molecule	Chains	Sequence Length	Organism	Details	Image
50S ribosomal protein L36	HA [auth f]	38	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A0E2L017 (Escherichia coli (strain UMEA 3162-1)) Explore A0A0E2L017 Go to UniProtKB: A0A0E2L017
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A0E2L017
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 35
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S2	IA [auth g]	241	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3TPN2 (Escherichia coli) Explore C3TPN2 Go to UniProtKB: C3TPN2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3TPN2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 36
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S3	JA [auth h]	233	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for B7MCS9 (Escherichia coli O45:K1 (strain S88 / ExPEC)) Explore B7MCS9 Go to UniProtKB: B7MCS9
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	B7MCS9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 37
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S4	KA [auth i]	206	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0A7V8 (Escherichia coli (strain K12)) Explore P0A7V8 Go to UniProtKB: P0A7V8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0A7V8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 38
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S5	LA [auth j]	167	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P0A7W1 (Escherichia coli (strain K12)) Explore P0A7W1 Go to UniProtKB: P0A7W1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0A7W1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 39
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S6	MA [auth k]	135	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P02358 (Escherichia coli (strain K12)) Explore P02358 Go to UniProtKB: P02358
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P02358
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 40
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S7	NA [auth l]	179	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for P02359 (Escherichia coli (strain K12)) Explore P02359 Go to UniProtKB: P02359
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P02359
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 41
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S8	OA [auth m]	130	Escherichia coli	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 42
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS9	PA [auth n]	130	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SRY2 (Escherichia coli) Explore C3SRY2 Go to UniProtKB: C3SRY2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3SRY2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 43
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S10	QA [auth o]	103	Escherichia coli	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 44
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S11	RA [auth p]	129	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for B7MCR3 (Escherichia coli O45:K1 (strain S88 / ExPEC)) Explore B7MCR3 Go to UniProtKB: B7MCR3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	B7MCR3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 45
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS12	SA [auth q]	124	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SQR7 (Escherichia coli) Explore C3SQR7 Go to UniProtKB: C3SQR7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3SQR7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 46
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S13	TA [auth r]	118	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A7U9IV78 (Escherichia coli HVH 36) Explore A0A7U9IV78 Go to UniProtKB: A0A7U9IV78
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A7U9IV78
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 47
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS14	UA [auth s]	101	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A2X1PQW4 (Escherichia coli) Explore A0A2X1PQW4 Go to UniProtKB: A0A2X1PQW4
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A2X1PQW4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 48
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS15	VA [auth t]	89	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SSQ7 (Escherichia coli) Explore C3SSQ7 Go to UniProtKB: C3SSQ7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3SSQ7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 49
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S16	WA [auth u]	82	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SYP2 (Escherichia coli) Explore C3SYP2 Go to UniProtKB: C3SYP2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3SYP2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 50
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS17	XA [auth v]	84	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3SQY7 (Escherichia coli) Explore C3SQY7 Go to UniProtKB: C3SQY7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3SQY7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 51
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S18	YA [auth w]	75	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A0E2KXL3 (Escherichia coli (strain UMEA 3162-1)) Explore A0A0E2KXL3 Go to UniProtKB: A0A0E2KXL3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A0E2KXL3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 52
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S19	ZA [auth x]	92	Escherichia coli	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 53
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S20	AB [auth y]	87	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for C3TRH7 (Escherichia coli) Explore C3TRH7 Go to UniProtKB: C3TRH7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C3TRH7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 54
Molecule	Chains	Sequence Length	Organism	Details	Image
30S ribosomal protein S21	BB [auth z]	71	Escherichia coli	Mutation(s): 0
UniProt
Find proteins for A0A0E2L2J1 (Escherichia coli (strain UMEA 3162-1)) Explore A0A0E2L2J1 Go to UniProtKB: A0A0E2L2J1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A0E2L2J1
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Length	Organism	Image
23S ribosomal RNA	A [auth 1]	2,903	Escherichia coli
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Length	Organism	Image
16S ribosomal RNA	B [auth 2]	1,540	Escherichia coli
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Length	Organism	Image
5S ribosomal RNA	C [auth 3]	120	Escherichia coli
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence | 3D Structure

Entity ID: 4
Molecule	Chains	Length	Organism	Image
mRNA	D [auth 4]	18	Escherichia coli
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Length	Organism	Image
tRNA^ProL (GGG)	E [auth 5]	77	Escherichia coli
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
LYS Query on LYS Download Ideal Coordinates CCD File SDF format, chain TQ [auth 5] MOL2 format, chain TQ [auth 5] mmCIF format, chain TQ [auth 5]	TQ [auth 5]	LYSINE C₆ H₁₅ N₂ O₂ KDXKERNSBIXSRK-YFKPBYRVSA-O		Interactions Focus chain TQ [auth 5] Interactions & Density Focus chain TQ [auth 5]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain AC [auth 1] SDF format, chain AD [auth 1] SDF format, chain AE [auth 1] SDF format, chain AF [auth 1] SDF format, chain AG [auth 1] SDF format, chain AH [auth 1] SDF format, chain AJ [auth 1] SDF format, chain AK [auth 1] SDF format, chain AL [auth 1] SDF format, chain AM [auth 1] SDF format, chain AN [auth 2] SDF format, chain AP [auth 2] SDF format, chain AQ [auth 2] SDF format, chain AR [auth P] SDF format, chain BC [auth 1] SDF format, chain BD [auth 1] SDF format, chain BE [auth 1] SDF format, chain BF [auth 1] SDF format, chain BG [auth 1] SDF format, chain BH [auth 1] SDF format, chain BJ [auth 1] SDF format, chain BK [auth 1] SDF format, chain BL [auth 1] SDF format, chain BM [auth 1] SDF format, chain BN [auth 2] SDF format, chain BO [auth 2] SDF format, chain BP [auth 2] SDF format, chain BQ [auth 2] SDF format, chain BR [auth Q] SDF format, chain CB [auth 1] SDF format, chain CC [auth 1] SDF format, chain CD [auth 1] SDF format, chain CE [auth 1] SDF format, chain CF [auth 1] SDF format, chain CG [auth 1] SDF format, chain CH [auth 1] SDF format, chain CI [auth 1] SDF format, chain CK [auth 1] SDF format, chain CM [auth 1] SDF format, chain CN [auth 2] SDF format, chain CO [auth 2] SDF format, chain CP [auth 2] SDF format, chain CQ [auth 2] SDF format, chain CR [auth R] SDF format, chain DB [auth 1] SDF format, chain DC [auth 1] SDF format, chain DD [auth 1] SDF format, chain DE [auth 1] SDF format, chain DF [auth 1] SDF format, chain DG [auth 1] SDF format, chain DH [auth 1] SDF format, chain DI [auth 1] SDF format, chain DJ [auth 1] SDF format, chain DK [auth 1] SDF format, chain DL [auth 1] SDF format, chain DM [auth 1] SDF format, chain DN [auth 2] SDF format, chain DO [auth 2] SDF format, chain DP [auth 2] SDF format, chain DQ [auth 2] SDF format, chain DR [auth T] SDF format, chain EB [auth 1] SDF format, chain EC [auth 1] SDF format, chain ED [auth 1] SDF format, chain EE [auth 1] SDF format, chain EF [auth 1] SDF format, chain EG [auth 1] SDF format, chain EH [auth 1] SDF format, chain EI [auth 1] SDF format, chain EJ [auth 1] SDF format, chain EK [auth 1] SDF format, chain EL [auth 1] SDF format, chain EM [auth 1] SDF format, chain EN [auth 2] SDF format, chain EO [auth 2] SDF format, chain EP [auth 2] SDF format, chain EQ [auth 2] SDF format, chain ER [auth X] SDF format, chain FB [auth 1] SDF format, chain FC [auth 1] SDF format, chain FD [auth 1] SDF format, chain FE [auth 1] SDF format, chain FF [auth 1] SDF format, chain FI [auth 1] SDF format, chain FJ [auth 1] SDF format, chain FK [auth 1] SDF format, chain FL [auth 1] SDF format, chain FM [auth 1] SDF format, chain FN [auth 2] SDF format, chain FO [auth 2] SDF format, chain FP [auth 2] SDF format, chain FQ [auth 2] SDF format, chain FR [auth Z] SDF format, chain GB [auth 1] SDF format, chain GC [auth 1] SDF format, chain GD [auth 1] SDF format, chain GE [auth 1] SDF format, chain GF [auth 1] SDF format, chain GG [auth 1] SDF format, chain GH [auth 1] SDF format, chain GI [auth 1] SDF format, chain GJ [auth 1] SDF format, chain GK [auth 1] SDF format, chain GL [auth 1] SDF format, chain GM [auth 1] SDF format, chain GN [auth 2] SDF format, chain GO [auth 2] SDF format, chain GP [auth 2] SDF format, chain GQ [auth 2] SDF format, chain GR [auth b] SDF format, chain HB [auth 1] SDF format, chain HC [auth 1] SDF format, chain HD [auth 1] SDF format, chain HF [auth 1] SDF format, chain HG [auth 1] SDF format, chain HH [auth 1] SDF format, chain HI [auth 1] SDF format, chain HJ [auth 1] SDF format, chain HK [auth 1] SDF format, chain HL [auth 1] SDF format, chain HM [auth 1] SDF format, chain HN [auth 2] SDF format, chain HO [auth 2] SDF format, chain HP [auth 2] SDF format, chain HQ [auth 2] SDF format, chain HR [auth e] SDF format, chain IB [auth 1] SDF format, chain IC [auth 1] SDF format, chain ID [auth 1] SDF format, chain IE [auth 1] SDF format, chain IF [auth 1] SDF format, chain IG [auth 1] SDF format, chain IH [auth 1] SDF format, chain II [auth 1] SDF format, chain IJ [auth 1] SDF format, chain IK [auth 1] SDF format, chain IL [auth 1] SDF format, chain IM [auth 1] SDF format, chain IN [auth 2] SDF format, chain IO [auth 2] SDF format, chain IP [auth 2] SDF format, chain IQ [auth 2] SDF format, chain IR [auth e] SDF format, chain JB [auth 1] SDF format, chain JC [auth 1] SDF format, chain JD [auth 1] SDF format, chain JE [auth 1] SDF format, chain JF [auth 1] SDF format, chain JH [auth 1] SDF format, chain JI [auth 1] SDF format, chain JJ [auth 1] SDF format, chain JL [auth 1] SDF format, chain JM [auth 1] SDF format, chain JN [auth 2] SDF format, chain JO [auth 2] SDF format, chain JP [auth 2] SDF format, chain JQ [auth 2] SDF format, chain JR [auth e] SDF format, chain KB [auth 1] SDF format, chain KC [auth 1] SDF format, chain KD [auth 1] SDF format, chain KE [auth 1] SDF format, chain KF [auth 1] SDF format, chain KG [auth 1] SDF format, chain KH [auth 1] SDF format, chain KI [auth 1] SDF format, chain KJ [auth 1] SDF format, chain KK [auth 1] SDF format, chain KL [auth 1] SDF format, chain KM [auth 1] SDF format, chain KN [auth 2] SDF format, chain KO [auth 2] SDF format, chain KP [auth 2] SDF format, chain KQ [auth 2] SDF format, chain KR [auth z] SDF format, chain LB [auth 1] SDF format, chain LC [auth 1] SDF format, chain LD [auth 1] SDF format, chain LE [auth 1] SDF format, chain LG [auth 1] SDF format, chain LH [auth 1] SDF format, chain LI [auth 1] SDF format, chain LJ [auth 1] SDF format, chain LK [auth 1] SDF format, chain LL [auth 1] SDF format, chain LM [auth 2] SDF format, chain LN [auth 2] SDF format, chain LP [auth 2] SDF format, chain LQ [auth 3] SDF format, chain MB [auth 1] SDF format, chain MC [auth 1] SDF format, chain MD [auth 1] SDF format, chain ME [auth 1] SDF format, chain MF [auth 1] SDF format, chain MH [auth 1] SDF format, chain MI [auth 1] SDF format, chain MJ [auth 1] SDF format, chain MK [auth 1] SDF format, chain ML [auth 1] SDF format, chain MM [auth 2] SDF format, chain MN [auth 2] SDF format, chain MO [auth 2] SDF format, chain MP [auth 2] SDF format, chain MQ [auth 3] SDF format, chain NB [auth 1] SDF format, chain NC [auth 1] SDF format, chain ND [auth 1] SDF format, chain NE [auth 1] SDF format, chain NF [auth 1] SDF format, chain NG [auth 1] SDF format, chain NH [auth 1] SDF format, chain NI [auth 1] SDF format, chain NJ [auth 1] SDF format, chain NK [auth 1] SDF format, chain NL [auth 1] SDF format, chain NM [auth 2] SDF format, chain NN [auth 2] SDF format, chain NO [auth 2] SDF format, chain NP [auth 2] SDF format, chain NQ [auth 3] SDF format, chain OB [auth 1] SDF format, chain OC [auth 1] SDF format, chain OD [auth 1] SDF format, chain OE [auth 1] SDF format, chain OF [auth 1] SDF format, chain OG [auth 1] SDF format, chain OH [auth 1] SDF format, chain OI [auth 1] SDF format, chain OJ [auth 1] SDF format, chain OK [auth 1] SDF format, chain OL [auth 1] SDF format, chain OM [auth 2] SDF format, chain ON [auth 2] SDF format, chain OO [auth 2] SDF format, chain OP [auth 2] SDF format, chain OQ [auth 3] SDF format, chain PC [auth 1] SDF format, chain PD [auth 1] SDF format, chain PE [auth 1] SDF format, chain PF [auth 1] SDF format, chain PG [auth 1] SDF format, chain PH [auth 1] SDF format, chain PI [auth 1] SDF format, chain PJ [auth 1] SDF format, chain PK [auth 1] SDF format, chain PL [auth 1] SDF format, chain PM [auth 2] SDF format, chain PO [auth 2] SDF format, chain PP [auth 2] SDF format, chain PQ [auth 3] SDF format, chain QB [auth 1] SDF format, chain QC [auth 1] SDF format, chain QD [auth 1] SDF format, chain QE [auth 1] SDF format, chain QF [auth 1] SDF format, chain QH [auth 1] SDF format, chain QI [auth 1] SDF format, chain QJ [auth 1] SDF format, chain QK [auth 1] SDF format, chain QL [auth 1] SDF format, chain QM [auth 2] SDF format, chain QN [auth 2] SDF format, chain QO [auth 2] SDF format, chain QP [auth 2] SDF format, chain QQ [auth 3] SDF format, chain RB [auth 1] SDF format, chain RC [auth 1] SDF format, chain RD [auth 1] SDF format, chain RE [auth 1] SDF format, chain RF [auth 1] SDF format, chain RG [auth 1] SDF format, chain RH [auth 1] SDF format, chain RI [auth 1] SDF format, chain RJ [auth 1] SDF format, chain RK [auth 1] SDF format, chain RL [auth 1] SDF format, chain RN [auth 2] SDF format, chain RO [auth 2] SDF format, chain RP [auth 2] SDF format, chain RQ [auth 3] SDF format, chain SB [auth 1] SDF format, chain SC [auth 1] SDF format, chain SD [auth 1] SDF format, chain SF [auth 1] SDF format, chain SG [auth 1] SDF format, chain SH [auth 1] SDF format, chain SI [auth 1] SDF format, chain SJ [auth 1] SDF format, chain SK [auth 1] SDF format, chain SM [auth 2] SDF format, chain SN [auth 2] SDF format, chain SO [auth 2] SDF format, chain SP [auth 2] SDF format, chain SQ [auth 3] SDF format, chain TC [auth 1] SDF format, chain TD [auth 1] SDF format, chain TE [auth 1] SDF format, chain TF [auth 1] SDF format, chain TG [auth 1] SDF format, chain TH [auth 1] SDF format, chain TI [auth 1] SDF format, chain TJ [auth 1] SDF format, chain TK [auth 1] SDF format, chain TL [auth 1] SDF format, chain TM [auth 2] SDF format, chain TN [auth 2] SDF format, chain TO [auth 2] SDF format, chain TP [auth 2] SDF format, chain UB [auth 1] SDF format, chain UC [auth 1] SDF format, chain UD [auth 1] SDF format, chain UE [auth 1] SDF format, chain UF [auth 1] SDF format, chain UG [auth 1] SDF format, chain UH [auth 1] SDF format, chain UI [auth 1] SDF format, chain UJ [auth 1] SDF format, chain UL [auth 1] SDF format, chain UM [auth 2] SDF format, chain UN [auth 2] SDF format, chain UO [auth 2] SDF format, chain UQ [auth B] SDF format, chain VB [auth 1] SDF format, chain VC [auth 1] SDF format, chain VE [auth 1] SDF format, chain VF [auth 1] SDF format, chain VI [auth 1] SDF format, chain VJ [auth 1] SDF format, chain VK [auth 1] SDF format, chain VL [auth 1] SDF format, chain VM [auth 2] SDF format, chain VN [auth 2] SDF format, chain VO [auth 2] SDF format, chain VQ [auth D] SDF format, chain WC [auth 1] SDF format, chain WD [auth 1] SDF format, chain WE [auth 1] SDF format, chain WF [auth 1] SDF format, chain WG [auth 1] SDF format, chain WH [auth 1] SDF format, chain WI [auth 1] SDF format, chain WJ [auth 1] SDF format, chain WK [auth 1] SDF format, chain WL [auth 1] SDF format, chain WM [auth 2] SDF format, chain WN [auth 2] SDF format, chain WO [auth 2] SDF format, chain WP [auth 2] SDF format, chain WQ [auth D] SDF format, chain XC [auth 1] SDF format, chain XD [auth 1] SDF format, chain XE [auth 1] SDF format, chain XF [auth 1] SDF format, chain XG [auth 1] SDF format, chain XH [auth 1] SDF format, chain XI [auth 1] SDF format, chain XJ [auth 1] SDF format, chain XK [auth 1] SDF format, chain XL [auth 1] SDF format, chain XM [auth 2] SDF format, chain XN [auth 2] SDF format, chain XO [auth 2] SDF format, chain XP [auth 2] SDF format, chain XQ [auth D] SDF format, chain YB [auth 1] SDF format, chain YC [auth 1] SDF format, chain YE [auth 1] SDF format, chain YF [auth 1] SDF format, chain YG [auth 1] SDF format, chain YH [auth 1] SDF format, chain YI [auth 1] SDF format, chain YJ [auth 1] SDF format, chain YK [auth 1] SDF format, chain YL [auth 1] SDF format, chain YM [auth 2] SDF format, chain YN [auth 2] SDF format, chain YO [auth 2] SDF format, chain YQ [auth D] SDF format, chain ZB [auth 1] SDF format, chain ZC [auth 1] SDF format, chain ZD [auth 1] SDF format, chain ZF [auth 1] SDF format, chain ZG [auth 1] SDF format, chain ZH [auth 1] SDF format, chain ZJ [auth 1] SDF format, chain ZK [auth 1] SDF format, chain ZL [auth 1] SDF format, chain ZM [auth 2] SDF format, chain ZN [auth 2] SDF format, chain ZO [auth 2] SDF format, chain ZP [auth 2] SDF format, chain ZQ [auth M] SDF format, chain ZI [auth 1] SDF format, chain ZE [auth 1] SDF format, chain YP [auth 2] SDF format, chain YD [auth 1] SDF format, chain XB [auth 1] SDF format, chain WB [auth 1] SDF format, chain VP [auth 2] SDF format, chain VH [auth 1] SDF format, chain VG [auth 1] SDF format, chain VD [auth 1] SDF format, chain UP [auth 2] SDF format, chain UK [auth 1] SDF format, chain TB [auth 1] SDF format, chain SL [auth 1] SDF format, chain SE [auth 1] SDF format, chain RM [auth 2] SDF format, chain QG [auth 1] SDF format, chain PN [auth 2] SDF format, chain PB [auth 1] SDF format, chain MG [auth 1] SDF format, chain LO [auth 2] SDF format, chain LF [auth 1] SDF format, chain JK [auth 1] SDF format, chain JG [auth 1] SDF format, chain HE [auth 1] SDF format, chain FH [auth 1] SDF format, chain FG [auth 1] SDF format, chain CL [auth 1] SDF format, chain CJ [auth 1] SDF format, chain BI [auth 1] SDF format, chain AO [auth 2] SDF format, chain AI [auth 1] MOL2 format, chain AC [auth 1] MOL2 format, chain AD [auth 1] MOL2 format, chain AE [auth 1] MOL2 format, chain AF [auth 1] MOL2 format, chain AG [auth 1] MOL2 format, chain AH [auth 1] MOL2 format, chain AJ [auth 1] MOL2 format, chain AK [auth 1] MOL2 format, chain AL [auth 1] MOL2 format, chain AM [auth 1] MOL2 format, chain AN [auth 2] MOL2 format, chain AP [auth 2] MOL2 format, chain AQ [auth 2] MOL2 format, chain AR [auth P] MOL2 format, chain BC [auth 1] MOL2 format, chain BD [auth 1] MOL2 format, chain BE [auth 1] MOL2 format, chain BF [auth 1] MOL2 format, chain BG [auth 1] MOL2 format, chain BH [auth 1] MOL2 format, chain BJ [auth 1] MOL2 format, chain BK [auth 1] MOL2 format, chain BL [auth 1] MOL2 format, chain BM [auth 1] MOL2 format, chain BN [auth 2] MOL2 format, chain BO [auth 2] MOL2 format, chain BP [auth 2] MOL2 format, chain BQ [auth 2] MOL2 format, chain BR [auth Q] MOL2 format, chain CB [auth 1] MOL2 format, chain CC [auth 1] MOL2 format, chain CD [auth 1] MOL2 format, chain CE [auth 1] MOL2 format, chain CF [auth 1] MOL2 format, chain CG [auth 1] MOL2 format, chain CH [auth 1] MOL2 format, chain CI [auth 1] MOL2 format, chain CK [auth 1] MOL2 format, chain CM [auth 1] MOL2 format, chain CN [auth 2] MOL2 format, chain CO [auth 2] MOL2 format, chain CP [auth 2] MOL2 format, chain CQ [auth 2] MOL2 format, chain CR [auth R] MOL2 format, chain DB [auth 1] MOL2 format, chain DC [auth 1] MOL2 format, chain DD [auth 1] MOL2 format, chain DE [auth 1] MOL2 format, chain DF [auth 1] MOL2 format, chain DG [auth 1] MOL2 format, chain DH [auth 1] MOL2 format, chain DI [auth 1] MOL2 format, chain DJ [auth 1] MOL2 format, chain DK [auth 1] MOL2 format, chain DL [auth 1] MOL2 format, chain DM [auth 1] MOL2 format, chain DN [auth 2] MOL2 format, chain DO [auth 2] MOL2 format, chain DP [auth 2] MOL2 format, chain DQ [auth 2] MOL2 format, chain DR [auth T] MOL2 format, chain EB [auth 1] MOL2 format, chain EC [auth 1] MOL2 format, chain ED [auth 1] MOL2 format, chain EE [auth 1] MOL2 format, chain EF [auth 1] MOL2 format, chain EG [auth 1] MOL2 format, chain EH [auth 1] MOL2 format, chain EI [auth 1] MOL2 format, chain EJ [auth 1] MOL2 format, chain EK [auth 1] MOL2 format, chain EL [auth 1] MOL2 format, chain EM [auth 1] MOL2 format, chain EN [auth 2] MOL2 format, chain EO [auth 2] MOL2 format, chain EP [auth 2] MOL2 format, chain EQ [auth 2] MOL2 format, chain ER [auth X] MOL2 format, chain FB [auth 1] MOL2 format, chain FC [auth 1] MOL2 format, chain FD [auth 1] MOL2 format, chain FE [auth 1] MOL2 format, chain FF [auth 1] MOL2 format, chain FI [auth 1] MOL2 format, chain FJ [auth 1] MOL2 format, chain FK [auth 1] MOL2 format, chain FL [auth 1] MOL2 format, chain FM [auth 1] MOL2 format, chain FN [auth 2] MOL2 format, chain FO [auth 2] MOL2 format, chain FP [auth 2] MOL2 format, chain FQ [auth 2] MOL2 format, chain FR [auth Z] MOL2 format, chain GB [auth 1] MOL2 format, chain GC [auth 1] MOL2 format, chain GD [auth 1] MOL2 format, chain GE [auth 1] MOL2 format, chain GF [auth 1] MOL2 format, chain GG [auth 1] MOL2 format, chain GH [auth 1] MOL2 format, chain GI [auth 1] MOL2 format, chain GJ [auth 1] MOL2 format, chain GK [auth 1] MOL2 format, chain GL [auth 1] MOL2 format, chain GM [auth 1] MOL2 format, chain GN [auth 2] MOL2 format, chain GO [auth 2] MOL2 format, chain GP [auth 2] MOL2 format, chain GQ [auth 2] MOL2 format, chain GR [auth b] MOL2 format, chain HB [auth 1] MOL2 format, chain HC [auth 1] MOL2 format, chain HD [auth 1] MOL2 format, chain HF [auth 1] MOL2 format, chain HG [auth 1] MOL2 format, chain HH [auth 1] MOL2 format, chain HI [auth 1] MOL2 format, chain HJ [auth 1] MOL2 format, chain HK [auth 1] MOL2 format, chain HL [auth 1] MOL2 format, chain HM [auth 1] MOL2 format, chain HN [auth 2] MOL2 format, chain HO [auth 2] MOL2 format, chain HP [auth 2] MOL2 format, chain HQ [auth 2] MOL2 format, chain HR [auth e] MOL2 format, chain IB [auth 1] MOL2 format, chain IC [auth 1] MOL2 format, chain ID [auth 1] MOL2 format, chain IE [auth 1] MOL2 format, chain IF [auth 1] MOL2 format, chain IG [auth 1] MOL2 format, chain IH [auth 1] MOL2 format, chain II [auth 1] MOL2 format, chain IJ [auth 1] MOL2 format, chain IK [auth 1] MOL2 format, chain IL [auth 1] MOL2 format, chain IM [auth 1] MOL2 format, chain IN [auth 2] MOL2 format, chain IO [auth 2] MOL2 format, chain IP [auth 2] MOL2 format, chain IQ [auth 2] MOL2 format, chain IR [auth e] MOL2 format, chain JB [auth 1] MOL2 format, chain JC [auth 1] MOL2 format, chain JD [auth 1] MOL2 format, chain JE [auth 1] MOL2 format, chain JF [auth 1] MOL2 format, chain JH [auth 1] MOL2 format, chain JI [auth 1] MOL2 format, chain JJ [auth 1] MOL2 format, chain JL [auth 1] MOL2 format, chain JM [auth 1] MOL2 format, chain JN [auth 2] MOL2 format, chain JO [auth 2] MOL2 format, chain JP [auth 2] MOL2 format, chain JQ [auth 2] MOL2 format, chain JR [auth e] MOL2 format, chain KB [auth 1] MOL2 format, chain KC [auth 1] MOL2 format, chain KD [auth 1] MOL2 format, chain KE [auth 1] MOL2 format, chain KF [auth 1] MOL2 format, chain KG [auth 1] MOL2 format, chain KH [auth 1] MOL2 format, chain KI [auth 1] MOL2 format, chain KJ [auth 1] MOL2 format, chain KK [auth 1] MOL2 format, chain KL [auth 1] MOL2 format, chain KM [auth 1] MOL2 format, chain KN [auth 2] MOL2 format, chain KO [auth 2] MOL2 format, chain KP [auth 2] MOL2 format, chain KQ [auth 2] MOL2 format, chain KR [auth z] MOL2 format, chain LB [auth 1] MOL2 format, chain LC [auth 1] MOL2 format, chain LD [auth 1] MOL2 format, chain LE [auth 1] MOL2 format, chain LG [auth 1] MOL2 format, chain LH [auth 1] MOL2 format, chain LI [auth 1] MOL2 format, chain LJ [auth 1] MOL2 format, chain LK [auth 1] MOL2 format, chain LL [auth 1] MOL2 format, chain LM [auth 2] MOL2 format, chain LN [auth 2] MOL2 format, chain LP [auth 2] MOL2 format, chain LQ [auth 3] MOL2 format, chain MB [auth 1] MOL2 format, chain MC [auth 1] MOL2 format, chain MD [auth 1] MOL2 format, chain ME [auth 1] MOL2 format, chain MF [auth 1] MOL2 format, chain MH [auth 1] MOL2 format, chain MI [auth 1] MOL2 format, chain MJ [auth 1] MOL2 format, chain MK [auth 1] MOL2 format, chain ML [auth 1] MOL2 format, chain MM [auth 2] MOL2 format, chain MN [auth 2] MOL2 format, chain MO [auth 2] MOL2 format, chain MP [auth 2] MOL2 format, chain MQ [auth 3] MOL2 format, chain NB [auth 1] MOL2 format, chain NC [auth 1] MOL2 format, chain ND [auth 1] MOL2 format, chain NE [auth 1] MOL2 format, chain NF [auth 1] MOL2 format, chain NG [auth 1] MOL2 format, chain NH [auth 1] MOL2 format, chain NI [auth 1] MOL2 format, chain NJ [auth 1] MOL2 format, chain NK [auth 1] MOL2 format, chain NL [auth 1] MOL2 format, chain NM [auth 2] MOL2 format, chain NN [auth 2] MOL2 format, chain NO [auth 2] MOL2 format, chain NP [auth 2] MOL2 format, chain NQ [auth 3] MOL2 format, chain OB [auth 1] MOL2 format, chain OC [auth 1] MOL2 format, chain OD [auth 1] MOL2 format, chain OE [auth 1] MOL2 format, chain OF [auth 1] MOL2 format, chain OG [auth 1] MOL2 format, chain OH [auth 1] MOL2 format, chain OI [auth 1] MOL2 format, chain OJ [auth 1] MOL2 format, chain OK [auth 1] MOL2 format, chain OL [auth 1] MOL2 format, chain OM [auth 2] MOL2 format, chain ON [auth 2] MOL2 format, chain OO [auth 2] MOL2 format, chain OP [auth 2] MOL2 format, chain OQ [auth 3] MOL2 format, chain PC [auth 1] MOL2 format, chain PD [auth 1] MOL2 format, chain PE [auth 1] MOL2 format, chain PF [auth 1] MOL2 format, chain PG [auth 1] MOL2 format, chain PH [auth 1] MOL2 format, chain PI [auth 1] MOL2 format, chain PJ [auth 1] MOL2 format, chain PK [auth 1] MOL2 format, chain PL [auth 1] MOL2 format, chain PM [auth 2] MOL2 format, chain PO [auth 2] MOL2 format, chain PP [auth 2] MOL2 format, chain PQ [auth 3] MOL2 format, chain QB [auth 1] MOL2 format, chain QC [auth 1] MOL2 format, chain QD [auth 1] MOL2 format, chain QE [auth 1] MOL2 format, chain QF [auth 1] MOL2 format, chain QH [auth 1] MOL2 format, chain QI [auth 1] MOL2 format, chain QJ [auth 1] MOL2 format, chain QK [auth 1] MOL2 format, chain QL [auth 1] MOL2 format, chain QM [auth 2] MOL2 format, chain QN [auth 2] MOL2 format, chain QO [auth 2] MOL2 format, chain QP [auth 2] MOL2 format, chain QQ [auth 3] MOL2 format, chain RB [auth 1] MOL2 format, chain RC [auth 1] MOL2 format, chain RD [auth 1] MOL2 format, chain RE [auth 1] MOL2 format, chain RF [auth 1] MOL2 format, chain RG [auth 1] MOL2 format, chain RH [auth 1] MOL2 format, chain RI [auth 1] MOL2 format, chain RJ [auth 1] MOL2 format, chain RK [auth 1] MOL2 format, chain RL [auth 1] MOL2 format, chain RN [auth 2] MOL2 format, chain RO [auth 2] MOL2 format, chain RP [auth 2] MOL2 format, chain RQ [auth 3] MOL2 format, chain SB [auth 1] MOL2 format, chain SC [auth 1] MOL2 format, chain SD [auth 1] MOL2 format, chain SF [auth 1] MOL2 format, chain SG [auth 1] MOL2 format, chain SH [auth 1] MOL2 format, chain SI [auth 1] MOL2 format, chain SJ [auth 1] MOL2 format, chain SK [auth 1] MOL2 format, chain SM [auth 2] MOL2 format, chain SN [auth 2] MOL2 format, chain SO [auth 2] MOL2 format, chain SP [auth 2] MOL2 format, chain SQ [auth 3] MOL2 format, chain TC [auth 1] MOL2 format, chain TD [auth 1] MOL2 format, chain TE [auth 1] MOL2 format, chain TF [auth 1] MOL2 format, chain TG [auth 1] MOL2 format, chain TH [auth 1] MOL2 format, chain TI [auth 1] MOL2 format, chain TJ [auth 1] MOL2 format, chain TK [auth 1] MOL2 format, chain TL [auth 1] MOL2 format, chain TM [auth 2] MOL2 format, chain TN [auth 2] MOL2 format, chain TO [auth 2] MOL2 format, chain TP [auth 2] MOL2 format, chain UB [auth 1] MOL2 format, chain UC [auth 1] MOL2 format, chain UD [auth 1] MOL2 format, chain UE [auth 1] MOL2 format, chain UF [auth 1] MOL2 format, chain UG [auth 1] MOL2 format, chain UH [auth 1] MOL2 format, chain UI [auth 1] MOL2 format, chain UJ [auth 1] MOL2 format, chain UL [auth 1] MOL2 format, chain UM [auth 2] MOL2 format, chain UN [auth 2] MOL2 format, chain UO [auth 2] MOL2 format, chain UQ [auth B] MOL2 format, chain VB [auth 1] MOL2 format, chain VC [auth 1] MOL2 format, chain VE [auth 1] MOL2 format, chain VF [auth 1] MOL2 format, chain VI [auth 1] MOL2 format, chain VJ [auth 1] MOL2 format, chain VK [auth 1] MOL2 format, chain VL [auth 1] MOL2 format, chain VM [auth 2] MOL2 format, chain VN [auth 2] MOL2 format, chain VO [auth 2] MOL2 format, chain VQ [auth D] MOL2 format, chain WC [auth 1] MOL2 format, chain WD [auth 1] MOL2 format, chain WE [auth 1] MOL2 format, chain WF [auth 1] MOL2 format, chain WG [auth 1] MOL2 format, chain WH [auth 1] MOL2 format, chain WI [auth 1] MOL2 format, chain WJ [auth 1] MOL2 format, chain WK [auth 1] MOL2 format, chain WL [auth 1] MOL2 format, chain WM [auth 2] MOL2 format, chain WN [auth 2] MOL2 format, chain WO [auth 2] MOL2 format, chain WP [auth 2] MOL2 format, chain WQ [auth D] MOL2 format, chain XC [auth 1] MOL2 format, chain XD [auth 1] MOL2 format, chain XE [auth 1] MOL2 format, chain XF [auth 1] MOL2 format, chain XG [auth 1] MOL2 format, chain XH [auth 1] MOL2 format, chain XI [auth 1] MOL2 format, chain XJ [auth 1] MOL2 format, chain XK [auth 1] MOL2 format, chain XL [auth 1] MOL2 format, chain XM [auth 2] MOL2 format, chain XN [auth 2] MOL2 format, chain XO [auth 2] MOL2 format, chain XP [auth 2] MOL2 format, chain XQ [auth D] MOL2 format, chain YB [auth 1] MOL2 format, chain YC [auth 1] MOL2 format, chain YE [auth 1] MOL2 format, chain YF [auth 1] MOL2 format, chain YG [auth 1] MOL2 format, chain YH [auth 1] MOL2 format, chain YI [auth 1] MOL2 format, chain YJ [auth 1] MOL2 format, chain YK [auth 1] MOL2 format, chain YL [auth 1] MOL2 format, chain YM [auth 2] MOL2 format, chain YN [auth 2] MOL2 format, chain YO [auth 2] MOL2 format, chain YQ [auth D] MOL2 format, chain ZB [auth 1] MOL2 format, chain ZC [auth 1] MOL2 format, chain ZD [auth 1] MOL2 format, chain ZF [auth 1] MOL2 format, chain ZG [auth 1] MOL2 format, chain ZH [auth 1] MOL2 format, chain ZJ [auth 1] MOL2 format, chain ZK [auth 1] MOL2 format, chain ZL [auth 1] MOL2 format, chain ZM [auth 2] MOL2 format, chain ZN [auth 2] MOL2 format, chain ZO [auth 2] MOL2 format, chain ZP [auth 2] MOL2 format, chain ZQ [auth M] MOL2 format, chain ZI [auth 1] MOL2 format, chain ZE [auth 1] MOL2 format, chain YP [auth 2] MOL2 format, chain YD [auth 1] MOL2 format, chain XB [auth 1] MOL2 format, chain WB [auth 1] MOL2 format, chain VP [auth 2] MOL2 format, chain VH [auth 1] MOL2 format, chain VG [auth 1] MOL2 format, chain VD [auth 1] MOL2 format, chain UP [auth 2] MOL2 format, chain UK [auth 1] MOL2 format, chain TB [auth 1] MOL2 format, chain SL [auth 1] MOL2 format, chain SE [auth 1] MOL2 format, chain RM [auth 2] MOL2 format, chain QG [auth 1] MOL2 format, chain PN [auth 2] MOL2 format, chain PB [auth 1] MOL2 format, chain MG [auth 1] MOL2 format, chain LO [auth 2] MOL2 format, chain LF [auth 1] MOL2 format, chain JK [auth 1] MOL2 format, chain JG [auth 1] MOL2 format, chain HE [auth 1] MOL2 format, chain FH [auth 1] MOL2 format, chain FG [auth 1] MOL2 format, chain CL [auth 1] MOL2 format, chain CJ [auth 1] MOL2 format, chain BI [auth 1] MOL2 format, chain AO [auth 2] MOL2 format, chain AI [auth 1] mmCIF format, chain AC [auth 1] mmCIF format, chain AD [auth 1] mmCIF format, chain AE [auth 1] mmCIF format, chain AF [auth 1] mmCIF format, chain AG [auth 1] mmCIF format, chain AH [auth 1] mmCIF format, chain AJ [auth 1] mmCIF format, chain AK [auth 1] mmCIF format, chain AL [auth 1] mmCIF format, chain AM [auth 1] mmCIF format, chain AN [auth 2] mmCIF format, chain AP [auth 2] mmCIF format, chain AQ [auth 2] mmCIF format, chain AR [auth P] mmCIF format, chain BC [auth 1] mmCIF format, chain BD [auth 1] mmCIF format, chain BE [auth 1] mmCIF format, chain BF [auth 1] mmCIF format, chain BG [auth 1] mmCIF format, chain BH [auth 1] mmCIF format, chain BJ [auth 1] mmCIF format, chain BK [auth 1] mmCIF format, chain BL [auth 1] mmCIF format, chain BM [auth 1] mmCIF format, chain BN [auth 2] mmCIF format, chain BO [auth 2] mmCIF format, chain BP [auth 2] mmCIF format, chain BQ [auth 2] mmCIF format, chain BR [auth Q] mmCIF format, chain CB [auth 1] mmCIF format, chain CC [auth 1] mmCIF format, chain CD [auth 1] mmCIF format, chain CE [auth 1] mmCIF format, chain CF [auth 1] mmCIF format, chain CG [auth 1] mmCIF format, chain CH [auth 1] mmCIF format, chain CI [auth 1] mmCIF format, chain CK [auth 1] mmCIF format, chain CM [auth 1] mmCIF format, chain CN [auth 2] mmCIF format, chain CO [auth 2] mmCIF format, chain CP [auth 2] mmCIF format, chain CQ [auth 2] mmCIF format, chain CR [auth R] mmCIF format, chain DB [auth 1] mmCIF format, chain DC [auth 1] mmCIF format, chain DD [auth 1] mmCIF format, chain DE [auth 1] mmCIF format, chain DF [auth 1] mmCIF format, chain DG [auth 1] mmCIF format, chain DH [auth 1] mmCIF format, chain DI [auth 1] mmCIF format, chain DJ [auth 1] mmCIF format, chain DK [auth 1] mmCIF format, chain DL [auth 1] mmCIF format, chain DM [auth 1] mmCIF format, chain DN [auth 2] mmCIF format, chain DO [auth 2] mmCIF format, chain DP [auth 2] mmCIF format, chain DQ [auth 2] mmCIF format, chain DR [auth T] mmCIF format, chain EB [auth 1] mmCIF format, chain EC [auth 1] mmCIF format, chain ED [auth 1] mmCIF format, chain EE [auth 1] mmCIF format, chain EF [auth 1] mmCIF format, chain EG [auth 1] mmCIF format, chain EH [auth 1] mmCIF format, chain EI [auth 1] mmCIF format, chain EJ [auth 1] mmCIF format, chain EK [auth 1] mmCIF format, chain EL [auth 1] mmCIF format, chain EM [auth 1] mmCIF format, chain EN [auth 2] mmCIF format, chain EO [auth 2] mmCIF format, chain EP [auth 2] mmCIF format, chain EQ [auth 2] mmCIF format, chain ER [auth X] mmCIF format, chain FB [auth 1] mmCIF format, chain FC [auth 1] mmCIF format, chain FD [auth 1] mmCIF format, chain FE [auth 1] mmCIF format, chain FF [auth 1] mmCIF format, chain FI [auth 1] mmCIF format, chain FJ [auth 1] mmCIF format, chain FK [auth 1] mmCIF format, chain FL [auth 1] mmCIF format, chain FM [auth 1] mmCIF format, chain FN [auth 2] mmCIF format, chain FO [auth 2] mmCIF format, chain FP [auth 2] mmCIF format, chain FQ [auth 2] mmCIF format, chain FR [auth Z] mmCIF format, chain GB [auth 1] mmCIF format, chain GC [auth 1] mmCIF format, chain GD [auth 1] mmCIF format, chain GE [auth 1] mmCIF format, chain GF [auth 1] mmCIF format, chain GG [auth 1] mmCIF format, chain GH [auth 1] mmCIF format, chain GI [auth 1] mmCIF format, chain GJ [auth 1] mmCIF format, chain GK [auth 1] mmCIF format, chain GL [auth 1] mmCIF format, chain GM [auth 1] mmCIF format, chain GN [auth 2] mmCIF format, chain GO [auth 2] mmCIF format, chain GP [auth 2] mmCIF format, chain GQ [auth 2] mmCIF format, chain GR [auth b] mmCIF format, chain HB [auth 1] mmCIF format, chain HC [auth 1] mmCIF format, chain HD [auth 1] mmCIF format, chain HF [auth 1] mmCIF format, chain HG [auth 1] mmCIF format, chain HH [auth 1] mmCIF format, chain HI [auth 1] mmCIF format, chain HJ [auth 1] mmCIF format, chain HK [auth 1] mmCIF format, chain HL [auth 1] mmCIF format, chain HM [auth 1] mmCIF format, chain HN [auth 2] mmCIF format, chain HO [auth 2] mmCIF format, chain HP [auth 2] mmCIF format, chain HQ [auth 2] mmCIF format, chain HR [auth e] mmCIF format, chain IB [auth 1] mmCIF format, chain IC [auth 1] mmCIF format, chain ID [auth 1] mmCIF format, chain IE [auth 1] mmCIF format, chain IF [auth 1] mmCIF format, chain IG [auth 1] mmCIF format, chain IH [auth 1] mmCIF format, chain II [auth 1] mmCIF format, chain IJ [auth 1] mmCIF format, chain IK [auth 1] mmCIF format, chain IL [auth 1] mmCIF format, chain IM [auth 1] mmCIF format, chain IN [auth 2] mmCIF format, chain IO [auth 2] mmCIF format, chain IP [auth 2] mmCIF format, chain IQ [auth 2] mmCIF format, chain IR [auth e] mmCIF format, chain JB [auth 1] mmCIF format, chain JC [auth 1] mmCIF format, chain JD [auth 1] mmCIF format, chain JE [auth 1] mmCIF format, chain JF [auth 1] mmCIF format, chain JH [auth 1] mmCIF format, chain JI [auth 1] mmCIF format, chain JJ [auth 1] mmCIF format, chain JL [auth 1] mmCIF format, chain JM [auth 1] mmCIF format, chain JN [auth 2] mmCIF format, chain JO [auth 2] mmCIF format, chain JP [auth 2] mmCIF format, chain JQ [auth 2] mmCIF format, chain JR [auth e] mmCIF format, chain KB [auth 1] mmCIF format, chain KC [auth 1] mmCIF format, chain KD [auth 1] mmCIF format, chain KE [auth 1] mmCIF format, chain KF [auth 1] mmCIF format, chain KG [auth 1] mmCIF format, chain KH [auth 1] mmCIF format, chain KI [auth 1] mmCIF format, chain KJ [auth 1] mmCIF format, chain KK [auth 1] mmCIF format, chain KL [auth 1] mmCIF format, chain KM [auth 1] mmCIF format, chain KN [auth 2] mmCIF format, chain KO [auth 2] mmCIF format, chain KP [auth 2] mmCIF format, chain KQ [auth 2] mmCIF format, chain KR [auth z] mmCIF format, chain LB [auth 1] mmCIF format, chain LC [auth 1] mmCIF format, chain LD [auth 1] mmCIF format, chain LE [auth 1] mmCIF format, chain LG [auth 1] mmCIF format, chain LH [auth 1] mmCIF format, chain LI [auth 1] mmCIF format, chain LJ [auth 1] mmCIF format, chain LK [auth 1] mmCIF format, chain LL [auth 1] mmCIF format, chain LM [auth 2] mmCIF format, chain LN [auth 2] mmCIF format, chain LP [auth 2] mmCIF format, chain LQ [auth 3] mmCIF format, chain MB [auth 1] mmCIF format, chain MC [auth 1] mmCIF format, chain MD [auth 1] mmCIF format, chain ME [auth 1] mmCIF format, chain MF [auth 1] mmCIF format, chain MH [auth 1] mmCIF format, chain MI [auth 1] mmCIF format, chain MJ [auth 1] mmCIF format, chain MK [auth 1] mmCIF format, chain ML [auth 1] mmCIF format, chain MM [auth 2] mmCIF format, chain MN [auth 2] mmCIF format, chain MO [auth 2] mmCIF format, chain MP [auth 2] mmCIF format, chain MQ [auth 3] mmCIF format, chain NB [auth 1] mmCIF format, chain NC [auth 1] mmCIF format, chain ND [auth 1] mmCIF format, chain NE [auth 1] mmCIF format, chain NF [auth 1] mmCIF format, chain NG [auth 1] mmCIF format, chain NH [auth 1] mmCIF format, chain NI [auth 1] mmCIF format, chain NJ [auth 1] mmCIF format, chain NK [auth 1] mmCIF format, chain NL [auth 1] mmCIF format, chain NM [auth 2] mmCIF format, chain NN [auth 2] mmCIF format, chain NO [auth 2] mmCIF format, chain NP [auth 2] mmCIF format, chain NQ [auth 3] mmCIF format, chain OB [auth 1] mmCIF format, chain OC [auth 1] mmCIF format, chain OD [auth 1] mmCIF format, chain OE [auth 1] mmCIF format, chain OF [auth 1] mmCIF format, chain OG [auth 1] mmCIF format, chain OH [auth 1] mmCIF format, chain OI [auth 1] mmCIF format, chain OJ [auth 1] mmCIF format, chain OK [auth 1] mmCIF format, chain OL [auth 1] mmCIF format, chain OM [auth 2] mmCIF format, chain ON [auth 2] mmCIF format, chain OO [auth 2] mmCIF format, chain OP [auth 2] mmCIF format, chain OQ [auth 3] mmCIF format, chain PC [auth 1] mmCIF format, chain PD [auth 1] mmCIF format, chain PE [auth 1] mmCIF format, chain PF [auth 1] mmCIF format, chain PG [auth 1] mmCIF format, chain PH [auth 1] mmCIF format, chain PI [auth 1] mmCIF format, chain PJ [auth 1] mmCIF format, chain PK [auth 1] mmCIF format, chain PL [auth 1] mmCIF format, chain PM [auth 2] mmCIF format, chain PO [auth 2] mmCIF format, chain PP [auth 2] mmCIF format, chain PQ [auth 3] mmCIF format, chain QB [auth 1] mmCIF format, chain QC [auth 1] mmCIF format, chain QD [auth 1] mmCIF format, chain QE [auth 1] mmCIF format, chain QF [auth 1] mmCIF format, chain QH [auth 1] mmCIF format, chain QI [auth 1] mmCIF format, chain QJ [auth 1] mmCIF format, chain QK [auth 1] mmCIF format, chain QL [auth 1] mmCIF format, chain QM [auth 2] mmCIF format, chain QN [auth 2] mmCIF format, chain QO [auth 2] mmCIF format, chain QP [auth 2] mmCIF format, chain QQ [auth 3] mmCIF format, chain RB [auth 1] mmCIF format, chain RC [auth 1] mmCIF format, chain RD [auth 1] mmCIF format, chain RE [auth 1] mmCIF format, chain RF [auth 1] mmCIF format, chain RG [auth 1] mmCIF format, chain RH [auth 1] mmCIF format, chain RI [auth 1] mmCIF format, chain RJ [auth 1] mmCIF format, chain RK [auth 1] mmCIF format, chain RL [auth 1] mmCIF format, chain RN [auth 2] mmCIF format, chain RO [auth 2] mmCIF format, chain RP [auth 2] mmCIF format, chain RQ [auth 3] mmCIF format, chain SB [auth 1] mmCIF format, chain SC [auth 1] mmCIF format, chain SD [auth 1] mmCIF format, chain SF [auth 1] mmCIF format, chain SG [auth 1] mmCIF format, chain SH [auth 1] mmCIF format, chain SI [auth 1] mmCIF format, chain SJ [auth 1] mmCIF format, chain SK [auth 1] mmCIF format, chain SM [auth 2] mmCIF format, chain SN [auth 2] mmCIF format, chain SO [auth 2] mmCIF format, chain SP [auth 2] mmCIF format, chain SQ [auth 3] mmCIF format, chain TC [auth 1] mmCIF format, chain TD [auth 1] mmCIF format, chain TE [auth 1] mmCIF format, chain TF [auth 1] mmCIF format, chain TG [auth 1] mmCIF format, chain TH [auth 1] mmCIF format, chain TI [auth 1] mmCIF format, chain TJ [auth 1] mmCIF format, chain TK [auth 1] mmCIF format, chain TL [auth 1] mmCIF format, chain TM [auth 2] mmCIF format, chain TN [auth 2] mmCIF format, chain TO [auth 2] mmCIF format, chain TP [auth 2] mmCIF format, chain UB [auth 1] mmCIF format, chain UC [auth 1] mmCIF format, chain UD [auth 1] mmCIF format, chain UE [auth 1] mmCIF format, chain UF [auth 1] mmCIF format, chain UG [auth 1] mmCIF format, chain UH [auth 1] mmCIF format, chain UI [auth 1] mmCIF format, chain UJ [auth 1] mmCIF format, chain UL [auth 1] mmCIF format, chain UM [auth 2] mmCIF format, chain UN [auth 2] mmCIF format, chain UO [auth 2] mmCIF format, chain UQ [auth B] mmCIF format, chain VB [auth 1] mmCIF format, chain VC [auth 1] mmCIF format, chain VE [auth 1] mmCIF format, chain VF [auth 1] mmCIF format, chain VI [auth 1] mmCIF format, chain VJ [auth 1] mmCIF format, chain VK [auth 1] mmCIF format, chain VL [auth 1] mmCIF format, chain VM [auth 2] mmCIF format, chain VN [auth 2] mmCIF format, chain VO [auth 2] mmCIF format, chain VQ [auth D] mmCIF format, chain WC [auth 1] mmCIF format, chain WD [auth 1] mmCIF format, chain WE [auth 1] mmCIF format, chain WF [auth 1] mmCIF format, chain WG [auth 1] mmCIF format, chain WH [auth 1] mmCIF format, chain WI [auth 1] mmCIF format, chain WJ [auth 1] mmCIF format, chain WK [auth 1] mmCIF format, chain WL [auth 1] mmCIF format, chain WM [auth 2] mmCIF format, chain WN [auth 2] mmCIF format, chain WO [auth 2] mmCIF format, chain WP [auth 2] mmCIF format, chain WQ [auth D] mmCIF format, chain XC [auth 1] mmCIF format, chain XD [auth 1] mmCIF format, chain XE [auth 1] mmCIF format, chain XF [auth 1] mmCIF format, chain XG [auth 1] mmCIF format, chain XH [auth 1] mmCIF format, chain XI [auth 1] mmCIF format, chain XJ [auth 1] mmCIF format, chain XK [auth 1] mmCIF format, chain XL [auth 1] mmCIF format, chain XM [auth 2] mmCIF format, chain XN [auth 2] mmCIF format, chain XO [auth 2] mmCIF format, chain XP [auth 2] mmCIF format, chain XQ [auth D] mmCIF format, chain YB [auth 1] mmCIF format, chain YC [auth 1] mmCIF format, chain YE [auth 1] mmCIF format, chain YF [auth 1] mmCIF format, chain YG [auth 1] mmCIF format, chain YH [auth 1] mmCIF format, chain YI [auth 1] mmCIF format, chain YJ [auth 1] mmCIF format, chain YK [auth 1] mmCIF format, chain YL [auth 1] mmCIF format, chain YM [auth 2] mmCIF format, chain YN [auth 2] mmCIF format, chain YO [auth 2] mmCIF format, chain YQ [auth D] mmCIF format, chain ZB [auth 1] mmCIF format, chain ZC [auth 1] mmCIF format, chain ZD [auth 1] mmCIF format, chain ZF [auth 1] mmCIF format, chain ZG [auth 1] mmCIF format, chain ZH [auth 1] mmCIF format, chain ZJ [auth 1] mmCIF format, chain ZK [auth 1] mmCIF format, chain ZL [auth 1] mmCIF format, chain ZM [auth 2] mmCIF format, chain ZN [auth 2] mmCIF format, chain ZO [auth 2] mmCIF format, chain ZP [auth 2] mmCIF format, chain ZQ [auth M] mmCIF format, chain ZI [auth 1] mmCIF format, chain ZE [auth 1] mmCIF format, chain YP [auth 2] mmCIF format, chain YD [auth 1] mmCIF format, chain XB [auth 1] mmCIF format, chain WB [auth 1] mmCIF format, chain VP [auth 2] mmCIF format, chain VH [auth 1] mmCIF format, chain VG [auth 1] mmCIF format, chain VD [auth 1] mmCIF format, chain UP [auth 2] mmCIF format, chain UK [auth 1] mmCIF format, chain TB [auth 1] mmCIF format, chain SL [auth 1] mmCIF format, chain SE [auth 1] mmCIF format, chain RM [auth 2] mmCIF format, chain QG [auth 1] mmCIF format, chain PN [auth 2] mmCIF format, chain PB [auth 1] mmCIF format, chain MG [auth 1] mmCIF format, chain LO [auth 2] mmCIF format, chain LF [auth 1] mmCIF format, chain JK [auth 1] mmCIF format, chain JG [auth 1] mmCIF format, chain HE [auth 1] mmCIF format, chain FH [auth 1] mmCIF format, chain FG [auth 1] mmCIF format, chain CL [auth 1] mmCIF format, chain CJ [auth 1] mmCIF format, chain BI [auth 1] mmCIF format, chain AO [auth 2] mmCIF format, chain AI [auth 1]	AC [auth 1] AD [auth 1] AE [auth 1] AF [auth 1] AG [auth 1] AC [auth 1], AD [auth 1], AE [auth 1], AF [auth 1], AG [auth 1], AH [auth 1], AI [auth 1], AJ [auth 1], AK [auth 1], AL [auth 1], AM [auth 1], AN [auth 2], AO [auth 2], AP [auth 2], AQ [auth 2], AR [auth P], BC [auth 1], BD [auth 1], BE [auth 1], BF [auth 1], BG [auth 1], BH [auth 1], BI [auth 1], BJ [auth 1], BK [auth 1], BL [auth 1], BM [auth 1], BN [auth 2], BO [auth 2], BP [auth 2], BQ [auth 2], BR [auth Q], CB [auth 1], CC [auth 1], CD [auth 1], CE [auth 1], CF [auth 1], CG [auth 1], CH [auth 1], CI [auth 1], CJ [auth 1], CK [auth 1], CL [auth 1], CM [auth 1], CN [auth 2], CO [auth 2], CP [auth 2], CQ [auth 2], CR [auth R], DB [auth 1], DC [auth 1], DD [auth 1], DE [auth 1], DF [auth 1], DG [auth 1], DH [auth 1], DI [auth 1], DJ [auth 1], DK [auth 1], DL [auth 1], DM [auth 1], DN [auth 2], DO [auth 2], DP [auth 2], DQ [auth 2], DR [auth T], EB [auth 1], EC [auth 1], ED [auth 1], EE [auth 1], EF [auth 1], EG [auth 1], EH [auth 1], EI [auth 1], EJ [auth 1], EK [auth 1], EL [auth 1], EM [auth 1], EN [auth 2], EO [auth 2], EP [auth 2], EQ [auth 2], ER [auth X], FB [auth 1], FC [auth 1], FD [auth 1], FE [auth 1], FF [auth 1], FG [auth 1], FH [auth 1], FI [auth 1], FJ [auth 1], FK [auth 1], FL [auth 1], FM [auth 1], FN [auth 2], FO [auth 2], FP [auth 2], FQ [auth 2], FR [auth Z], GB [auth 1], GC [auth 1], GD [auth 1], GE [auth 1], GF [auth 1], GG [auth 1], GH [auth 1], GI [auth 1], GJ [auth 1], GK [auth 1], GL [auth 1], GM [auth 1], GN [auth 2], GO [auth 2], GP [auth 2], GQ [auth 2], GR [auth b], HB [auth 1], HC [auth 1], HD [auth 1], HE [auth 1], HF [auth 1], HG [auth 1], HH [auth 1], HI [auth 1], HJ [auth 1], HK [auth 1], HL [auth 1], HM [auth 1], HN [auth 2], HO [auth 2], HP [auth 2], HQ [auth 2], HR [auth e], IB [auth 1], IC [auth 1], ID [auth 1], IE [auth 1], IF [auth 1], IG [auth 1], IH [auth 1], II [auth 1], IJ [auth 1], IK [auth 1], IL [auth 1], IM [auth 1], IN [auth 2], IO [auth 2], IP [auth 2], IQ [auth 2], IR [auth e], JB [auth 1], JC [auth 1], JD [auth 1], JE [auth 1], JF [auth 1], JG [auth 1], JH [auth 1], JI [auth 1], JJ [auth 1], JK [auth 1], JL [auth 1], JM [auth 1], JN [auth 2], JO [auth 2], JP [auth 2], JQ [auth 2], JR [auth e], KB [auth 1], KC [auth 1], KD [auth 1], KE [auth 1], KF [auth 1], KG [auth 1], KH [auth 1], KI [auth 1], KJ [auth 1], KK [auth 1], KL [auth 1], KM [auth 1], KN [auth 2], KO [auth 2], KP [auth 2], KQ [auth 2], KR [auth z], LB [auth 1], LC [auth 1], LD [auth 1], LE [auth 1], LF [auth 1], LG [auth 1], LH [auth 1], LI [auth 1], LJ [auth 1], LK [auth 1], LL [auth 1], LM [auth 2], LN [auth 2], LO [auth 2], LP [auth 2], LQ [auth 3], MB [auth 1], MC [auth 1], MD [auth 1], ME [auth 1], MF [auth 1], MG [auth 1], MH [auth 1], MI [auth 1], MJ [auth 1], MK [auth 1], ML [auth 1], MM [auth 2], MN [auth 2], MO [auth 2], MP [auth 2], MQ [auth 3], NB [auth 1], NC [auth 1], ND [auth 1], NE [auth 1], NF [auth 1], NG [auth 1], NH [auth 1], NI [auth 1], NJ [auth 1], NK [auth 1], NL [auth 1], NM [auth 2], NN [auth 2], NO [auth 2], NP [auth 2], NQ [auth 3], OB [auth 1], OC [auth 1], OD [auth 1], OE [auth 1], OF [auth 1], OG [auth 1], OH [auth 1], OI [auth 1], OJ [auth 1], OK [auth 1], OL [auth 1], OM [auth 2], ON [auth 2], OO [auth 2], OP [auth 2], OQ [auth 3], PB [auth 1], PC [auth 1], PD [auth 1], PE [auth 1], PF [auth 1], PG [auth 1], PH [auth 1], PI [auth 1], PJ [auth 1], PK [auth 1], PL [auth 1], PM [auth 2], PN [auth 2], PO [auth 2], PP [auth 2], PQ [auth 3], QB [auth 1], QC [auth 1], QD [auth 1], QE [auth 1], QF [auth 1], QG [auth 1], QH [auth 1], QI [auth 1], QJ [auth 1], QK [auth 1], QL [auth 1], QM [auth 2], QN [auth 2], QO [auth 2], QP [auth 2], QQ [auth 3], RB [auth 1], RC [auth 1], RD [auth 1], RE [auth 1], RF [auth 1], RG [auth 1], RH [auth 1], RI [auth 1], RJ [auth 1], RK [auth 1], RL [auth 1], RM [auth 2], RN [auth 2], RO [auth 2], RP [auth 2], RQ [auth 3], SB [auth 1], SC [auth 1], SD [auth 1], SE [auth 1], SF [auth 1], SG [auth 1], SH [auth 1], SI [auth 1], SJ [auth 1], SK [auth 1], SL [auth 1], SM [auth 2], SN [auth 2], SO [auth 2], SP [auth 2], SQ [auth 3], TB [auth 1], TC [auth 1], TD [auth 1], TE [auth 1], TF [auth 1], TG [auth 1], TH [auth 1], TI [auth 1], TJ [auth 1], TK [auth 1], TL [auth 1], TM [auth 2], TN [auth 2], TO [auth 2], TP [auth 2], UB [auth 1], UC [auth 1], UD [auth 1], UE [auth 1], UF [auth 1], UG [auth 1], UH [auth 1], UI [auth 1], UJ [auth 1], UK [auth 1], UL [auth 1], UM [auth 2], UN [auth 2], UO [auth 2], UP [auth 2], UQ [auth B], VB [auth 1], VC [auth 1], VD [auth 1], VE [auth 1], VF [auth 1], VG [auth 1], VH [auth 1], VI [auth 1], VJ [auth 1], VK [auth 1], VL [auth 1], VM [auth 2], VN [auth 2], VO [auth 2], VP [auth 2], VQ [auth D], WB [auth 1], WC [auth 1], WD [auth 1], WE [auth 1], WF [auth 1], WG [auth 1], WH [auth 1], WI [auth 1], WJ [auth 1], WK [auth 1], WL [auth 1], WM [auth 2], WN [auth 2], WO [auth 2], WP [auth 2], WQ [auth D], XB [auth 1], XC [auth 1], XD [auth 1], XE [auth 1], XF [auth 1], XG [auth 1], XH [auth 1], XI [auth 1], XJ [auth 1], XK [auth 1], XL [auth 1], XM [auth 2], XN [auth 2], XO [auth 2], XP [auth 2], XQ [auth D], YB [auth 1], YC [auth 1], YD [auth 1], YE [auth 1], YF [auth 1], YG [auth 1], YH [auth 1], YI [auth 1], YJ [auth 1], YK [auth 1], YL [auth 1], YM [auth 2], YN [auth 2], YO [auth 2], YP [auth 2], YQ [auth D], ZB [auth 1], ZC [auth 1], ZD [auth 1], ZE [auth 1], ZF [auth 1], ZG [auth 1], ZH [auth 1], ZI [auth 1], ZJ [auth 1], ZK [auth 1], ZL [auth 1], ZM [auth 2], ZN [auth 2], ZO [auth 2], ZP [auth 2], ZQ [auth M]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain AC [auth 1] Focus chain AD [auth 1] Focus chain AE [auth 1] Focus chain AF [auth 1] Focus chain AG [auth 1] Focus chain AH [auth 1] Focus chain AI [auth 1] Focus chain AJ [auth 1] Focus chain AK [auth 1] Focus chain AL [auth 1] Focus chain AM [auth 1] Focus chain AN [auth 2] Focus chain AO [auth 2] Focus chain AP [auth 2] Focus chain AQ [auth 2] Focus chain AR [auth P] Focus chain BC [auth 1] Focus chain BD [auth 1] Focus chain BE [auth 1] Focus chain BF [auth 1] Focus chain BG [auth 1] Focus chain BH [auth 1] Focus chain BI [auth 1] Focus chain BJ [auth 1] Focus chain BK [auth 1] Focus chain BL [auth 1] Focus chain BM [auth 1] Focus chain BN [auth 2] Focus chain BO [auth 2] Focus chain BP [auth 2] Focus chain BQ [auth 2] Focus chain BR [auth Q] Focus chain CB [auth 1] Focus chain CC [auth 1] Focus chain CD [auth 1] Focus chain CE [auth 1] Focus chain CF [auth 1] Focus chain CG [auth 1] Focus chain CH [auth 1] Focus chain CI [auth 1] Focus chain CJ [auth 1] Focus chain CK [auth 1] Focus chain CL [auth 1] Focus chain CM [auth 1] Focus chain CN [auth 2] Focus chain CO [auth 2] Focus chain CP [auth 2] Focus chain CQ [auth 2] Focus chain CR [auth R] Focus chain DB [auth 1] Focus chain DC [auth 1] Focus chain DD [auth 1] Focus chain DE [auth 1] Focus chain DF [auth 1] Focus chain DG [auth 1] Focus chain DH [auth 1] Focus chain DI [auth 1] Focus chain DJ [auth 1] Focus chain DK [auth 1] Focus chain DL [auth 1] Focus chain DM [auth 1] Focus chain DN [auth 2] Focus chain DO [auth 2] Focus chain DP [auth 2] Focus chain DQ [auth 2] Focus chain DR [auth T] Focus chain EB [auth 1] Focus chain EC [auth 1] Focus chain ED [auth 1] Focus chain EE [auth 1] Focus chain EF [auth 1] Focus chain EG [auth 1] Focus chain EH [auth 1] Focus chain EI [auth 1] Focus chain EJ [auth 1] Focus chain EK [auth 1] Focus chain EL [auth 1] Focus chain EM [auth 1] Focus chain EN [auth 2] Focus chain EO [auth 2] Focus chain EP [auth 2] Focus chain EQ [auth 2] Focus chain ER [auth X] Focus chain FB [auth 1] Focus chain FC [auth 1] Focus chain FD [auth 1] Focus chain FE [auth 1] Focus chain FF [auth 1] Focus chain FG [auth 1] Focus chain FH [auth 1] Focus chain FI [auth 1] Focus chain FJ [auth 1] Focus chain FK [auth 1] Focus chain FL [auth 1] Focus chain FM [auth 1] Focus chain FN [auth 2] Focus chain FO [auth 2] Focus chain FP [auth 2] Focus chain FQ [auth 2] Focus chain FR [auth Z] Focus chain GB [auth 1] Focus chain GC [auth 1] Focus chain GD [auth 1] Focus chain GE [auth 1] Focus chain GF [auth 1] Focus chain GG [auth 1] Focus chain GH [auth 1] Focus chain GI [auth 1] Focus chain GJ [auth 1] Focus chain GK [auth 1] Focus chain GL [auth 1] Focus chain GM [auth 1] Focus chain GN [auth 2] Focus chain GO [auth 2] Focus chain GP [auth 2] Focus chain GQ [auth 2] Focus chain GR [auth b] Focus chain HB [auth 1] Focus chain HC [auth 1] Focus chain HD [auth 1] Focus chain HE [auth 1] Focus chain HF [auth 1] Focus chain HG [auth 1] Focus chain HH [auth 1] Focus chain HI [auth 1] Focus chain HJ [auth 1] Focus chain HK [auth 1] Focus chain HL [auth 1] Focus chain HM [auth 1] Focus chain HN [auth 2] Focus chain HO [auth 2] Focus chain HP [auth 2] Focus chain HQ [auth 2] Focus chain HR [auth e] Focus chain IB [auth 1] Focus chain IC [auth 1] Focus chain ID [auth 1] Focus chain IE [auth 1] Focus chain IF [auth 1] Focus chain IG [auth 1] Focus chain IH [auth 1] Focus chain II [auth 1] Focus chain IJ [auth 1] Focus chain IK [auth 1] Focus chain IL [auth 1] Focus chain IM [auth 1] Focus chain IN [auth 2] Focus chain IO [auth 2] Focus chain IP [auth 2] Focus chain IQ [auth 2] Focus chain IR [auth e] Focus chain JB [auth 1] Focus chain JC [auth 1] Focus chain JD [auth 1] Focus chain JE [auth 1] Focus chain JF [auth 1] Focus chain JG [auth 1] Focus chain JH [auth 1] Focus chain JI [auth 1] Focus chain JJ [auth 1] Focus chain JK [auth 1] Focus chain JL [auth 1] Focus chain JM [auth 1] Focus chain JN [auth 2] Focus chain JO [auth 2] Focus chain JP [auth 2] Focus chain JQ [auth 2] Focus chain JR [auth e] Focus chain KB [auth 1] Focus chain KC [auth 1] Focus chain KD [auth 1] Focus chain KE [auth 1] Focus chain KF [auth 1] Focus chain KG [auth 1] Focus chain KH [auth 1] Focus chain KI [auth 1] Focus chain KJ [auth 1] Focus chain KK [auth 1] Focus chain KL [auth 1] Focus chain KM [auth 1] Focus chain KN [auth 2] Focus chain KO [auth 2] Focus chain KP [auth 2] Focus chain KQ [auth 2] Focus chain KR [auth z] Focus chain LB [auth 1] Focus chain LC [auth 1] Focus chain LD [auth 1] Focus chain LE [auth 1] Focus chain LF [auth 1] Focus chain LG [auth 1] Focus chain LH [auth 1] Focus chain LI [auth 1] Focus chain LJ [auth 1] Focus chain LK [auth 1] Focus chain LL [auth 1] Focus chain LM [auth 2] Focus chain LN [auth 2] Focus chain LO [auth 2] Focus chain LP [auth 2] Focus chain LQ [auth 3] Focus chain MB [auth 1] Focus chain MC [auth 1] Focus chain MD [auth 1] Focus chain ME [auth 1] Focus chain MF [auth 1] Focus chain MG [auth 1] Focus chain MH [auth 1] Focus chain MI [auth 1] Focus chain MJ [auth 1] Focus chain MK [auth 1] Focus chain ML [auth 1] Focus chain MM [auth 2] Focus chain MN [auth 2] Focus chain MO [auth 2] Focus chain MP [auth 2] Focus chain MQ [auth 3] Focus chain NB [auth 1] Focus chain NC [auth 1] Focus chain ND [auth 1] Focus chain NE [auth 1] Focus chain NF [auth 1] Focus chain NG [auth 1] Focus chain NH [auth 1] Focus chain NI [auth 1] Focus chain NJ [auth 1] Focus chain NK [auth 1] Focus chain NL [auth 1] Focus chain NM [auth 2] Focus chain NN [auth 2] Focus chain NO [auth 2] Focus chain NP [auth 2] Focus chain NQ [auth 3] Focus chain OB [auth 1] Focus chain OC [auth 1] Focus chain OD [auth 1] Focus chain OE [auth 1] Focus chain OF [auth 1] Focus chain OG [auth 1] Focus chain OH [auth 1] Focus chain OI [auth 1] Focus chain OJ [auth 1] Focus chain OK [auth 1] Focus chain OL [auth 1] Focus chain OM [auth 2] Focus chain ON [auth 2] Focus chain OO [auth 2] Focus chain OP [auth 2] Focus chain OQ [auth 3] Focus chain PB [auth 1] Focus chain PC [auth 1] Focus chain PD [auth 1] Focus chain PE [auth 1] Focus chain PF [auth 1] Focus chain PG [auth 1] Focus chain PH [auth 1] Focus chain PI [auth 1] Focus chain PJ [auth 1] Focus chain PK [auth 1] Focus chain PL [auth 1] Focus chain PM [auth 2] Focus chain PN [auth 2] Focus chain PO [auth 2] Focus chain PP [auth 2] Focus chain PQ [auth 3] Focus chain QB [auth 1] Focus chain QC [auth 1] Focus chain QD [auth 1] Focus chain QE [auth 1] Focus chain QF [auth 1] Focus chain QG [auth 1] Focus chain QH [auth 1] Focus chain QI [auth 1] Focus chain QJ [auth 1] Focus chain QK [auth 1] Focus chain QL [auth 1] Focus chain QM [auth 2] Focus chain QN [auth 2] Focus chain QO [auth 2] Focus chain QP [auth 2] Focus chain QQ [auth 3] Focus chain RB [auth 1] Focus chain RC [auth 1] Focus chain RD [auth 1] Focus chain RE [auth 1] Focus chain RF [auth 1] Focus chain RG [auth 1] Focus chain RH [auth 1] Focus chain RI [auth 1] Focus chain RJ [auth 1] Focus chain RK [auth 1] Focus chain RL [auth 1] Focus chain RM [auth 2] Focus chain RN [auth 2] Focus chain RO [auth 2] Focus chain RP [auth 2] Focus chain RQ [auth 3] Focus chain SB [auth 1] Focus chain SC [auth 1] Focus chain SD [auth 1] Focus chain SE [auth 1] Focus chain SF [auth 1] Focus chain SG [auth 1] Focus chain SH [auth 1] Focus chain SI [auth 1] Focus chain SJ [auth 1] Focus chain SK [auth 1] Focus chain SL [auth 1] Focus chain SM [auth 2] Focus chain SN [auth 2] Focus chain SO [auth 2] Focus chain SP [auth 2] Focus chain SQ [auth 3] Focus chain TB [auth 1] Focus chain TC [auth 1] Focus chain TD [auth 1] Focus chain TE [auth 1] Focus chain TF [auth 1] Focus chain TG [auth 1] Focus chain TH [auth 1] Focus chain TI [auth 1] Focus chain TJ [auth 1] Focus chain TK [auth 1] Focus chain TL [auth 1] Focus chain TM [auth 2] Focus chain TN [auth 2] Focus chain TO [auth 2] Focus chain TP [auth 2] Focus chain UB [auth 1] Focus chain UC [auth 1] Focus chain UD [auth 1] Focus chain UE [auth 1] Focus chain UF [auth 1] Focus chain UG [auth 1] Focus chain UH [auth 1] Focus chain UI [auth 1] Focus chain UJ [auth 1] Focus chain UK [auth 1] Focus chain UL [auth 1] Focus chain UM [auth 2] Focus chain UN [auth 2] Focus chain UO [auth 2] Focus chain UP [auth 2] Focus chain UQ [auth B] Focus chain VB [auth 1] Focus chain VC [auth 1] Focus chain VD [auth 1] Focus chain VE [auth 1] Focus chain VF [auth 1] Focus chain VG [auth 1] Focus chain VH [auth 1] Focus chain VI [auth 1] Focus chain VJ [auth 1] Focus chain VK [auth 1] Focus chain VL [auth 1] Focus chain VM [auth 2] Focus chain VN [auth 2] Focus chain VO [auth 2] Focus chain VP [auth 2] Focus chain VQ [auth D] Focus chain WB [auth 1] Focus chain WC [auth 1] Focus chain WD [auth 1] Focus chain WE [auth 1] Focus chain WF [auth 1] Focus chain WG [auth 1] Focus chain WH [auth 1] Focus chain WI [auth 1] Focus chain WJ [auth 1] Focus chain WK [auth 1] Focus chain WL [auth 1] Focus chain WM [auth 2] Focus chain WN [auth 2] Focus chain WO [auth 2] Focus chain WP [auth 2] Focus chain WQ [auth D] Focus chain XB [auth 1] Focus chain XC [auth 1] Focus chain XD [auth 1] Focus chain XE [auth 1] Focus chain XF [auth 1] Focus chain XG [auth 1] Focus chain XH [auth 1] Focus chain XI [auth 1] Focus chain XJ [auth 1] Focus chain XK [auth 1] Focus chain XL [auth 1] Focus chain XM [auth 2] Focus chain XN [auth 2] Focus chain XO [auth 2] Focus chain XP [auth 2] Focus chain XQ [auth D] Focus chain YB [auth 1] Focus chain YC [auth 1] Focus chain YD [auth 1] Focus chain YE [auth 1] Focus chain YF [auth 1] Focus chain YG [auth 1] Focus chain YH [auth 1] Focus chain YI [auth 1] Focus chain YJ [auth 1] Focus chain YK [auth 1] Focus chain YL [auth 1] Focus chain YM [auth 2] Focus chain YN [auth 2] Focus chain YO [auth 2] Focus chain YP [auth 2] Focus chain YQ [auth D] Focus chain ZB [auth 1] Focus chain ZC [auth 1] Focus chain ZD [auth 1] Focus chain ZE [auth 1] Focus chain ZF [auth 1] Focus chain ZG [auth 1] Focus chain ZH [auth 1] Focus chain ZI [auth 1] Focus chain ZJ [auth 1] Focus chain ZK [auth 1] Focus chain ZL [auth 1] Focus chain ZM [auth 2] Focus chain ZN [auth 2] Focus chain ZO [auth 2] Focus chain ZP [auth 2] Focus chain ZQ [auth M] Interactions & Density Focus chain AC [auth 1] Focus chain AD [auth 1] Focus chain AE [auth 1] Focus chain AF [auth 1] Focus chain AG [auth 1] Focus chain AH [auth 1] Focus chain AI [auth 1] Focus chain AJ [auth 1] Focus chain AK [auth 1] Focus chain AL [auth 1] Focus chain AM [auth 1] Focus chain AN [auth 2] Focus chain AO [auth 2] Focus chain AP [auth 2] Focus chain AQ [auth 2] Focus chain AR [auth P] Focus chain BC [auth 1] Focus chain BD [auth 1] Focus chain BE [auth 1] Focus chain BF [auth 1] Focus chain BG [auth 1] Focus chain BH [auth 1] Focus chain BI [auth 1] Focus chain BJ [auth 1] Focus chain BK [auth 1] Focus chain BL [auth 1] Focus chain BM [auth 1] Focus chain BN [auth 2] Focus chain BO [auth 2] Focus chain BP [auth 2] Focus chain BQ [auth 2] Focus chain BR [auth Q] Focus chain CB [auth 1] Focus chain CC [auth 1] Focus chain CD [auth 1] Focus chain CE [auth 1] Focus chain CF [auth 1] Focus chain CG [auth 1] Focus chain CH [auth 1] Focus chain CI [auth 1] Focus chain CJ [auth 1] Focus chain CK [auth 1] Focus chain CL [auth 1] Focus chain CM [auth 1] Focus chain CN [auth 2] Focus chain CO [auth 2] Focus chain CP [auth 2] Focus chain CQ [auth 2] Focus chain CR [auth R] Focus chain DB [auth 1] Focus chain DC [auth 1] Focus chain DD [auth 1] Focus chain DE [auth 1] Focus chain DF [auth 1] Focus chain DG [auth 1] Focus chain DH [auth 1] Focus chain DI [auth 1] Focus chain DJ [auth 1] Focus chain DK [auth 1] Focus chain DL [auth 1] Focus chain DM [auth 1] Focus chain DN [auth 2] Focus chain DO [auth 2] Focus chain DP [auth 2] Focus chain DQ [auth 2] Focus chain DR [auth T] Focus chain EB [auth 1] Focus chain EC [auth 1] Focus chain ED [auth 1] Focus chain EE [auth 1] Focus chain EF [auth 1] Focus chain EG [auth 1] Focus chain EH [auth 1] Focus chain EI [auth 1] Focus chain EJ [auth 1] Focus chain EK [auth 1] Focus chain EL [auth 1] Focus chain EM [auth 1] Focus chain EN [auth 2] Focus chain EO [auth 2] Focus chain EP [auth 2] Focus chain EQ [auth 2] Focus chain ER [auth X] Focus chain FB [auth 1] Focus chain FC [auth 1] Focus chain FD [auth 1] Focus chain FE [auth 1] Focus chain FF [auth 1] Focus chain FG [auth 1] Focus chain FH [auth 1] Focus chain FI [auth 1] Focus chain FJ [auth 1] Focus chain FK [auth 1] Focus chain FL [auth 1] Focus chain FM [auth 1] Focus chain FN [auth 2] Focus chain FO [auth 2] Focus chain FP [auth 2] Focus chain FQ [auth 2] Focus chain FR [auth Z] Focus chain GB [auth 1] Focus chain GC [auth 1] Focus chain GD [auth 1] Focus chain GE [auth 1] Focus chain GF [auth 1] Focus chain GG [auth 1] Focus chain GH [auth 1] Focus chain GI [auth 1] Focus chain GJ [auth 1] Focus chain GK [auth 1] Focus chain GL [auth 1] Focus chain GM [auth 1] Focus chain GN [auth 2] Focus chain GO [auth 2] Focus chain GP [auth 2] Focus chain GQ [auth 2] Focus chain GR [auth b] Focus chain HB [auth 1] Focus chain HC [auth 1] Focus chain HD [auth 1] Focus chain HE [auth 1] Focus chain HF [auth 1] Focus chain HG [auth 1] Focus chain HH [auth 1] Focus chain HI [auth 1] Focus chain HJ [auth 1] Focus chain HK [auth 1] Focus chain HL [auth 1] Focus chain HM [auth 1] Focus chain HN [auth 2] Focus chain HO [auth 2] Focus chain HP [auth 2] Focus chain HQ [auth 2] Focus chain HR [auth e] Focus chain IB [auth 1] Focus chain IC [auth 1] Focus chain ID [auth 1] Focus chain IE [auth 1] Focus chain IF [auth 1] Focus chain IG [auth 1] Focus chain IH [auth 1] Focus chain II [auth 1] Focus chain IJ [auth 1] Focus chain IK [auth 1] Focus chain IL [auth 1] Focus chain IM [auth 1] Focus chain IN [auth 2] Focus chain IO [auth 2] Focus chain IP [auth 2] Focus chain IQ [auth 2] Focus chain IR [auth e] Focus chain JB [auth 1] Focus chain JC [auth 1] Focus chain JD [auth 1] Focus chain JE [auth 1] Focus chain JF [auth 1] Focus chain JG [auth 1] Focus chain JH [auth 1] Focus chain JI [auth 1] Focus chain JJ [auth 1] Focus chain JK [auth 1] Focus chain JL [auth 1] Focus chain JM [auth 1] Focus chain JN [auth 2] Focus chain JO [auth 2] Focus chain JP [auth 2] Focus chain JQ [auth 2] Focus chain JR [auth e] Focus chain KB [auth 1] Focus chain KC [auth 1] Focus chain KD [auth 1] Focus chain KE [auth 1] Focus chain KF [auth 1] Focus chain KG [auth 1] Focus chain KH [auth 1] Focus chain KI [auth 1] Focus chain KJ [auth 1] Focus chain KK [auth 1] Focus chain KL [auth 1] Focus chain KM [auth 1] Focus chain KN [auth 2] Focus chain KO [auth 2] Focus chain KP [auth 2] Focus chain KQ [auth 2] Focus chain KR [auth z] Focus chain LB [auth 1] Focus chain LC [auth 1] Focus chain LD [auth 1] Focus chain LE [auth 1] Focus chain LF [auth 1] Focus chain LG [auth 1] Focus chain LH [auth 1] Focus chain LI [auth 1] Focus chain LJ [auth 1] Focus chain LK [auth 1] Focus chain LL [auth 1] Focus chain LM [auth 2] Focus chain LN [auth 2] Focus chain LO [auth 2] Focus chain LP [auth 2] Focus chain LQ [auth 3] Focus chain MB [auth 1] Focus chain MC [auth 1] Focus chain MD [auth 1] Focus chain ME [auth 1] Focus chain MF [auth 1] Focus chain MG [auth 1] Focus chain MH [auth 1] Focus chain MI [auth 1] Focus chain MJ [auth 1] Focus chain MK [auth 1] Focus chain ML [auth 1] Focus chain MM [auth 2] Focus chain MN [auth 2] Focus chain MO [auth 2] Focus chain MP [auth 2] Focus chain MQ [auth 3] Focus chain NB [auth 1] Focus chain NC [auth 1] Focus chain ND [auth 1] Focus chain NE [auth 1] Focus chain NF [auth 1] Focus chain NG [auth 1] Focus chain NH [auth 1] Focus chain NI [auth 1] Focus chain NJ [auth 1] Focus chain NK [auth 1] Focus chain NL [auth 1] Focus chain NM [auth 2] Focus chain NN [auth 2] Focus chain NO [auth 2] Focus chain NP [auth 2] Focus chain NQ [auth 3] Focus chain OB [auth 1] Focus chain OC [auth 1] Focus chain OD [auth 1] Focus chain OE [auth 1] Focus chain OF [auth 1] Focus chain OG [auth 1] Focus chain OH [auth 1] Focus chain OI [auth 1] Focus chain OJ [auth 1] Focus chain OK [auth 1] Focus chain OL [auth 1] Focus chain OM [auth 2] Focus chain ON [auth 2] Focus chain OO [auth 2] Focus chain OP [auth 2] Focus chain OQ [auth 3] Focus chain PB [auth 1] Focus chain PC [auth 1] Focus chain PD [auth 1] Focus chain PE [auth 1] Focus chain PF [auth 1] Focus chain PG [auth 1] Focus chain PH [auth 1] Focus chain PI [auth 1] Focus chain PJ [auth 1] Focus chain PK [auth 1] Focus chain PL [auth 1] Focus chain PM [auth 2] Focus chain PN [auth 2] Focus chain PO [auth 2] Focus chain PP [auth 2] Focus chain PQ [auth 3] Focus chain QB [auth 1] Focus chain QC [auth 1] Focus chain QD [auth 1] Focus chain QE [auth 1] Focus chain QF [auth 1] Focus chain QG [auth 1] Focus chain QH [auth 1] Focus chain QI [auth 1] Focus chain QJ [auth 1] Focus chain QK [auth 1] Focus chain QL [auth 1] Focus chain QM [auth 2] Focus chain QN [auth 2] Focus chain QO [auth 2] Focus chain QP [auth 2] Focus chain QQ [auth 3] Focus chain RB [auth 1] Focus chain RC [auth 1] Focus chain RD [auth 1] Focus chain RE [auth 1] Focus chain RF [auth 1] Focus chain RG [auth 1] Focus chain RH [auth 1] Focus chain RI [auth 1] Focus chain RJ [auth 1] Focus chain RK [auth 1] Focus chain RL [auth 1] Focus chain RM [auth 2] Focus chain RN [auth 2] Focus chain RO [auth 2] Focus chain RP [auth 2] Focus chain RQ [auth 3] Focus chain SB [auth 1] Focus chain SC [auth 1] Focus chain SD [auth 1] Focus chain SE [auth 1] Focus chain SF [auth 1] Focus chain SG [auth 1] Focus chain SH [auth 1] Focus chain SI [auth 1] Focus chain SJ [auth 1] Focus chain SK [auth 1] Focus chain SL [auth 1] Focus chain SM [auth 2] Focus chain SN [auth 2] Focus chain SO [auth 2] Focus chain SP [auth 2] Focus chain SQ [auth 3] Focus chain TB [auth 1] Focus chain TC [auth 1] Focus chain TD [auth 1] Focus chain TE [auth 1] Focus chain TF [auth 1] Focus chain TG [auth 1] Focus chain TH [auth 1] Focus chain TI [auth 1] Focus chain TJ [auth 1] Focus chain TK [auth 1] Focus chain TL [auth 1] Focus chain TM [auth 2] Focus chain TN [auth 2] Focus chain TO [auth 2] Focus chain TP [auth 2] Focus chain UB [auth 1] Focus chain UC [auth 1] Focus chain UD [auth 1] Focus chain UE [auth 1] Focus chain UF [auth 1] Focus chain UG [auth 1] Focus chain UH [auth 1] Focus chain UI [auth 1] Focus chain UJ [auth 1] Focus chain UK [auth 1] Focus chain UL [auth 1] Focus chain UM [auth 2] Focus chain UN [auth 2] Focus chain UO [auth 2] Focus chain UP [auth 2] Focus chain UQ [auth B] Focus chain VB [auth 1] Focus chain VC [auth 1] Focus chain VD [auth 1] Focus chain VE [auth 1] Focus chain VF [auth 1] Focus chain VG [auth 1] Focus chain VH [auth 1] Focus chain VI [auth 1] Focus chain VJ [auth 1] Focus chain VK [auth 1] Focus chain VL [auth 1] Focus chain VM [auth 2] Focus chain VN [auth 2] Focus chain VO [auth 2] Focus chain VP [auth 2] Focus chain VQ [auth D] Focus chain WB [auth 1] Focus chain WC [auth 1] Focus chain WD [auth 1] Focus chain WE [auth 1] Focus chain WF [auth 1] Focus chain WG [auth 1] Focus chain WH [auth 1] Focus chain WI [auth 1] Focus chain WJ [auth 1] Focus chain WK [auth 1] Focus chain WL [auth 1] Focus chain WM [auth 2] Focus chain WN [auth 2] Focus chain WO [auth 2] Focus chain WP [auth 2] Focus chain WQ [auth D] Focus chain XB [auth 1] Focus chain XC [auth 1] Focus chain XD [auth 1] Focus chain XE [auth 1] Focus chain XF [auth 1] Focus chain XG [auth 1] Focus chain XH [auth 1] Focus chain XI [auth 1] Focus chain XJ [auth 1] Focus chain XK [auth 1] Focus chain XL [auth 1] Focus chain XM [auth 2] Focus chain XN [auth 2] Focus chain XO [auth 2] Focus chain XP [auth 2] Focus chain XQ [auth D] Focus chain YB [auth 1] Focus chain YC [auth 1] Focus chain YD [auth 1] Focus chain YE [auth 1] Focus chain YF [auth 1] Focus chain YG [auth 1] Focus chain YH [auth 1] Focus chain YI [auth 1] Focus chain YJ [auth 1] Focus chain YK [auth 1] Focus chain YL [auth 1] Focus chain YM [auth 2] Focus chain YN [auth 2] Focus chain YO [auth 2] Focus chain YP [auth 2] Focus chain YQ [auth D] Focus chain ZB [auth 1] Focus chain ZC [auth 1] Focus chain ZD [auth 1] Focus chain ZE [auth 1] Focus chain ZF [auth 1] Focus chain ZG [auth 1] Focus chain ZH [auth 1] Focus chain ZI [auth 1] Focus chain ZJ [auth 1] Focus chain ZK [auth 1] Focus chain ZL [auth 1] Focus chain ZM [auth 2] Focus chain ZN [auth 2] Focus chain ZO [auth 2] Focus chain ZP [auth 2] Focus chain ZQ [auth M]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
0TD Query on 0TD	SA [auth q]	L-PEPTIDE LINKING	C₅ H₉ N O₄ S		ASP

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.40 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-07-30

Deposition Author(s):

Kimbrough, E.M.

Dunham, C.M.

Nguyen, H.A.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01GM093278
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35GM34931
National Science Foundation (NSF, United States)	United States	1808771

Revision History (Full details and data files)

Version 1.0: 2025-07-30
Type: Initial release

RCSB PDB Core Operations are funded by the U.S. National Science Foundation (DBI-2321666), the US Department of Energy (DE-SC0019749), and the National Cancer Institute, National Institute of Allergy and Infectious Diseases, and National Institute of General Medical Sciences of the National Institutes of Health under grant R01GM157729.

Prepare Data

Validate Data

Deposit Data

Help and Resources

.id_divider{ color: #ccc; padding: 0 10px 0 10px; } .extended_id_info{ color: #ccc; font-size: 18px; position: relative; top: -10px; left: 4px; } 8VV4 | pdb_00008vv4

E. coli 70S ribosome with unmodified Lys-tRNAPro(GGG) in the P/P conformation on a slippery CCC-C codon

The influence of EF-P on mRNA reading frame maintenance

Entity ID: 6

UniProt

Entity Groups

Sequence Annotations

Entity ID: 7

UniProt

Entity Groups

Sequence Annotations

Entity ID: 8

UniProt

Entity Groups

Sequence Annotations

Entity ID: 9

Entity Groups

Sequence Annotations

Entity ID: 10

UniProt

Entity Groups

Sequence Annotations

Entity ID: 11

UniProt

Entity Groups

Sequence Annotations

Entity ID: 12

Entity Groups

Sequence Annotations

Entity ID: 13

UniProt

Entity Groups

Sequence Annotations

Entity ID: 14

UniProt

Entity Groups

Sequence Annotations

Entity ID: 15

UniProt

Entity Groups

Sequence Annotations

Entity ID: 16

UniProt

Entity Groups

Sequence Annotations

Entity ID: 17

Entity Groups

Sequence Annotations

Entity ID: 18

Entity Groups

Sequence Annotations

Entity ID: 19

UniProt

Entity Groups

Sequence Annotations

Entity ID: 20

UniProt

Entity Groups

Sequence Annotations

Entity ID: 21

UniProt

Entity Groups

Sequence Annotations

Entity ID: 22

Entity Groups

Sequence Annotations

Entity ID: 23

Entity Groups

Sequence Annotations

Entity ID: 24

Entity Groups

Sequence Annotations

Entity ID: 25

UniProt

Entity Groups

Sequence Annotations

8VV4 | pdb_00008vv4
