8PEI | pdb_00008pei

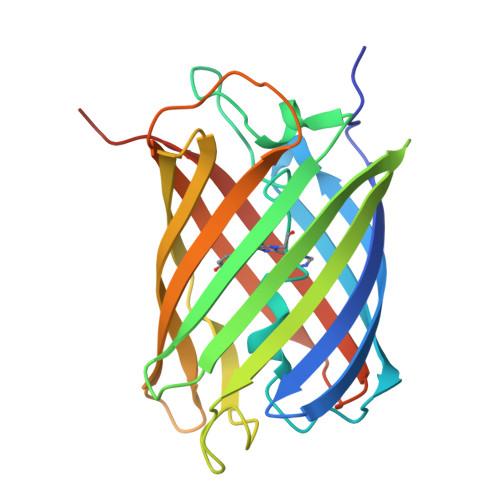

Crystal structure of the biphotochromic fluorescent protein SAASoti (C21N/V127T variant) in its green on-state


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free:
    0.340 (Depositor), 0.340 (DCC)
  • R-Value Work:
    0.291 (Depositor), 0.290 (DCC)
  • R-Value Observed:
    0.294 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

The role of the correlated motion(s) of the chromophore in photoswitching of green and red forms of the photoconvertible fluorescent protein mSAASoti.

Gavshina, A.V.Solovyev, I.D.Khrenova, M.G.Boyko, K.M.Varfolomeeva, L.A.Minyaev, M.E.Popov, V.O.Savitsky, A.P.

(2024) Sci Rep 14: 8754-8754

  • DOI: https://doi.org/10.1038/s41598-024-59364-1
  • Primary Citation of Related Structures:
    8PEI

  • PubMed Abstract:

    Wild-type SAASoti and its monomeric variant mSAASoti can undergo phototransformations, including reversible photoswitching of the green form to a nonfluorescent state and irreversible green-to-red photoconversion. In this study, we extend the photochemistry of mSAASoti variants to enable reversible photoswitching of the red form. This result is achieved by rational and site-saturated mutagenesis of the M163 and F177 residues. In the case of mSAASoti it is M163T substitution that leads to the fastest switching and the most photostable variant, and reversible photoswitching can be observed for both green and red forms when expressed in eukaryotic cells. We obtained a 13-fold increase in the switching efficiency with the maximum switching contrast of the green form and the appearance of comparable switching of the red form for the C21N/M163T mSAASoti variant. The crystal structure of the C21N mSAASoti in its green on-state was obtained for the first time at 3.0 Å resolution, and it is in good agreement with previously calculated 3D-model. Dynamic network analysis reveals that efficient photoswitching occurs if motions of the 66H residue and phenyl fragment of chromophore are correlated and these moieties belong to the same community.


  • Organizational Affiliation
    • A.N. Bach Institute of Biochemistry, Federal Research Centre 'Fundamentals of Biotechnology' of the Russian Academy of Sciences, Moscow, Russia.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
C21N/V127T form of the biphotochromic fluorescent protein SAASoti
A, B
228Stylocoeniella armataMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
5SQ
Query on 5SQ
A, B
L-PEPTIDE LINKINGC17 H17 N5 O4HIS, TYR, GLY
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free:  0.340 (Depositor), 0.340 (DCC)
  • R-Value Work:  0.291 (Depositor), 0.290 (DCC)
  • R-Value Observed: 0.294 (Depositor)
Space Group: P 61 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 104.583α = 90
b = 104.583β = 90
c = 151.187γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
Aimlessdata scaling
CrysalisProdata reduction
MOLREPphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Ministry of Science and Higher Education of the Russian FederationRussian Federation075-15-2021-1354

Revision History  (Full details and data files)

  • Version 1.0: 2024-01-17
    Type: Initial release
  • Version 1.1: 2024-07-31
    Changes: Database references
  • Version 1.2: 2024-10-16
    Changes: Structure summary
