8CNN | pdb_00008cnn

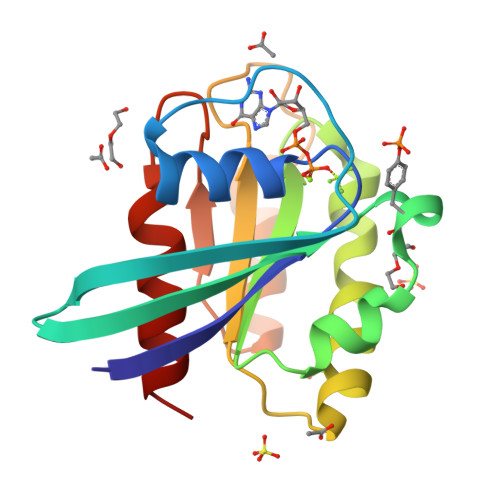

BeF3 Phospho-HRas GSA complex


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.48 Å
  • R-Value Free:
    0.188 (Depositor), 0.192 (DCC)
  • R-Value Work:
    0.164 (Depositor), 0.172 (DCC)
  • R-Value Observed:
    0.165 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 8CNN

Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history

Literature

Far-reaching effects of tyrosine64 phosphorylation on Ras revealed with BeF 3 - complexes.

Baumann, P.Jin, Y.

(2024) Commun Chem 7: 19-19

  • DOI: https://doi.org/10.1038/s42004-024-01105-6
  • Primary Citation Related Structures:
    8BWG, 8CNJ, 8CNN

  • PubMed Abstract:

    Tyrosine phosphorylation on Ras by Src kinase is known to uncouple Ras from upstream regulation and downstream communication. However, the mechanisms by which phosphorylation modulates these interactions have not been detailed. Here, the major mono-phosphorylation level on tyrosine64 is quantified by 31 P NMR and mutagenesis. Crystal structures of unphosphorylated and tyrosine64-phosphorylated Ras in complex with a BeF 3 - ground state analogue reveal "closed" Ras conformations very different from those of the "open" conformations previously observed for non-hydrolysable GTP analogue structures of Ras. They deliver new mechanistic and conformational insights into intrinsic GTP hydrolysis. Phosphorylation of tyrosine64 delivers conformational changes distant from the active site, showing why phosphorylated Ras has reduced affinity to its downstream effector Raf. 19 F NMR provides evidence for changes in the intrinsic GTPase and nucleotide exchange rate and identifies the concurrent presence of a major "closed" conformation alongside a minor yet functionally important "open" conformation at the ground state of Ras. This study expands the application of metal fluoride complexes in revealing major and minor conformational changes of dynamic and modified Ras proteins.


  • Organizational Affiliation
    • School of Chemistry, Cardiff University, Park Place, Cardiff, CF10 3AT, UK.

Macromolecule Content

  • Total Structure Weight: 20.17 kDa
  • Atom Count: 1,561
  • Modeled Residue Count: 166
  • Deposited Residue Count: 166
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
GTPase HRas166Homo sapiensMutation(s): 0
Gene Names: HRASHRAS1
EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01112 (Homo sapiens)
Explore P01112
Go to UniProtKB:  P01112
PHAROS:  P01112
GTEx:  ENSG00000174775
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01112
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 6 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GDP
(Subject of Investigation/LOI)

Query on GDP



Download:Ideal Coordinates CCD File
G [auth A]GUANOSINE-5'-DIPHOSPHATE
C10 H15 N5 O11 P2
QGWNDRXFNXRZMB-UUOKFMHZSA-N
PEG

Query on PEG



Download:Ideal Coordinates CCD File
B [auth A],
D [auth A]
DI(HYDROXYETHYL)ETHER
C4 H10 O3
MTHSVFCYNBDYFN-UHFFFAOYSA-N
SO4

Query on SO4



Download:Ideal Coordinates CCD File
J [auth A],
K [auth A],
L [auth A]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
BEF
(Subject of Investigation/LOI)

Query on BEF



Download:Ideal Coordinates CCD File
H [auth A]BERYLLIUM TRIFLUORIDE ION
Be F3
OGIAHMCCNXDTIE-UHFFFAOYSA-K
ACT

Query on ACT



Download:Ideal Coordinates CCD File
C [auth A],
E [auth A],
F [auth A]
ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
MG

Query on MG



Download:Ideal Coordinates CCD File
I [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
PTR
Query on PTR
A
L-PEPTIDE LINKINGC9 H12 N O6 PTYR

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.48 Å
  • R-Value Free:  0.188 (Depositor), 0.192 (DCC)
  • R-Value Work:  0.164 (Depositor), 0.172 (DCC)
  • R-Value Observed: 0.165 (Depositor)
Space Group: H 3 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 87.77α = 90
b = 87.77β = 90
c = 132.381γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
DIALSdata reduction
Aimlessdata scaling
MOLREPphasing
Cootmodel building

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Wellcome TrustUnited Kingdom--

Revision History  (Full details and data files)

  • Version 1.0: 2023-09-27
    Type: Initial release
  • Version 1.1: 2023-11-15
    Changes: Data collection
  • Version 1.2: 2024-04-10
    Changes: Database references
  • Version 1.3: 2024-11-06
    Changes: Structure summary
