8ABS

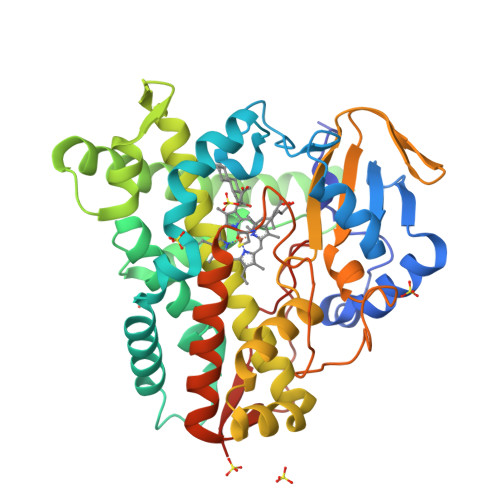

Crystal structure of CYP109A2 from Bacillus megaterium bound with testosterone and putative ligand 4,6-dimethyloctanoic acid


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.75 Å
  • R-Value Free: 0.206
  • R-Value Work: 0.188
  • R-Value Observed: 0.189

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Regio- and stereoselective steroid hydroxylation by CYP109A2 from Bacillus megaterium explored by X-ray crystallography and computational modeling.

Jozwik, I.K.Bombino, E.Abdulmughni, A.Hartz, P.Rozeboom, H.J.Wijma, H.J.Kappl, R.Janssen, D.B.Bernhardt, R.Thunnissen, A.W.H.

(2023) FEBS J 290: 5016-5035

  • DOI: https://doi.org/10.1111/febs.16906
  • Primary Citation of Related Structures:
    8ABR, 8ABS

  • PubMed Abstract:

    The P450 monooxygenase CYP109A2 from Bacillus megaterium DSM319 was previously found to convert vitamin D3 (VD3) to 25-hydroxyvitamin D3. Here, we show that this enzyme is also able to convert testosterone in a highly regio- and stereoselective manner to 16β-hydroxytestosterone. To reveal the structural determinants governing the regio- and stereoselective steroid hydroxylation reactions catalyzed by CYP109A2, two crystal structures of CYP109A2 were solved in similar closed conformations, one revealing a bound testosterone in the active site pocket, albeit at a nonproductive site away from the heme-iron. To examine whether the closed crystal structures nevertheless correspond to a reactive conformation of CYP109A2, docking and molecular dynamics (MD) simulations were performed with testosterone and vitamin D3 (VD3) present in the active site. These MD simulations were analyzed for catalytically productive conformations, the relative occurrences of which were in agreement with the experimentally determined stereoselectivities if the predicted stability of each carbon-hydrogen bond was taken into account. Overall, the first-time determination and analysis of the catalytically relevant 3D conformation of CYP109A2 will allow for future small molecule ligand screening in silico, as well as enabling site-directed mutagenesis toward improved enzymatic properties of this enzyme.


  • Organizational Affiliation

    Biotransformation and Biocatalysis, Groningen Biomolecular Sciences and Biotechnology Institute, University of Groningen, The Netherlands.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome P450409Priestia megaterium DSM 319Mutation(s): 0
Gene Names: BMD_2035
EC: 1.14
UniProt
Find proteins for D5DF88 (Priestia megaterium (strain DSM 319 / IMG 1521))
Explore D5DF88
Go to UniProtKB:  D5DF88
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupD5DF88
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
HEB (Subject of Investigation/LOI)
Query on HEB

Download Ideal Coordinates CCD File
B [auth A]HEME B/C
C34 H34 Fe N4 O4
NEGHHAJBRZGUAY-RGGAHWMASA-L
TES (Subject of Investigation/LOI)
Query on TES

Download Ideal Coordinates CCD File
D [auth A]TESTOSTERONE
C19 H28 O2
MUMGGOZAMZWBJJ-DYKIIFRCSA-N
W2L (Subject of Investigation/LOI)
Query on W2L

Download Ideal Coordinates CCD File
C [auth A](4~{S},6~{S})-4,6-dimethyloctanoic acid
C10 H20 O2
LMFRDZYWEWGVPW-IUCAKERBSA-N
SO4
Query on SO4

Download Ideal Coordinates CCD File
E [auth A]
F [auth A]
G [auth A]
H [auth A]
I [auth A]
E [auth A],
F [auth A],
G [auth A],
H [auth A],
I [auth A],
J [auth A]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.75 Å
  • R-Value Free: 0.206
  • R-Value Work: 0.188
  • R-Value Observed: 0.189
  • Space Group: P 43 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 78.03α = 90
b = 78.03β = 90
c = 187.857γ = 90
Software Package:
Software NamePurpose
XDSdata reduction
Aimlessdata scaling
PHASERphasing
PHENIXrefinement
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
European CommissionEuropean Union289217
European CommissionEuropean Union722610

Revision History  (Full details and data files)

  • Version 1.0: 2023-07-12
    Type: Initial release
  • Version 1.1: 2023-07-26
    Changes: Database references
  • Version 1.2: 2023-10-25
    Changes: Data collection, Database references
  • Version 1.3: 2024-02-07
    Changes: Refinement description
