7YNH | pdb_00007ynh

Experimental Data Snapshot

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.3 of the entry. See complete history.

(2022) Acta Crystallogr D Struct Biol 78: 1428-1438

PubMed Abstract:
The mechanisms by which enzymes promote catalytic reactions efficiently through their structural changes remain to be fully elucidated. Recent progress in serial femtosecond X-ray crystallography (SFX) using X-ray free-electron lasers (XFELs) has made it possible to address these issues. In particular, mix-and-inject serial crystallography (MISC) is promising for the direct observation of structural changes associated with ongoing enzymic reactions. In this study, SFX measurements using a liquid-jet system were performed on microcrystals of bacterial copper amine oxidase anaerobically premixed with a substrate amine solution. The structure determined at 1.94 Å resolution indicated that the peptidyl quinone cofactor is in equilibrium between the aminoresorcinol and semiquinone radical intermediates, which accumulate only under anaerobic single-turnover conditions. These results show that anaerobic conditions were well maintained throughout the liquid-jet SFX measurements, preventing the catalytic intermediates from reacting with dioxygen. These results also provide a necessary framework for performing time-resolved MISC to study enzymic reaction mechanisms under anaerobic conditions.

Organizational Affiliation

Department of Biochemistry, Faculty of Medicine, Osaka Medical and Pharmaceutical University, 2-7 Daigakumachi, Takatsuki, Osaka 569-8686, Japan.

Macromolecule Content

Find similar proteins by:

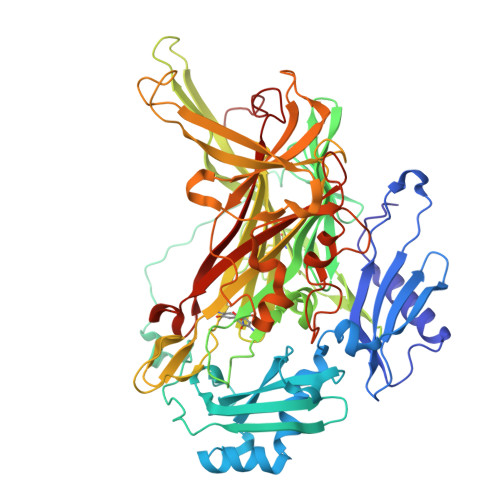

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Phenylethylamine oxidase	A, B	620	Arthrobacter globiformis	Mutation(s): 0 EC: 1.4.3.21
UniProt
Find proteins for P46881 (Arthrobacter globiformis) Explore P46881 Go to UniProtKB: P46881
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P46881
Sequence Annotations Expand
Reference Sequence

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
HY1 (Subject of Investigation/LOI) Query on HY1 Download:Ideal Coordinates CCD File SDF format, chain G [auth B] SDF format, chain D [auth A] MOL2 format, chain G [auth B] MOL2 format, chain D [auth A] mmCIF format, chain G [auth B] mmCIF format, chain D [auth A]	D [auth A], G [auth B]	PHENYLACETALDEHYDE C₈ H₈ O DTUQWGWMVIHBKE-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain G [auth B] Interactions & Density Focus chain D [auth A] Focus chain G [auth B]
CU Query on CU Download:Ideal Coordinates CCD File SDF format, chain H [auth B] SDF format, chain E [auth A] MOL2 format, chain H [auth B] MOL2 format, chain E [auth A] mmCIF format, chain H [auth B] mmCIF format, chain E [auth A]	E [auth A], H [auth B]	COPPER (II) ION Cu JPVYNHNXODAKFH-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain H [auth B] Interactions & Density Focus chain E [auth A] Focus chain H [auth B]
NA Query on NA Download:Ideal Coordinates CCD File SDF format, chain F [auth B] SDF format, chain C [auth A] MOL2 format, chain F [auth B] MOL2 format, chain C [auth A] mmCIF format, chain F [auth B] mmCIF format, chain C [auth A]	C [auth A], F [auth B]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain F [auth B] Interactions & Density Focus chain C [auth A] Focus chain F [auth B]
