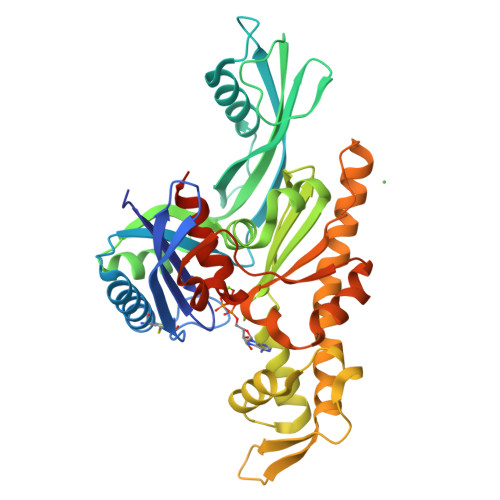

7Q6D

E. coli FtsA 1-405 ATP 3 Ni


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.80 Å
  • R-Value Free: 0.269
  • R-Value Work: 0.217
  • R-Value Observed: 0.219

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.4 of the entry. See complete history


Literature

Bacterial divisome protein FtsA forms curved antiparallel double filaments when binding to FtsN.

Nierhaus, T.McLaughlin, S.H.Burmann, F.Kureisaite-Ciziene, D.Maslen, S.L.Skehel, J.M.Yu, C.W.H.Freund, S.M.V.Funke, L.F.H.Chin, J.W.Lowe, J.

(2022) Nat Microbiol 7: 1686-1701

  • DOI: https://doi.org/10.1038/s41564-022-01206-9
  • Primary Citation of Related Structures:
    7Q6D, 7Q6F, 7Q6G, 7Q6I

  • PubMed Abstract:

    During bacterial cell division, filaments of tubulin-like FtsZ form the Z-ring, which is the cytoplasmic scaffold for divisome assembly. In Escherichia coli, the actin homologue FtsA anchors the Z-ring to the membrane and recruits divisome components, including bitopic FtsN. FtsN regulates the periplasmic peptidoglycan synthase FtsWI. To characterize how FtsA regulates FtsN, we applied electron microscopy to show that E. coli FtsA forms antiparallel double filaments on lipid monolayers when bound to the cytoplasmic tail of FtsN. Using X-ray crystallography, we demonstrate that Vibrio maritimus FtsA crystallizes as an equivalent double filament. We identified an FtsA-FtsN interaction site in the IA-IC interdomain cleft of FtsA using X-ray crystallography and confirmed that FtsA forms double filaments in vivo by site-specific cysteine cross-linking. FtsA-FtsN double filaments reconstituted in or on liposomes prefer negative Gaussian curvature, like those of MreB, the actin-like protein of the elongasome. We propose that curved antiparallel FtsA double filaments together with treadmilling FtsZ filaments organize septal peptidoglycan synthesis in the division plane.


  • Organizational Affiliation

    MRC Laboratory of Molecular Biology, Cambridge, UK.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Cell division protein FtsA405Escherichia coli K-12Mutation(s): 0
Gene Names: ftsAdivAb0094JW0092
UniProt
Find proteins for P0ABH0 (Escherichia coli (strain K12))
Explore P0ABH0
Go to UniProtKB:  P0ABH0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ABH0
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.80 Å
  • R-Value Free: 0.269
  • R-Value Work: 0.217
  • R-Value Observed: 0.219
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 51.102α = 90
b = 64.177β = 96.07
c = 65.285γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
REFMACrefinement
PDB_EXTRACTdata extraction
XDSdata reduction
XDSdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Wellcome TrustUnited Kingdom202754/Z/16/Z
Medical Research Council (MRC, United Kingdom)United KingdomU105184326

Revision History  (Full details and data files)

  • Version 1.0: 2022-09-21
    Type: Initial release
  • Version 1.1: 2022-09-28
    Changes: Database references
  • Version 1.2: 2022-10-05
    Changes: Database references
  • Version 1.3: 2022-10-12
    Changes: Database references
  • Version 1.4: 2024-01-31
    Changes: Data collection, Refinement description
