7LBM

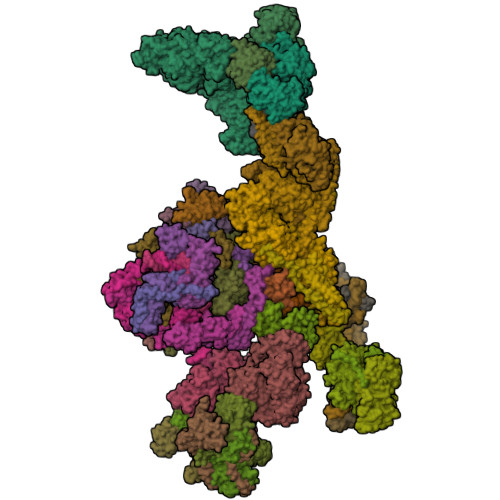

Structure of the human Mediator-bound transcription pre-initiation complex

  • Classification: TRANSCRIPTION/DNA
  • Organism(s): Homo sapiens
  • Expression System: Escherichia coli
  • Mutation(s): No

  • Deposited: 2021-01-08 Released: 2021-03-24
  • Deposition Author(s): Abdella, R., Talyzina, A., He, Y.
  • Funding Organization(s): Howard Hughes Medical Institute (HHMI), American Cancer Society, National Institutes of Health/National Cancer Institute (NIH/NCI), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.80 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structure of the human Mediator-bound transcription preinitiation complex.

Abdella, R.Talyzina, A.Chen, S.Inouye, C.J.Tjian, R.He, Y.

(2021) Science 372: 52-56

  • DOI: 10.1126/science.abg3074
  • Primary Citation of Related Structures:
    7LBM

  • PubMed Abstract:
  • Eukaryotic transcription requires the assembly of a multi-subunit preinitiation complex (PIC) comprised of RNA polymerase II (Pol II) and the general transcription factors. The co-activator Mediator is recruited by transcription factors, facilitates the assembly of the PIC, and stimulates phosphorylation of the Pol II C-terminal domain (CTD) by the TFIIH subunit CDK7 ...

    Eukaryotic transcription requires the assembly of a multi-subunit preinitiation complex (PIC) comprised of RNA polymerase II (Pol II) and the general transcription factors. The co-activator Mediator is recruited by transcription factors, facilitates the assembly of the PIC, and stimulates phosphorylation of the Pol II C-terminal domain (CTD) by the TFIIH subunit CDK7. Here, we present the cryo-electron microscopy structure of the human Mediator-bound PIC at sub-4 Å. Transcription factor binding sites within Mediator are primarily flexibly tethered to the tail module. CDK7 is stabilized by multiple contacts with Mediator. Two binding sites exist for the Pol II CTD, one between the head and middle modules of Mediator and the other in the active site of CDK7, providing structural evidence for Pol II CTD phosphorylation within the Mediator-bound PIC.


    Organizational Affiliation

    Robert H. Lurie Comprehensive Cancer Center of Northwestern University, Northwestern University, Chicago, IL, USA.



Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Isoform 2 of Mediator of RNA polymerase II transcription subunit 16A [auth 0]841Homo sapiensMutation(s): 0
Gene Names: MED16DRIP92THRAP5
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y2X0 (Homo sapiens)
Explore Q9Y2X0
Go to UniProtKB:  Q9Y2X0
PHAROS:  Q9Y2X0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y2X0
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 23B [auth 1]1368Homo sapiensMutation(s): 0
Gene Names: MED23ARC130CRSP3DRIP130KIAA1216SUR2
UniProt & NIH Common Fund Data Resources
Find proteins for Q9ULK4 (Homo sapiens)
Explore Q9ULK4
Go to UniProtKB:  Q9ULK4
PHAROS:  Q9ULK4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9ULK4
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 24C [auth 2]989Homo sapiensMutation(s): 0
Gene Names: MED24ARC100CRSP4DRIP100KIAA0130THRAP4TRAP100
UniProt & NIH Common Fund Data Resources
Find proteins for O75448 (Homo sapiens)
Explore O75448
Go to UniProtKB:  O75448
PHAROS:  O75448
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO75448
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 25D [auth 3]747Homo sapiensMutation(s): 0
Gene Names: MED25ACID1ARC92PTOV2TCBAP0758
UniProt & NIH Common Fund Data Resources
Find proteins for Q71SY5 (Homo sapiens)
Explore Q71SY5
Go to UniProtKB:  Q71SY5
PHAROS:  Q71SY5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ71SY5
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChainsSequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB1E [auth A]1970Homo sapiensMutation(s): 0
Gene Names: POLR2APOLR2
EC: 2.7.7.6 (PDB Primary Data), 2.7.7.48 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P24928 (Homo sapiens)
Explore P24928
Go to UniProtKB:  P24928
PHAROS:  P24928
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP24928
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChainsSequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB2F [auth B]1174Homo sapiensMutation(s): 0
Gene Names: POLR2B
EC: 2.7.7.6
UniProt & NIH Common Fund Data Resources
Find proteins for P30876 (Homo sapiens)
Explore P30876
Go to UniProtKB:  P30876
PHAROS:  P30876
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP30876
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChainsSequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB3G [auth C]275Homo sapiensMutation(s): 0
Gene Names: POLR2CA-152E5.7
UniProt & NIH Common Fund Data Resources
Find proteins for P19387 (Homo sapiens)
Explore P19387
Go to UniProtKB:  P19387
PHAROS:  P19387
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP19387
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChainsSequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB4H [auth D]142Homo sapiensMutation(s): 0
Gene Names: POLR2D
UniProt & NIH Common Fund Data Resources
Find proteins for O15514 (Homo sapiens)
Explore O15514
Go to UniProtKB:  O15514
PHAROS:  O15514
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO15514
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChainsSequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB5I [auth E]210Homo sapiensMutation(s): 0
Gene Names: POLR2E
UniProt & NIH Common Fund Data Resources
Find proteins for P19388 (Homo sapiens)
Explore P19388
Go to UniProtKB:  P19388
PHAROS:  P19388
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP19388
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChainsSequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC2J [auth F]127Homo sapiensMutation(s): 0
Gene Names: POLR2FPOLRF
UniProt & NIH Common Fund Data Resources
Find proteins for P61218 (Homo sapiens)
Explore P61218
Go to UniProtKB:  P61218
PHAROS:  P61218
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61218
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChainsSequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB7K [auth G]172Homo sapiensMutation(s): 0
Gene Names: POLR2GRPB7
UniProt & NIH Common Fund Data Resources
Find proteins for P62487 (Homo sapiens)
Explore P62487
Go to UniProtKB:  P62487
PHAROS:  P62487
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62487
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChainsSequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC3L [auth H]150Homo sapiensMutation(s): 0
Gene Names: POLR2H
UniProt & NIH Common Fund Data Resources
Find proteins for P52434 (Homo sapiens)
Explore P52434
Go to UniProtKB:  P52434
PHAROS:  P52434
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP52434
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChainsSequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB9M [auth I]125Homo sapiensMutation(s): 0
Gene Names: POLR2I
UniProt & NIH Common Fund Data Resources
Find proteins for P36954 (Homo sapiens)
Explore P36954
Go to UniProtKB:  P36954
PHAROS:  P36954
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP36954
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChainsSequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC5N [auth J]67Homo sapiensMutation(s): 0
Gene Names: POLR2L
UniProt & NIH Common Fund Data Resources
Find proteins for P62875 (Homo sapiens)
Explore P62875
Go to UniProtKB:  P62875
PHAROS:  P62875
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62875
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 15
MoleculeChainsSequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB11-aO [auth K]117Homo sapiensMutation(s): 0
Gene Names: POLR2JPOLR2J1
UniProt
Find proteins for P52435 (Homo sapiens)
Explore P52435
Go to UniProtKB:  P52435
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP52435
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 16
MoleculeChainsSequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC4P [auth L]58Homo sapiensMutation(s): 0
Gene Names: POLR2K
UniProt & NIH Common Fund Data Resources
Find proteins for P53803 (Homo sapiens)
Explore P53803
Go to UniProtKB:  P53803
PHAROS:  P53803
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP53803
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 17
MoleculeChainsSequence LengthOrganismDetailsImage
Transcription initiation factor IIA subunit 1Q [auth M]376Homo sapiensMutation(s): 0
Gene Names: GTF2A1TF2A1
UniProt & NIH Common Fund Data Resources
Find proteins for P52655 (Homo sapiens)
Explore P52655
Go to UniProtKB:  P52655
PHAROS:  P52655
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP52655
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 18
MoleculeChainsSequence LengthOrganismDetailsImage
Transcription initiation factor IIA subunit 2R [auth N]109Homo sapiensMutation(s): 0
Gene Names: GTF2A2TF2A2
UniProt & NIH Common Fund Data Resources
Find proteins for P52657 (Homo sapiens)
Explore P52657
Go to UniProtKB:  P52657
PHAROS:  P52657
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP52657
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 19
MoleculeChainsSequence LengthOrganismDetailsImage
Transcription initiation factor IIBS [auth O]316Homo sapiensMutation(s): 0
Gene Names: GTF2BTF2BTFIIB
EC: 2.3.1.48
UniProt & NIH Common Fund Data Resources
Find proteins for Q00403 (Homo sapiens)
Explore Q00403
Go to UniProtKB:  Q00403
PHAROS:  Q00403
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ00403
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 20
MoleculeChainsSequence LengthOrganismDetailsImage
TATA-box-binding proteinT [auth P]339Homo sapiensMutation(s): 0
Gene Names: TBPGTF2D1TF2DTFIID
UniProt & NIH Common Fund Data Resources
Find proteins for P20226 (Homo sapiens)
Explore P20226
Go to UniProtKB:  P20226
PHAROS:  P20226
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP20226
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 21
MoleculeChainsSequence LengthOrganismDetailsImage
General transcription factor IIE subunit 1U [auth Q]439Homo sapiensMutation(s): 0
Gene Names: GTF2E1TF2E1
UniProt & NIH Common Fund Data Resources
Find proteins for P29083 (Homo sapiens)
Explore P29083
Go to UniProtKB:  P29083
PHAROS:  P29083
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP29083
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 22
MoleculeChainsSequence LengthOrganismDetailsImage
Transcription initiation factor IIE subunit betaV [auth R]291Homo sapiensMutation(s): 0
Gene Names: GTF2E2TF2E2
UniProt & NIH Common Fund Data Resources
Find proteins for P29084 (Homo sapiens)
Explore P29084
Go to UniProtKB:  P29084
PHAROS:  P29084
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP29084
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 23
MoleculeChainsSequence LengthOrganismDetailsImage
General transcription factor IIF subunit 1W [auth S]517Homo sapiensMutation(s): 0
Gene Names: GTF2F1RAP74
UniProt
Find proteins for P35269 (Homo sapiens)
Explore P35269
Go to UniProtKB:  P35269
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP35269
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 24
MoleculeChainsSequence LengthOrganismDetailsImage
General transcription factor IIF subunit 2X [auth T]249Homo sapiensMutation(s): 0
Gene Names: GTF2F2RAP30
EC: 3.6.4.12
UniProt & NIH Common Fund Data Resources
Find proteins for P13984 (Homo sapiens)
Explore P13984
Go to UniProtKB:  P13984
PHAROS:  P13984
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP13984
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 27
MoleculeChainsSequence LengthOrganismDetailsImage
TFIIH basal transcription factor complex helicase XPB subunitAA [auth W]782Homo sapiensMutation(s): 0
Gene Names: ERCC3XPBXPBC
EC: 3.6.4.12
UniProt & NIH Common Fund Data Resources
Find proteins for P19447 (Homo sapiens)
Explore P19447
Go to UniProtKB:  P19447
PHAROS:  P19447
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP19447
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 28
MoleculeChainsSequence LengthOrganismDetailsImage
TFIIH basal transcription factor complex helicase XPD subunitBA [auth X]760Homo sapiensMutation(s): 0
Gene Names: ERCC2XPDXPDC
EC: 3.6.4.12
UniProt & NIH Common Fund Data Resources
Find proteins for P18074 (Homo sapiens)
Explore P18074
Go to UniProtKB:  P18074
PHAROS:  P18074
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP18074
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 29
MoleculeChainsSequence LengthOrganismDetailsImage
General transcription factor IIH subunit 1CA [auth Y]548Homo sapiensMutation(s): 0
Gene Names: GTF2H1BTF2
UniProt & NIH Common Fund Data Resources
Find proteins for P32780 (Homo sapiens)
Explore P32780
Go to UniProtKB:  P32780
PHAROS:  P32780
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32780
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 30
MoleculeChainsSequence LengthOrganismDetailsImage
General transcription factor IIH subunit 4, p52DA [auth Z]462Homo sapiensMutation(s): 0
Gene Names: GTF2H4
UniProt & NIH Common Fund Data Resources
Find proteins for Q92759 (Homo sapiens)
Explore Q92759
Go to UniProtKB:  Q92759
PHAROS:  Q92759
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ92759
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 31
MoleculeChainsSequence LengthOrganismDetailsImage
General transcription factor IIH subunit 2EA [auth a]395Homo sapiensMutation(s): 0
Gene Names: GTF2H2BTF2P44
UniProt
Find proteins for Q13888 (Homo sapiens)
Explore Q13888
Go to UniProtKB:  Q13888
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13888
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 32
MoleculeChainsSequence LengthOrganismDetailsImage
General transcription factor IIH subunit 3FA [auth b]308Homo sapiensMutation(s): 0
Gene Names: GTF2H3
UniProt & NIH Common Fund Data Resources
Find proteins for Q13889 (Homo sapiens)
Explore Q13889
Go to UniProtKB:  Q13889
PHAROS:  Q13889
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13889
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 33
MoleculeChainsSequence LengthOrganismDetailsImage
General transcription factor IIH subunit 5GA [auth c]71Homo sapiensMutation(s): 0
Gene Names: GTF2H5C6orf175TTDA
UniProt & NIH Common Fund Data Resources
Find proteins for Q6ZYL4 (Homo sapiens)
Explore Q6ZYL4
Go to UniProtKB:  Q6ZYL4
PHAROS:  Q6ZYL4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ6ZYL4
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 34
MoleculeChainsSequence LengthOrganismDetailsImage
CDK-activating kinase assembly factor MAT1HA [auth d]309Homo sapiensMutation(s): 0
Gene Names: MNAT1CAP35MAT1RNF66
UniProt & NIH Common Fund Data Resources
Find proteins for P51948 (Homo sapiens)
Explore P51948
Go to UniProtKB:  P51948
PHAROS:  P51948
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP51948
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 35
MoleculeChainsSequence LengthOrganismDetailsImage
Cyclin-dependent kinase 7IA [auth e]346Homo sapiensMutation(s): 0
Gene Names: CDK7CAKCAK1CDKN7MO15STK1
EC: 2.7.11.22 (PDB Primary Data), 2.7.11.23 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for P50613 (Homo sapiens)
Explore P50613
Go to UniProtKB:  P50613
PHAROS:  P50613
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP50613
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 36
MoleculeChainsSequence LengthOrganismDetailsImage
Cyclin-HJA [auth f]323Homo sapiensMutation(s): 0
Gene Names: CCNH
UniProt & NIH Common Fund Data Resources
Find proteins for P51946 (Homo sapiens)
Explore P51946
Go to UniProtKB:  P51946
PHAROS:  P51946
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP51946
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 37
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 6KA [auth g]246Homo sapiensMutation(s): 0
Gene Names: MED6ARC33
UniProt & NIH Common Fund Data Resources
Find proteins for O75586 (Homo sapiens)
Explore O75586
Go to UniProtKB:  O75586
PHAROS:  O75586
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO75586
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 38
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 8LA [auth h]268Homo sapiensMutation(s): 0
Gene Names: MED8
UniProt & NIH Common Fund Data Resources
Find proteins for Q96G25 (Homo sapiens)
Explore Q96G25
Go to UniProtKB:  Q96G25
PHAROS:  Q96G25
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96G25
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 39
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 11MA [auth i]117Homo sapiensMutation(s): 0
Gene Names: MED11HSPC296
UniProt & NIH Common Fund Data Resources
Find proteins for Q9P086 (Homo sapiens)
Explore Q9P086
Go to UniProtKB:  Q9P086
PHAROS:  Q9P086
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9P086
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 40
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 17NA [auth j]651Homo sapiensMutation(s): 0
Gene Names: MED17ARC77CRSP6DRIP77DRIP80TRAP80
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NVC6 (Homo sapiens)
Explore Q9NVC6
Go to UniProtKB:  Q9NVC6
PHAROS:  Q9NVC6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NVC6
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 41
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 18OA [auth k]208Homo sapiensMutation(s): 0
Gene Names: MED18
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BUE0 (Homo sapiens)
Explore Q9BUE0
Go to UniProtKB:  Q9BUE0
PHAROS:  Q9BUE0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BUE0
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 42
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 20PA [auth l]212Homo sapiensMutation(s): 0
Gene Names: MED20TRFP
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H944 (Homo sapiens)
Explore Q9H944
Go to UniProtKB:  Q9H944
PHAROS:  Q9H944
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9H944
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 43
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 22QA [auth m]200Homo sapiensMutation(s): 0
Gene Names: MED22SURF5
UniProt & NIH Common Fund Data Resources
Find proteins for Q15528 (Homo sapiens)
Explore Q15528
Go to UniProtKB:  Q15528
PHAROS:  Q15528
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15528
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 44
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 27RA [auth n]311Homo sapiensMutation(s): 0
Gene Names: MED27CRSP34CRSP8
UniProt & NIH Common Fund Data Resources
Find proteins for Q6P2C8 (Homo sapiens)
Explore Q6P2C8
Go to UniProtKB:  Q6P2C8
PHAROS:  Q6P2C8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ6P2C8
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 45
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 28SA [auth o]178Homo sapiensMutation(s): 0
Gene Names: MED28EG1FKSG20
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H204 (Homo sapiens)
Explore Q9H204
Go to UniProtKB:  Q9H204
PHAROS:  Q9H204
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9H204
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 46
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 29TA [auth p]200Homo sapiensMutation(s): 0
Gene Names: MED29IXL
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NX70 (Homo sapiens)
Explore Q9NX70
Go to UniProtKB:  Q9NX70
PHAROS:  Q9NX70
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NX70
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 47
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 30UA [auth q]178Homo sapiensMutation(s): 0
Gene Names: MED30THRAP6TRAP25
UniProt & NIH Common Fund Data Resources
Find proteins for Q96HR3 (Homo sapiens)
Explore Q96HR3
Go to UniProtKB:  Q96HR3
PHAROS:  Q96HR3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96HR3
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 48
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 14VA [auth r]1454Homo sapiensMutation(s): 0
Gene Names: MED14ARC150CRSP2CXorf4DRIP150EXLM1RGR1TRAP170
UniProt & NIH Common Fund Data Resources
Find proteins for O60244 (Homo sapiens)
Explore O60244
Go to UniProtKB:  O60244
PHAROS:  O60244
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO60244
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 49
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 4WA [auth s]270Homo sapiensMutation(s): 0
Gene Names: MED4ARC36DRIP36VDRIPHSPC126
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NPJ6 (Homo sapiens)
Explore Q9NPJ6
Go to UniProtKB:  Q9NPJ6
PHAROS:  Q9NPJ6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NPJ6
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 50
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 7XA [auth t]233Homo sapiensMutation(s): 0
Gene Names: MED7ARC34CRSP9
UniProt & NIH Common Fund Data Resources
Find proteins for O43513 (Homo sapiens)
Explore O43513
Go to UniProtKB:  O43513
PHAROS:  O43513
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO43513
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 51
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 9YA [auth u]146Homo sapiensMutation(s): 0
Gene Names: MED9MED25
UniProt
Find proteins for Q9NWA0 (Homo sapiens)
Explore Q9NWA0
Go to UniProtKB:  Q9NWA0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NWA0
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 52
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 10ZA [auth v]135Homo sapiensMutation(s): 0
Gene Names: MED10L6TRG17TRG20
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BTT4 (Homo sapiens)
Explore Q9BTT4
Go to UniProtKB:  Q9BTT4
PHAROS:  Q9BTT4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9BTT4
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 53
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 19AB [auth w]244Homo sapiensMutation(s): 0
Gene Names: MED19LCMR1
UniProt & NIH Common Fund Data Resources
Find proteins for A0JLT2 (Homo sapiens)
Explore A0JLT2
Go to UniProtKB:  A0JLT2
PHAROS:  A0JLT2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0JLT2
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 54
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 21BB [auth x]144Homo sapiensMutation(s): 0
Gene Names: MED21SRB7SURB7
UniProt & NIH Common Fund Data Resources
Find proteins for Q13503 (Homo sapiens)
Explore Q13503
Go to UniProtKB:  Q13503
PHAROS:  Q13503
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13503
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 55
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 31CB [auth y]131Homo sapiensMutation(s): 0
Gene Names: MED31SOH1CGI-125
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y3C7 (Homo sapiens)
Explore Q9Y3C7
Go to UniProtKB:  Q9Y3C7
PHAROS:  Q9Y3C7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9Y3C7
Protein Feature View
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 56
MoleculeChainsSequence LengthOrganismDetailsImage
Mediator of RNA polymerase II transcription subunit 15DB [auth z]788Homo sapiensMutation(s): 0
Gene Names: MED15ARC105CTG7APCQAPTIG1TNRC7
UniProt & NIH Common Fund Data Resources
Find proteins for Q96RN5 (Homo sapiens)
Explore Q96RN5
Go to UniProtKB:  Q96RN5
PHAROS:  Q96RN5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96RN5
Protein Feature View
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 25
MoleculeChainsLengthOrganismImage
super core promoter sense strandY [auth U]100Homo sapiens
Protein Feature View
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 26
MoleculeChainsLengthOrganismImage
super core promoter antisense strandZ [auth V]100Homo sapiens
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
SF4
Query on SF4

Download Ideal Coordinates CCD File
QB [auth X]IRON/SULFUR CLUSTER
Fe4 S4
LJBDFODJNLIPKO-VKOJMFJBAC
 Ligand Interaction
ZN
Query on ZN

Download Ideal Coordinates CCD File
FB [auth A],
GB [auth A],
IB [auth B],
JB [auth C],
KB [auth I],
FB [auth A],
GB [auth A],
IB [auth B],
JB [auth C],
KB [auth I],
LB [auth I],
MB [auth J],
NB [auth L],
OB [auth O],
PB [auth Q],
RB [auth a],
SB [auth a],
TB [auth a],
UB [auth b],
VB [auth d],
WB [auth d]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
 Ligand Interaction
MG
Query on MG

Download Ideal Coordinates CCD File
EB [auth A],
HB [auth A]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.80 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report




Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Howard Hughes Medical Institute (HHMI)United States--
American Cancer SocietyUnited StatesIRG-15-173-21
National Institutes of Health/National Cancer Institute (NIH/NCI)United StatesP01-CA092584
National Institutes of Health/National Cancer Institute (NIH/NCI)United StatesU54-CA193419
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesT32-GM008382

Revision History  (Full details and data files)

  • Version 1.0: 2021-03-24
    Type: Initial release
  • Version 1.1: 2021-04-14
    Changes: Database references
