7JX4 | pdb_00007jx4

Crystal Structure of N-Lysine Peptoid-modified Collagen Triple Helix


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 0.95 Å
  • R-Value Free:
    0.158 (Depositor), 0.158 (DCC)
  • R-Value Work:
    0.140 (Depositor), 0.140 (DCC)
  • R-Value Observed:
    0.141 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 7JX4

This is version 2.0 of the entry. See complete history

Literature

Peptoid Residues Make Diverse, Hyperstable Collagen Triple-Helices.

Kessler, J.L.Kang, G.Qin, Z.Kang, H.Whitby, F.G.Cheatham, T.E.Hill, C.P.Li, Y.Yu, S.M.

(2021) J Am Chem Soc 143: 10910-10919

  • DOI: https://doi.org/10.1021/jacs.1c00708
  • Primary Citation Related Structures:
    7JX4, 7JX5

  • PubMed Abstract:

    As the only ribosomally encoded N-substituted amino acid, proline promotes distinct secondary protein structures. The high proline content in collagen, the most abundant protein in the human body, is crucial to forming its hallmark structure: the triple-helix. For over five decades, proline has been considered compulsory for synthetic designs aimed at recapitulating collagen's structure and properties. Here we describe that N-substituted glycines (N-glys), also known as peptoid residues, exhibit a general triple-helical propensity similar to or greater than proline, enabling synthesis of stable triple-helical collagen mimetic peptides (CMPs) with unprecedented side chain diversity. Supported by atomic-resolution crystal structures as well as circular dichroism and computational characterizations spanning over 30 N-gly-containing CMPs, we discovered that N-glys stabilize the triple-helix primarily by sterically preorganizing individual chains into the polyproline-II helix. We demonstrated that N-glys with exotic side chains including a "click"-able alkyne and a photosensitive side chain enable CMPs for functional applications including the spatiotemporal control of cell adhesion and migration. The structural principles uncovered in this study open up opportunities for a new generation of collagen-mimetic therapeutics and materials.


  • Organizational Affiliation
    • Department of Biomedical Engineering, University of Utah, Salt Lake City, Utah 84112, United States.

Macromolecule Content

  • Total Structure Weight: 5.83 kDa
  • Atom Count: 532
  • Modeled Residue Count: 69
  • Deposited Residue Count: 69
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:  Sequence   |   3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

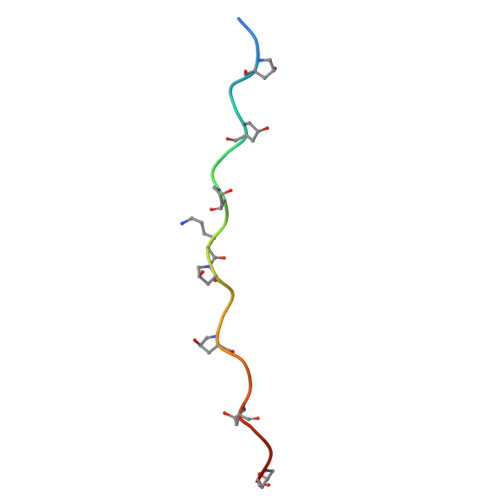

Collagen mimetic peptide with N-Lysine guest
A, B, C
23Homo sapiensMutation(s): 0

Small Molecules

Modified Residues  2 Unique
IDChains TypeFormula2D DiagramParent
HYP
Query on HYP
A, B, C
L-PEPTIDE LINKINGC5 H9 N O3PRO
NLY
Query on NLY
A, B, C
PEPTIDE LINKINGC6 H14 N2 O2GLY

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 0.95 Å
  • R-Value Free:  0.158 (Depositor), 0.158 (DCC)
  • R-Value Work:  0.140 (Depositor), 0.140 (DCC)
  • R-Value Observed: 0.141 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 72.365α = 90
b = 24.756β = 98.72
c = 25.357γ = 90
Software Package:
Software NamePurpose
HKL-2000data reduction
SCALEPACKdata scaling
PHASERphasing
REFMACrefinement
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR01AR071358

Revision History  (Full details and data files)

  • Version 1.0: 2021-07-21
    Type: Initial release
  • Version 1.1: 2021-07-28
    Changes: Database references
  • Version 1.2: 2021-08-11
    Changes: Database references
  • Version 1.3: 2023-10-18
    Changes: Data collection, Refinement description
  • Version 2.0: 2023-11-15
    Changes: Atomic model, Data collection, Derived calculations
