6PHH

Unliganded human transmission blocking antibody 2544


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free: 0.249
  • R-Value Work: 0.218
  • R-Value Observed: 0.219

wwPDB Validation 3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Potent antibody lineage against malaria transmission elicited by human vaccination with Pfs25.

McLeod, B.Miura, K.Scally, S.W.Bosch, A.Nguyen, N.Shin, H.Kim, D.Volkmuth, W.Ramisch, S.Chichester, J.A.Streatfield, S.Woods, C.Schief, W.R.Emerling, D.King, C.R.Julien, J.P.

(2019) Nat Commun 10: 4328-4328

  • DOI: 10.1038/s41467-019-11980-6
  • Structures With Same Primary Citation

  • PubMed Abstract:
  • Transmission-blocking vaccines have the potential to be key contributors to malaria elimination. Such vaccines elicit antibodies that inhibit parasites during their development in Anopheles mosquitoes, thus breaking the cycle of transmission. To date ...

    Transmission-blocking vaccines have the potential to be key contributors to malaria elimination. Such vaccines elicit antibodies that inhibit parasites during their development in Anopheles mosquitoes, thus breaking the cycle of transmission. To date, characterization of humoral responses to Plasmodium falciparum transmission-blocking vaccine candidate Pfs25 has largely been conducted in pre-clinical models. Here, we present molecular analyses of human antibody responses generated in a clinical trial evaluating Pfs25 vaccination. From a collection of monoclonal antibodies with transmission-blocking activity, we identify the most potent transmission-blocking antibody yet described against Pfs25; 2544. The interactions of 2544 and three other antibodies with Pfs25 are analyzed by crystallography to understand structural requirements for elicitation of human transmission-blocking responses. Our analyses provide insights into Pfs25 immunogenicity and epitope potency, and detail an affinity maturation pathway for a potent transmission-blocking antibody in humans. Our findings can be employed to guide the design of improved malaria transmission-blocking vaccines.


    Organizational Affiliation

    Department of Immunology, University of Toronto, 1 King's College Circle, Toronto, ON, M5S 1A8, Canada. jean-philippe.julien@sickkids.ca.

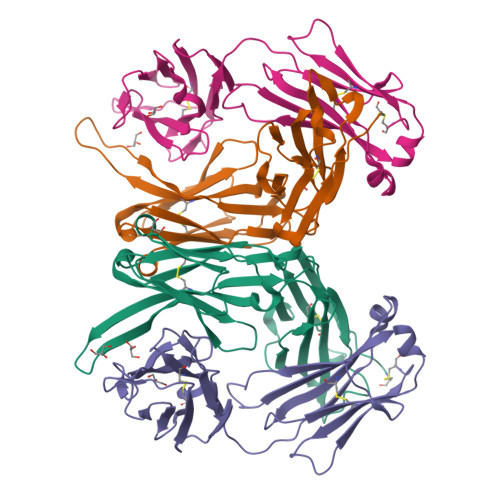

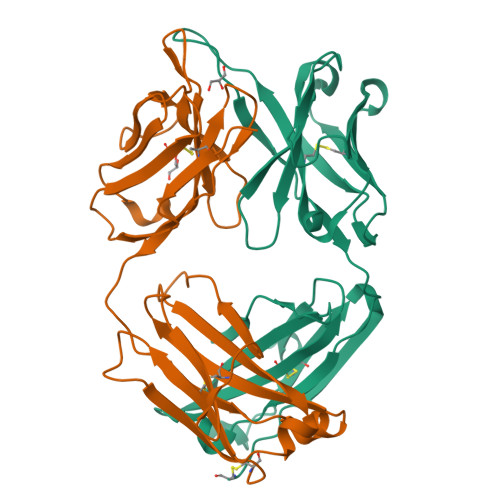

Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
2544 Antibody Fab, Heavy Chain
A, C
228Homo sapiensMutation(s): 0
Protein Feature View
  • Reference Sequence

Find similar proteins by: Sequence  |  Structure

Entity ID: 2
MoleculeChainsSequence LengthOrganismDetails
2544 Antibody Fab, Light Chain
B, D
217Homo sapiensMutation(s): 0
Protein Feature View
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
GOL
Query on GOL

Download CCD File
B, C, D
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free: 0.249
  • R-Value Work: 0.218
  • R-Value Observed: 0.219
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 172.53α = 90
b = 43.65β = 111.22
c = 138.57γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Bill & Melinda Gates FoundationCanadaOPP1108403

Revision History

  • Version 1.0: 2019-10-02
    Type: Initial release
  • Version 1.1: 2019-10-09
    Changes: Data collection, Database references
