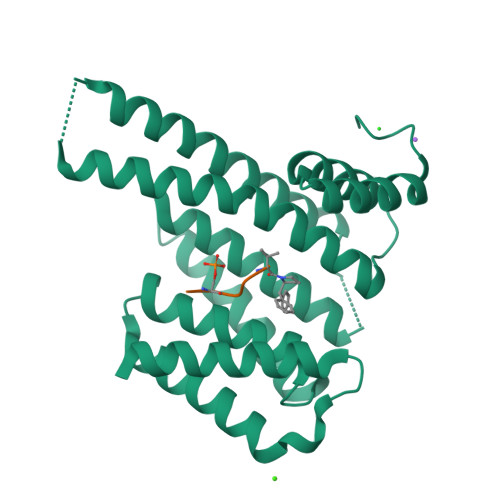

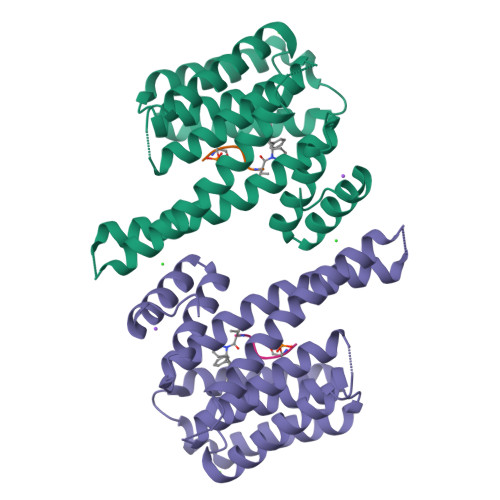

Crystal structure of C-terminal modified Tau peptide-hybrid 3.2e with 14-3-3sigma

Experimental Data Snapshot

  • Resolution: 2.00 Å
  • R-Value Free: 0.229
  • R-Value Work: 0.200
  • R-Value Observed: 0.202

wwPDB Validation   3D Report Full Report

Ligand Structure Quality Assessment

This is version 2.2 of the entry. See complete history


Inhibition of 14-3-3/Tau by Hybrid Small-Molecule Peptides Operating via Two Different Binding Modes.

Andrei, S.A.Meijer, F.A.Neves, J.F.Brunsveld, L.Landrieu, I.Ottmann, C.Milroy, L.G.

(2018) ACS Chem Neurosci 9: 2639-2654

  • DOI: https://doi.org/10.1021/acschemneuro.8b00118
  • Primary Citation of Related Structures:
    6FAU, 6FAV, 6FAW, 6FBW, 6FBY, 6FI4, 6FI5

  • PubMed Abstract:

    Current molecular hypotheses have not yet delivered marketable treatments for Alzheimer's disease (AD), arguably due to a lack of understanding of AD biology and an overreliance on conventional drug modalities. Protein-protein interactions (PPIs) are emerging drug targets, which show promise for the treatment of, e.g., cancer, but are still underexploited for treating neurodegenerative diseases. 14-3-3 binding to phosphorylated Tau is a promising PPI drug target based on its reported destabilizing effect on microtubules, leading to enhanced neurofibrillary tangle formation as a potential cause of AD-related neurodegeneration. Inhibition of 14-3-3/Tau may therefore be neuroprotective. Previously, we reported the structure-guided development of modified peptide inhibitors of 14-3-3/Tau. Here, we report further efforts to optimize the binding mode and activity of our modified Tau peptides through a combination of chemical synthesis, biochemical assays, and X-ray crystallography. Most notably, we were able to characterize two different high-affinity binding modes, both of which inhibited 14-3-3-binding to full-length PKA-phosphorylated Tau protein in vitro as measured by NMR spectroscopy. Our findings, besides producing useful tool inhibitor compounds for studying 14-3-3/Tau, have enhanced our understanding of the molecular parameters for inhibiting 14-3-3/Tau, which are important milestones toward the establishment of our 14-3-3 PPI hypothesis.

  • Organizational Affiliation

    Laboratory of Chemical Biology, Department of Biomedical Engineering and Institute for Complex Molecular Systems , Technische Universiteit Eindhoven , Den Dolech 2 , 5612 AZ Eindhoven , The Netherlands.

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
14-3-3 protein sigma236Homo sapiensMutation(s): 0
Gene Names: SFNHME1
UniProt & NIH Common Fund Data Resources
Find proteins for P31947 (Homo sapiens)
Explore P31947
Go to UniProtKB:  P31947
PHAROS:  P31947
GTEx:  ENSG00000175793
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP31947
Sequence Annotations
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
PRO-SEP-LEU-PRO-DVA5Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P10636 (Homo sapiens)
Explore P10636
Go to UniProtKB:  P10636
PHAROS:  P10636
GTEx:  ENSG00000186868
Entity Groups
UniProt GroupP10636
Sequence Annotations
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Resolution: 2.00 Å
  • R-Value Free: 0.229
  • R-Value Work: 0.200
  • R-Value Observed: 0.202
  • Space Group: C 2 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 62.38α = 90
b = 148.46β = 90
c = 78.04γ = 90
Software Package:
Software NamePurpose
MOSFLMdata reduction
Aimlessdata scaling
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Netherlands Organization for Scientific ResearchNetherlandsECHO-STIP 717.014.001

Revision History  (Full details and data files)

  • Version 1.0: 2018-05-16
    Type: Initial release
  • Version 2.0: 2018-11-28
    Changes: Atomic model, Data collection, Database references
  • Version 2.1: 2020-04-29
    Changes: Derived calculations
  • Version 2.2: 2024-01-17
    Changes: Data collection, Database references, Derived calculations, Refinement description
