 5CF5 | pdb_00005cf5

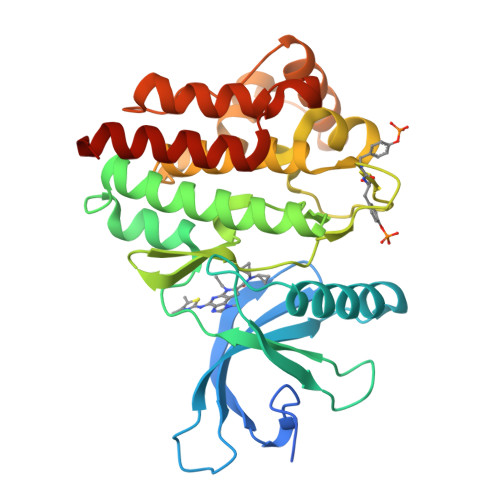

CRYSTAL STRUCTURE OF JANUS KINASE 2 IN COMPLEX WITH N,N-DICYCLOPROPYL-7-[(DIMETHYL-1,3-THIAZOL-2-YL)AMINO]-10-ETHYL-3-METHYL-3,5,8,10-TETRAAZATRICYCLO[7.3.0.02,6] DODECA-1(9),2(6),4,7,11-PENTAENE-11-CARBOXAMIDE

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.45 Å
  • R-Value Free:
    0.199 (Depositor), 0.196 (DCC)
  • R-Value Work:
    0.186 (Depositor), 0.184 (DCC)
  • R-Value Observed:
    0.187 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 5CF5

Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history.

Literature

Structure-Based Design of Selective Janus Kinase 2 Imidazo[4,5-d]pyrrolo[2,3-b]pyridine Inhibitors.

Hart, A.C., Schroeder, G.M., Wan, H., Grebinski, J., Inghrim, J., Kempson, J., Guo, J., Pitts, W.J., Tokarski, J.S., Sack, J.S., Khan, J.A., Lippy, J., Lorenzi, M.V., You, D., McDevitt, T., Vuppugalla, R., Zhang, Y., Lombardo, L.J., Trainor, G.L., Purandare, A.V.

(2015) ACS Med Chem Lett 6: 845-849

  • DOI: https://doi.org/10.1021/acsmedchemlett.5b00225
  • Primary Citation Related Structures:
    5CF4, 5CF5, 5CF6

  • PubMed Abstract:

    Early hit to lead work on a pyrrolopyridine chemotype provided access to compounds with biochemical and cellular potency against Janus kinase 2 (JAK2). Structure-based drug design along the extended hinge region of JAK2 led to the identification of an important H-bond interaction with the side chain of Tyr 931, which improved JAK family selectivity. The 4,5-dimethyl thiazole analogue 18 demonstrated high levels of JAK family selectivity and was identified as a promising lead for the program.

    • Organizational Affiliation:
    • Bristol-Myers Squibb Research & Development , Princeton, New Jersey 08543, United States.

Macromolecule Content

  • Total Structure Weight: 76.63 kDa
  • Atom Count: 5,094
  • Modeled Residue Count: 585
  • Deposited Residue Count: 642
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:
|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Tyrosine-protein kinase JAK2
A, B
321Homo sapiensMutation(s): 0
Gene Names: JAK2
EC: 2.7.10.2
UniProt & NIH Common Fund Data Resources
Find proteins for O60674 (Homo sapiens)
Explore O60674
Go to UniProtKB:  O60674
PHAROS:  O60674
GTEx:  ENSG00000096968
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO60674
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
50W

Query on 50W


Download:Ideal Coordinates CCD File
C [auth A],
D [auth B]		N,N-dicyclopropyl-4-[(4,5-dimethyl-1,3-thiazol-2-yl)amino]-6-ethyl-1-methyl-1,6-dihydroimidazo[4,5-d]pyrrolo[2,3-b]pyridine-7-carboxamide
C23 H27 N7 O S
IHSTUTBJVPZZHZ-UHFFFAOYSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
PTR
Query on PTR
A, B
L-PEPTIDE LINKINGC9 H12 N O6 PTYR
Binding Affinity Annotations
IDSourceBinding Affinity
50W BindingDB:  5CF5 IC50: min: 2.5, max: 65 (nM) from 2 assay(s)

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.45 Å
  • R-Value Free:  0.199 (Depositor), 0.196 (DCC)
  • R-Value Work:  0.186 (Depositor), 0.184 (DCC)
  • R-Value Observed: 0.187 (Depositor)
Space Group: P 41
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 111.92α = 90
b = 111.92β = 90
c = 70.26γ = 90
Software Package:
Software NamePurpose
BUSTERrefinement
HKL-2000data reduction
HKL-2000data scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


View more in-depth experimental data

Entry History

Deposition Data

  • Released Date: 2015-08-26
    • Deposition Author(s): Sack, J.S.

Revision History  (Full details and data files)

  • Version 1.0: 2015-08-26
    Type: Initial release
  • Version 1.1: 2015-09-02
    Changes: Database references
  • Version 1.2: 2024-11-20
    Changes: Data collection, Database references, Derived calculations, Structure summary
