4OWL

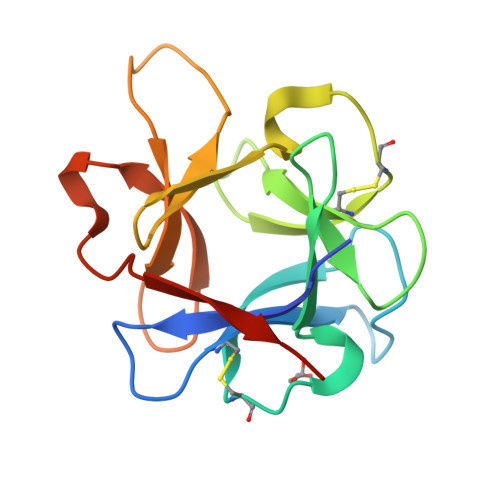

Crystal Structure of the Vibrio vulnificus Hemolysin/Cytolysin Beta-Trefoil Lectin with N-Acetyl-D-Lactosamine Bound


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.1 Å
  • R-Value Free: 0.188
  • R-Value Work: 0.162

wwPDB Validation 3D Report Full Report


This is version 1.5 of the entry. See complete history

Literature

Glycan Specificity of the Vibrio vulnificus Hemolysin Lectin Outlines Evolutionary History of Membrane Targeting by a Toxin Family.

Kaus, K.Lary, J.W.Cole, J.L.Olson, R.

(2014) J.Mol.Biol. 426: 2800-2812

  • DOI: 10.1016/j.jmb.2014.05.021
  • Primary Citation of Related Structures:

  • PubMed Abstract:
  • Pore-forming toxins (PFTs) are a class of pathogen-secreted molecules that oligomerize to form transmembrane channels in cellular membranes. Determining the mechanism for how PFTs bind membranes is important in understanding their role in disease and ...

    Pore-forming toxins (PFTs) are a class of pathogen-secreted molecules that oligomerize to form transmembrane channels in cellular membranes. Determining the mechanism for how PFTs bind membranes is important in understanding their role in disease and for developing possible ways to block their action. Vibrio vulnificus, an aquatic pathogen responsible for severe food poisoning and septicemia in humans, secretes a PFT called V. vulnificus hemolysin (VVH), which contains a single C-terminal targeting domain predicted to resemble a β-trefoil lectin fold. In order to understand the selectivity of the lectin for glycan motifs, we expressed the isolated VVH β-trefoil domain and used glycan-chip screening to identify that VVH displays a preference for terminal galactosyl groups including N-acetyl-d-galactosamine and N-acetyl-d-lactosamine. The X-ray crystal structure of the VVH lectin domain solved to 2.0Å resolution reveals a heptameric ring arrangement similar to the oligomeric form of the related, but inactive, lectin from Vibrio cholerae cytolysin. Structures bound to glycerol, N-acetyl-d-galactosamine, and N-acetyl-d-lactosamine outline a common and versatile mode of recognition allowing VVH to target a wide variety of cell-surface ligands. Sequence analysis in light of our structural and functional data suggests that VVH may represent an earlier step in the evolution of Vibrio PFTs.


    Organizational Affiliation

    Department of Molecular Biology and Biochemistry, Wesleyan University, 52 Lawn Avenue, Middletown, CT 06459, USA.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Cytolysin
A, B, C, D, E, F, G
138Vibrio vulnificus (strain CMCP6)Mutation(s): 0
Gene Names: vvhA
Find proteins for P19247 (Vibrio vulnificus (strain CMCP6))
Go to UniProtKB:  P19247
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
GOL
Query on GOL

Download SDF File
Download CCD File
A, C, D, E, F
GLYCEROL
GLYCERIN; PROPANE-1,2,3-TRIOL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
 Ligand Interaction
GAL
Query on GAL

Download SDF File
Download CCD File
B, C, D, E, F, G
BETA-D-GALACTOSE
C6 H12 O6
WQZGKKKJIJFFOK-FPRJBGLDSA-N
 Ligand Interaction
NAG
Query on NAG

Download SDF File
Download CCD File
B, C, D, E, F
N-ACETYL-D-GLUCOSAMINE
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.1 Å
  • R-Value Free: 0.188
  • R-Value Work: 0.162
  • Space Group: C 1 2 1
Unit Cell:
Length (Å)Angle (°)
a = 326.905α = 90.00
b = 79.843β = 95.71
c = 55.607γ = 90.00
Software Package:
Software NamePurpose
PHASERphasing
HKL-2000data scaling
HKL-2000data reduction
SCALEPACKdata scaling
PDB_EXTRACTdata extraction
PHENIXrefinement

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History & Funding Information

Deposition Data

  • Deposited Date: 2014-02-02
  • Released Date: 2014-05-28
  • Deposition Author(s): Kaus, K., Olson, R.

Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious DiseasesUnited States1R15AI101977

Revision History

  • Version 1.0: 2014-05-28
    Type: Initial release
  • Version 1.1: 2014-07-30
    Type: Database references
  • Version 1.2: 2015-02-25
    Type: Derived calculations
  • Version 1.3: 2015-10-07
    Type: Other
  • Version 1.4: 2017-09-27
    Type: Advisory, Author supporting evidence, Derived calculations
  • Version 1.5: 2017-11-01
    Type: Derived calculations
