4MLM

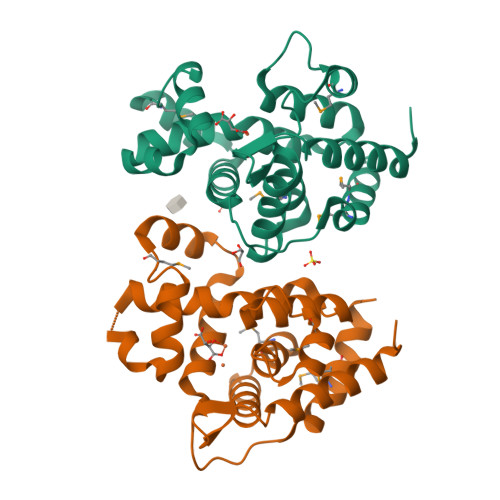

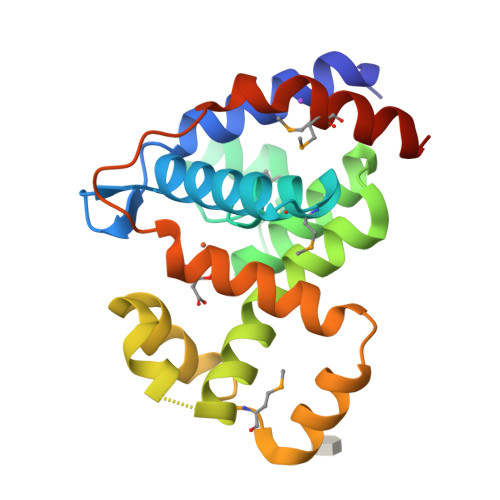

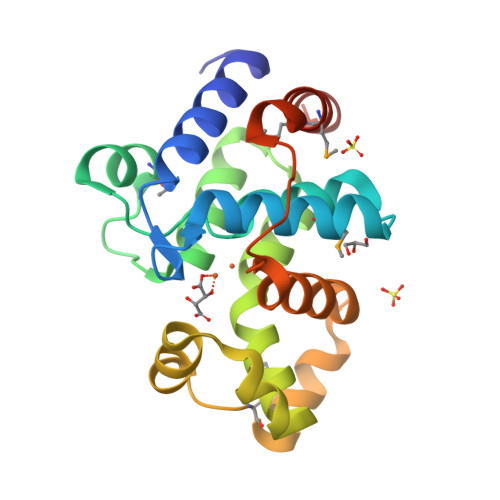

Crystal Structure of PhnZ from uncultured bacterium HF130_AEPn_1


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.198
  • R-Value Work: 0.172
  • R-Value Observed: 0.173

wwPDB Validation 3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Crystal structure of PhnZ in complex with substrate reveals a di-iron oxygenase mechanism for catabolism of organophosphonates.

van Staalduinen, L.M.McSorley, F.R.Schiessl, K.Seguin, J.Wyatt, P.B.Hammerschmidt, F.Zechel, D.L.Jia, Z.

(2014) Proc Natl Acad Sci U S A 111: 5171-5176

  • DOI: 10.1073/pnas.1320039111
  • Structures With Same Primary Citation

  • PubMed Abstract:
  • The enzymes PhnY and PhnZ comprise an oxidative catabolic pathway that enables marine bacteria to use 2-aminoethylphosphonic acid as a source of inorganic phosphate. PhnZ is notable for catalyzing the oxidative cleavage of a carbon-phosphorus bond us ...

    The enzymes PhnY and PhnZ comprise an oxidative catabolic pathway that enables marine bacteria to use 2-aminoethylphosphonic acid as a source of inorganic phosphate. PhnZ is notable for catalyzing the oxidative cleavage of a carbon-phosphorus bond using Fe(II) and dioxygen, despite belonging to a large family of hydrolytic enzymes, the HD-phosphohydrolase superfamily. We have determined high-resolution structures of PhnZ bound to its substrate, (R)-2-amino-1-hydroxyethylphosphonate (2.1 Å), and a buffer additive, l-tartrate (1.7 Å). The structures reveal PhnZ to have an active site containing two Fe ions coordinated by four histidines and two aspartates that is strikingly similar to the carbon-carbon bond cleaving enzyme, myo-inositol-oxygenase. The exception is Y24, which forms a transient ligand interaction at the dioxygen binding site of Fe2. Site-directed mutagenesis and kinetic analysis with substrate analogs revealed the roles of key active site residues. A fifth histidine that is conserved in the PhnZ subclade, H62, specifically interacts with the substrate 1-hydroxyl. The structures also revealed that Y24 and E27 mediate a unique induced-fit mechanism whereby E27 specifically recognizes the 2-amino group of the bound substrate and toggles the release of Y24 from the active site, thereby creating space for molecular oxygen to bind to Fe2. Structural comparisons of PhnZ reveal an evolutionary connection between Fe(II)-dependent hydrolysis of phosphate esters and oxidative carbon-phosphorus or carbon-carbon bond cleavage, thus uniting the diverse chemistries that are found in the HD superfamily.


    Organizational Affiliation

    Department of Biomedical and Molecular Sciences, Queen's University, Kingston, ON, Canada K7L 3N6.



Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Predicted HD phosphohydrolase PhnZA, B196uncultured bacterium HF130_AEPn_1Mutation(s): 0
Gene Names: ALOHA_HF130_AEPn_1_06cphnZ
EC: 1.13.11.78
Find proteins for D0E8I5 (Uncultured bacterium HF130_AEPn_1)
Explore D0E8I5
Go to UniProtKB:  D0E8I5
Protein Feature View
 ( Mouse scroll to zoom / Hold left click to move )
  • Reference Sequence
Small Molecules
Ligands 6 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
BOG
Query on BOG

Download CCD File
B
octyl beta-D-glucopyranoside
C14 H28 O6
HEGSGKPQLMEBJL-RKQHYHRCSA-N
 Ligand Interaction
TLA
Query on TLA

Download CCD File
A, B
L(+)-TARTARIC ACID
C4 H6 O6
FEWJPZIEWOKRBE-JCYAYHJZSA-N
 Ligand Interaction
SO4
Query on SO4

Download CCD File
A
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
 Ligand Interaction
GOL
Query on GOL

Download CCD File
A
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
 Ligand Interaction
FE
Query on FE

Download CCD File
A, B
FE (III) ION
Fe
VTLYFUHAOXGGBS-UHFFFAOYSA-N
 Ligand Interaction
NA
Query on NA

Download CCD File
B
SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
 Ligand Interaction
Modified Residues  1 Unique
IDChainsTypeFormula2D DiagramParent
MSE
Query on MSE
A,BL-PEPTIDE LINKINGC5 H11 N O2 SeMET
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.198
  • R-Value Work: 0.172
  • R-Value Observed: 0.173
  • Space Group: P 21 21 2
  • Diffraction Data DOI: 10.15785/SBGRID/73 SBGrid
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 104.67α = 90
b = 76.04β = 90
c = 60.7γ = 90
Software Package:
Software NamePurpose
Blu-Icedata collection
autoSHARPphasing
PHENIXrefinement
XDSdata reduction
XDSdata scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History

  • Version 1.0: 2014-04-16
    Type: Initial release
  • Version 1.1: 2017-11-15
    Changes: Advisory, Refinement description
  • Version 1.2: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Data collection, Database references, Derived calculations, Structure summary
