4I06

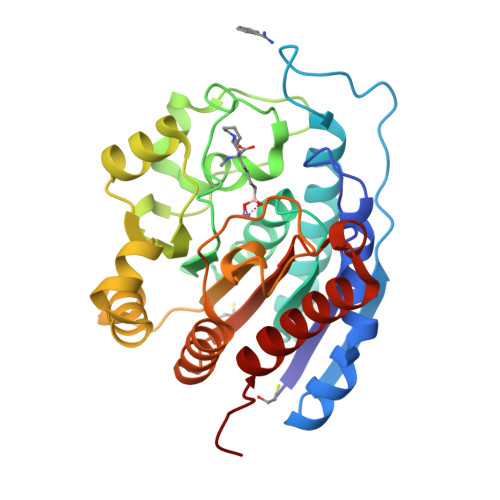

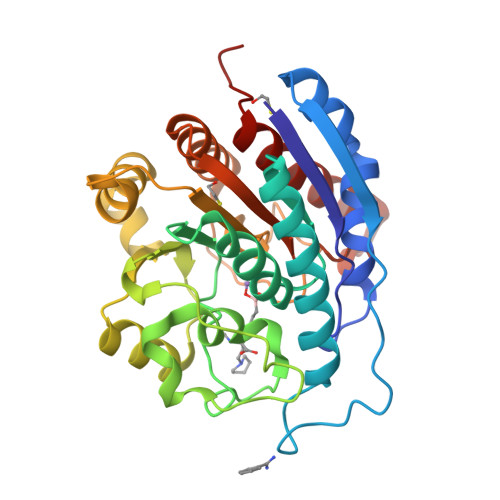

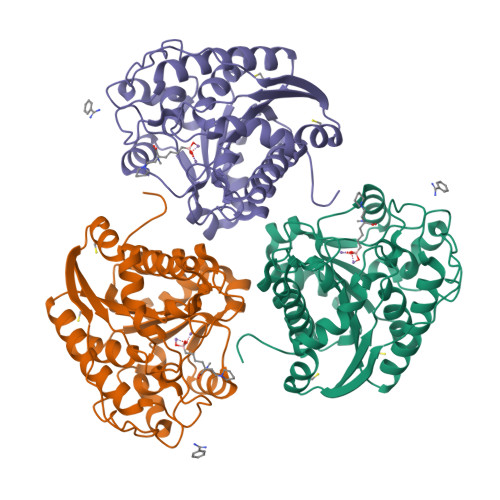

Crystal structure of human Arginase-2 complexed with inhibitor 14

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.195
  • R-Value Work: 0.164
  • R-Value Observed: 0.166

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history.


Literature

Discovery of (R)-2-Amino-6-borono-2-(2-(piperidin-1-yl)ethyl)hexanoic Acid and Congeners As Highly Potent Inhibitors of Human Arginases I and II for Treatment of Myocardial Reperfusion Injury.

Van Zandt, M.C., Whitehouse, D.L., Golebiowski, A., Ji, M.K., Zhang, M., Beckett, R.P., Jagdmann, G.E., Ryder, T.R., Sheeler, R., Andreoli, M., Conway, B., Mahboubi, K., D'Angelo, G., Mitschler, A., Cousido-Siah, A., Ruiz, F.X., Howard, E.I., Podjarny, A.D., Schroeter, H.

(2013) J Med Chem 56: 2568-2580

  • DOI: 10.1021/jm400014c
  • Primary Citation of Related Structures:
    4I06, 4HWW, 4HXQ, 4HZE

  • PubMed Abstract:

    • Recent efforts to identify treatments for myocardial ischemia reperfusion injury have resulted in the discovery of a novel series of highly potent α,α-disubstituted amino acid-based arginase inhibitors. The lead candidate, (R)-2-amino-6-borono-2-(2-(pipe ...

    Recent efforts to identify treatments for myocardial ischemia reperfusion injury have resulted in the discovery of a novel series of highly potent α,α-disubstituted amino acid-based arginase inhibitors. The lead candidate, (R)-2-amino-6-borono-2-(2-(piperidin-1-yl)ethyl)hexanoic acid, compound 9, inhibits human arginases I and II with IC50s of 223 and 509 nM, respectively, and is active in a recombinant cellular assay overexpressing human arginase I (CHO cells). It is 28% orally bioavailable and significantly reduces the infarct size in a rat model of myocardial ischemia/reperfusion injury. Herein, we report the design, synthesis, and structure-activity relationships (SAR) for this novel series of inhibitors along with pharmacokinetic and in vivo efficacy data for compound 9 and X-ray crystallography data for selected lead compounds cocrystallized with arginases I and II.

    Organizational Affiliation:

    Institutes for Pharmaceutical Discovery , LLC, 23 Business Park Drive, Branford, Connecticut 06405, USA. mvzandt@snet.net



Macromolecules
Find similar proteins by:
(by identity cutoff)  |  Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Arginase-2, mitochondrial A, B, C306Homo sapiensMutation(s): 0
Gene Names: ARG2
EC: 3.5.3.1
Find proteins for P78540 (Homo sapiens)
Explore P78540
Go to UniProtKB:  P78540
NIH Common Fund Data Resources
PHAROS:  P78540
GTEx:  ENSG00000081181
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
X8A
Query on X8A
Download Ideal Coordinates CCD File
A, B, C
[(5R)-5-carboxy-5-(methylamino)-7-(piperidin-1-yl)heptyl](trihydroxy)borate(1-)
C14 H30 B N2 O5
XUSDRKPOXSYXRQ-CQSZACIVSA-N		 Ligand Interaction
BEN
Query on BEN
Download Ideal Coordinates CCD File
A, B, C
BENZAMIDINE
C7 H8 N2
PXXJHWLDUBFPOL-UHFFFAOYSA-N		 Ligand Interaction
BME
Query on BME
Download Ideal Coordinates CCD File
A, B, C
BETA-MERCAPTOETHANOL
C2 H6 O S
DGVVWUTYPXICAM-UHFFFAOYSA-N		 Ligand Interaction
MN
Query on MN
Download Ideal Coordinates CCD File
A, B, C
MANGANESE (II) ION
Mn
WAEMQWOKJMHJLA-UHFFFAOYSA-N		 Ligand Interaction
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
X8AIC50 :  67   nM  PDBBind
X8AIC50:  67   nM  Binding MOAD
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.195
  • R-Value Work: 0.164
  • R-Value Observed: 0.166
  • Space Group: P 42 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 127.805α = 90
b = 127.805β = 90
c = 159.094γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PDB_EXTRACTdata extraction
HKL-2000data collection
HKL-2000data reduction
HKL-2000data scaling
AMoREphasing

Structure Validation

View Full Validation Report


View more in-depth experimental data

Entry History

Deposition Data

Revision History

  • Version 1.0: 2013-03-20
    Type: Initial release
  • Version 1.1: 2013-04-10
    Changes: Database references
  • Version 1.2: 2018-01-24
    Changes: Structure summary
