3OMM

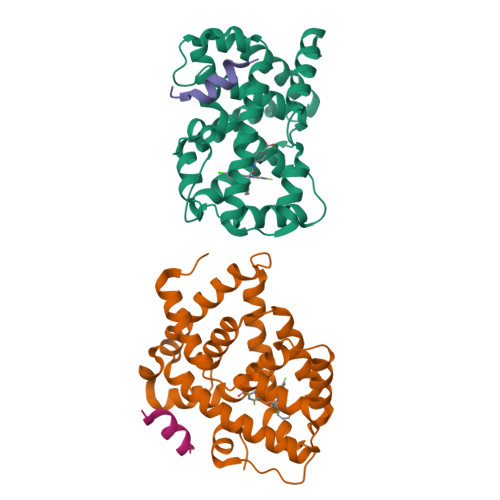

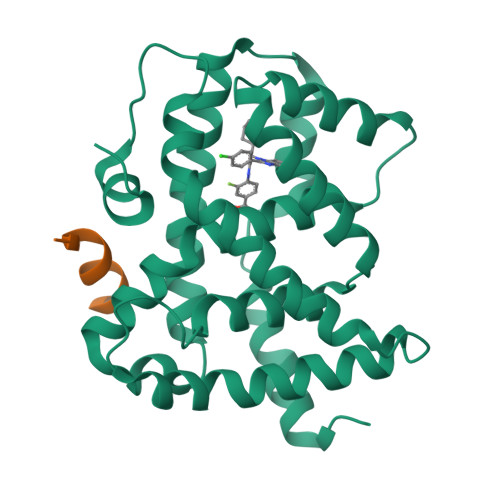

Crystal structure of human FXR in complex with 4-({(2S)-2-[2-(4-chlorophenyl)-5,6-difluoro-1H-benzimidazol-1-yl]-2-cyclohexylacetyl}amino)-3-fluorobenzoic acid


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.256
  • R-Value Work: 0.215
  • R-Value Observed: 0.217

Starting Model: other
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.5 of the entry. See complete history


Literature

Optimization of a novel class of benzimidazole-based farnesoid X receptor (FXR) agonists to improve physicochemical and ADME properties

Richter, H.G.F.Benson, G.M.Bleicher, K.H.Blum, D.Chaput, E.Clemann, N.Feng, S.Gardes, C.Grether, U.Hartman, P.Kuhn, B.Martin, R.E.Plancher, J.M.Rudolph, M.G.Schuler, F.Taylor, S.

(2011) Bioorg Med Chem Lett 21: 1134-1140

  • DOI: https://doi.org/10.1016/j.bmcl.2010.12.123
  • Primary Citation of Related Structures:
    3OLF, 3OMK, 3OMM, 3OOF, 3OOK

  • PubMed Abstract:

    Structure-guided lead optimization of recently described benzimidazolyl acetamides addressed the key liabilities of the previous lead compound 1. These efforts culminated in the discovery of 4-{(S)-2-[2-(4-chloro-phenyl)-5,6-difluoro-benzoimidazol-1-yl]-2-cyclohexyl-acetylamino}-3-fluoro-benzoic acid 7g, a highly potent and selective FXR agonist with excellent physicochemical and ADME properties and potent lipid lowering activity after oral administration to LDL receptor deficient mice.


  • Organizational Affiliation

    F. Hoffmann-La Roche Ltd, Pharmaceutical Research, Grenzacherstrasse, CH-4070 Basel, Switzerland. hans.richter@roche.com


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Bile acid receptor
A, C
233Homo sapiensMutation(s): 2
Gene Names: NR1H4HCG_20893
UniProt & NIH Common Fund Data Resources
Find proteins for Q96RI1 (Homo sapiens)
Go to UniProtKB:  Q96RI1
PHAROS:  Q96RI1
GTEx:  ENSG00000012504
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
peptide of Nuclear receptor coactivator 1
B, D
14N/AMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q15788 (Homo sapiens)
Go to UniProtKB:  Q15788
PHAROS:  Q15788
GTEx:  ENSG00000084676
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
OMM
Query on OMM

Download Ideal Coordinates CCD File
E [auth A],
F [auth C]
4-({(2S)-2-[2-(4-chlorophenyl)-5,6-difluoro-1H-benzimidazol-1-yl]-2-cyclohexylacetyl}amino)-3-fluorobenzoic acid
C28 H23 Cl F3 N3 O3
DGVNGMXASUNRAO-VWLOTQADSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
OMM BindingDB:  3OMM IC50: min: 35.7, max: 37 (nM) from 2 assay(s)
EC50: 300 (nM) from 1 assay(s)
PDBBind:  3OMM IC50: 37 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.256
  • R-Value Work: 0.215
  • R-Value Observed: 0.217
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 72.13α = 90
b = 83.94β = 90
c = 190.48γ = 90
Software Package:
Software NamePurpose
PHASERphasing
BUSTERrefinement
XDSdata reduction
SADABSdata scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2011-01-19
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2014-02-26
    Changes: Database references
  • Version 1.3: 2017-11-08
    Changes: Refinement description
  • Version 1.4: 2024-03-20
    Changes: Data collection, Database references, Derived calculations
  • Version 1.5: 2024-04-03
    Changes: Refinement description
