3UT5

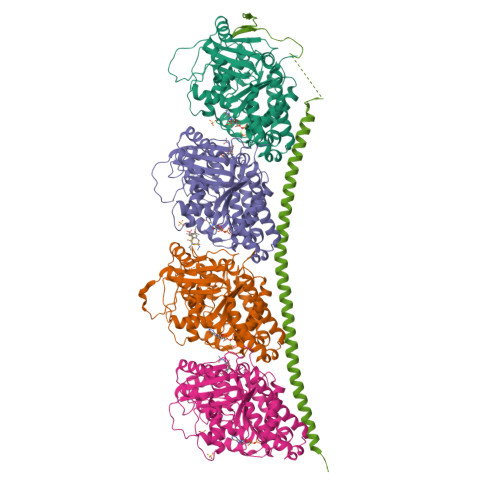

Tubulin-Colchicine-Ustiloxin: Stathmin-like domain complex


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.73 Å
  • R-Value Free: 0.222
  • R-Value Work: 0.184

wwPDB Validation 3D Report Full Report


This is version 1.2 of the entry. See complete history

Literature

Structural plasticity of tubulin assembly probed by vinca-domain ligands.

Ranaivoson, F.M.Gigant, B.Berritt, S.Joullie, M.Knossow, M.

(2012) Acta Crystallogr.,Sect.D 68: 927-934

  • DOI: 10.1107/S0907444912017143
  • Primary Citation of Related Structures:  4EB6

  • PubMed Abstract:
  • Vinca-domain ligands are compounds that bind to tubulin at its inter-heterodimeric interface and favour heterogeneous protofilament-like assemblies, giving rise to helices and rings. This is the basis for their inhibition of microtubule assembly, for ...

    Vinca-domain ligands are compounds that bind to tubulin at its inter-heterodimeric interface and favour heterogeneous protofilament-like assemblies, giving rise to helices and rings. This is the basis for their inhibition of microtubule assembly, for their antimitotic activities and for their use in anticancer chemotherapy. Ustiloxins are vinca-domain ligands with a well established total synthesis. A 2.7 Å resolution structure of ustiloxin D bound to the vinca domain embedded in the complex of two tubulins with the stathmin-like domain of RB3 (T(2)R) has been determined. This finding precisely defines the interactions of ustiloxins with tubulin and, taken together with structures of other vinca-ligand complexes, allows structure-based suggestions to be made for improved activity. These comparisons also provide a rationale for the large-scale polymorphism of the protofilament-like assemblies mediated by vinca-domain ligands based on local differences in their interactions with the two tubulin heterodimers constituting their binding site.


    Organizational Affiliation

    Laboratoire d'Enzymologie et Biochimie Structurales, Centre de Recherche de Gif, CNRS, 91198 Gif-sur-Yvette, France.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Tubulin alpha chain
A, C
451Ovis ariesN/A
Find proteins for D0VWZ0 (Ovis aries)
Go to UniProtKB:  D0VWZ0
Entity ID: 2
MoleculeChainsSequence LengthOrganismDetails
Tubulin beta chain
B, D
445Ovis ariesN/A
Find proteins for D0VWY9 (Ovis aries)
Go to UniProtKB:  D0VWY9
Entity ID: 3
MoleculeChainsSequence LengthOrganismDetails
Stathmin-4
E
142Rattus norvegicusGene Names: Stmn4
Find proteins for P63043 (Rattus norvegicus)
Go to UniProtKB:  P63043
Entity ID: 4
MoleculeChainsSequence LengthOrganismDetails
Vinca tetrapeptide
F
4N/AN/A
Protein Feature View is not available: No corresponding UniProt sequence found.
Small Molecules
Ligands 5 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
GDP
Query on GDP

Download SDF File
Download CCD File
B, D
GUANOSINE-5'-DIPHOSPHATE
C10 H15 N5 O11 P2
QGWNDRXFNXRZMB-UUOKFMHZSA-N
 Ligand Interaction
SO4
Query on SO4

Download SDF File
Download CCD File
A, B, D
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
 Ligand Interaction
GTP
Query on GTP

Download SDF File
Download CCD File
A, C
GUANOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O14 P3
XKMLYUALXHKNFT-UUOKFMHZSA-N
 Ligand Interaction
MG
Query on MG

Download SDF File
Download CCD File
A, C
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
 Ligand Interaction
LOC
Query on LOC

Download SDF File
Download CCD File
B, D
N-[(7S)-1,2,3,10-tetramethoxy-9-oxo-6,7-dihydro-5H-benzo[d]heptalen-7-yl]ethanamide
COLCHICINE
C22 H25 N O6
IAKHMKGGTNLKSZ-INIZCTEOSA-N
 Ligand Interaction
External Ligand Annotations
IDBinding Affinity (Sequence Identity %)
LOCKi: 780 - 2500 nM (99) BINDINGDB
LOCIC50: 800 - 4168.7 nM (99) BINDINGDB
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.73 Å
  • R-Value Free: 0.222
  • R-Value Work: 0.184
  • Space Group: P 21 21 21
Unit Cell:
Length (Å)Angle (°)
a = 64.810α = 90.00
b = 128.870β = 90.00
c = 254.840γ = 90.00
Software Package:
Software NamePurpose
AMoREphasing
BUSTERrefinement
ADSCdata collection
XDSdata reduction
SCALAdata scaling

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

Revision History

  • Version 1.0: 2012-08-01
    Type: Initial release
  • Version 1.1: 2012-12-12
    Type: Other
  • Version 1.2: 2013-01-23
    Type: Database references
