3DE9

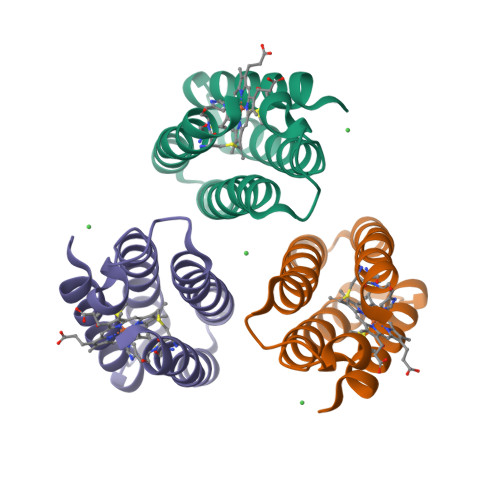

Crystal Structure of a Trimeric Cytochrome cb562 Assembly Induced by Nickel Coordination


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.04 Å
  • R-Value Free: 0.278
  • R-Value Work: 0.217
  • R-Value Observed: 0.222

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Control of protein oligomerization symmetry by metal coordination: C2 and C3 symmetrical assemblies through Cu(II) and Ni(II) coordination.

Salgado, E.N.Lewis, R.A.Mossin, S.Rheingold, A.L.Tezcan, F.A.

(2009) Inorg Chem 48: 2726-2728

  • DOI: 10.1021/ic9001237
  • Primary Citation of Related Structures:
    3DE8, 3DE9

  • PubMed Abstract:
  • We describe the metal-dependent self-assembly of symmetrical protein homooligomers from protein building blocks that feature appropriately engineered metal-chelating motifs on their surfaces. Crystallographic studies indicate that the same four-helix-bundle protein construct, MBPC-1, can self-assemble into C(2) and C(3) symmetrical assemblies dictated by Cu(II) and Ni(II) coordination, respectively ...

    We describe the metal-dependent self-assembly of symmetrical protein homooligomers from protein building blocks that feature appropriately engineered metal-chelating motifs on their surfaces. Crystallographic studies indicate that the same four-helix-bundle protein construct, MBPC-1, can self-assemble into C(2) and C(3) symmetrical assemblies dictated by Cu(II) and Ni(II) coordination, respectively. The symmetry inherent in metal coordination can thus be directly applied to biological self-assembly.


    Organizational Affiliation

    Department of Chemistry and Biochemistry, University of California, San Diego, 9500 Gilman Drive, La Jolla, California 92093, USA.



Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChainsSequence LengthOrganismDetailsImage
Soluble cytochrome b562A106Escherichia coliMutation(s): 5
Gene Names: cybC
UniProt
Find proteins for P0ABE7 (Escherichia coli)
Explore P0ABE7
Go to UniProtKB:  P0ABE7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ABE7
Protein Feature View
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
HEM
Query on HEM

Download Ideal Coordinates CCD File
E [auth A]PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
 Ligand Interaction
NI
Query on NI

Download Ideal Coordinates CCD File
B [auth A],
C [auth A],
D [auth A]
NICKEL (II) ION
Ni
VEQPNABPJHWNSG-UHFFFAOYSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.04 Å
  • R-Value Free: 0.278
  • R-Value Work: 0.217
  • R-Value Observed: 0.222
  • Space Group: H 3
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 51.042α = 90
b = 51.042β = 90
c = 121.971γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
APEXdata collection
SAINTdata reduction
SADABSdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2009-04-21
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2018-03-07
    Changes: Data collection
  • Version 1.3: 2021-10-20
    Changes: Database references, Derived calculations
