3DE8

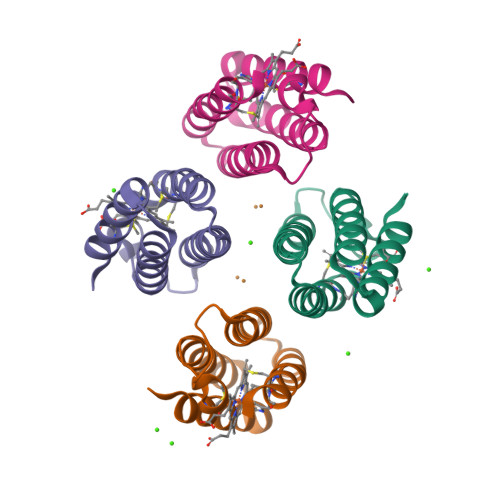

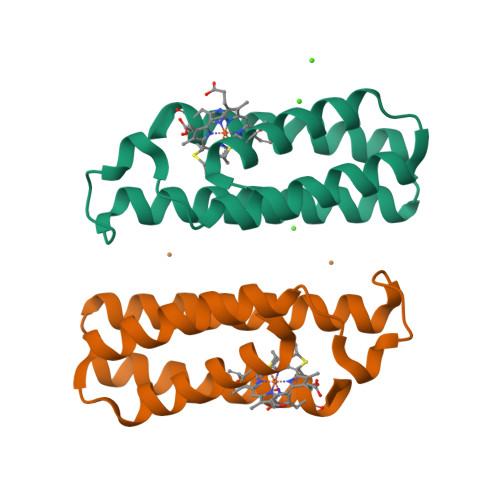

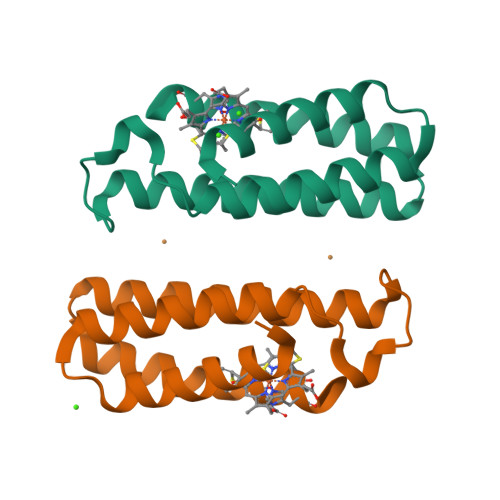

Crystal Structure of a Dimeric Cytochrome cb562 Assembly Induced by Copper Coordination


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.72 Å
  • R-Value Free: 0.244
  • R-Value Work: 0.194

wwPDB Validation 3D Report Full Report


This is version 1.1 of the entry. See complete history

Literature

Control of protein oligomerization symmetry by metal coordination: C2 and C3 symmetrical assemblies through Cu(II) and Ni(II) coordination.

Salgado, E.N.Lewis, R.A.Mossin, S.Rheingold, A.L.Tezcan, F.A.

(2009) Inorg.Chem. 48: 2726-2728

  • DOI: 10.1021/ic9001237
  • Primary Citation of Related Structures:

  • PubMed Abstract:
  • We describe the metal-dependent self-assembly of symmetrical protein homooligomers from protein building blocks that feature appropriately engineered metal-chelating motifs on their surfaces. Crystallographic studies indicate that the same four-helix ...

    We describe the metal-dependent self-assembly of symmetrical protein homooligomers from protein building blocks that feature appropriately engineered metal-chelating motifs on their surfaces. Crystallographic studies indicate that the same four-helix-bundle protein construct, MBPC-1, can self-assemble into C(2) and C(3) symmetrical assemblies dictated by Cu(II) and Ni(II) coordination, respectively. The symmetry inherent in metal coordination can thus be directly applied to biological self-assembly.


    Organizational Affiliation

    Department of Chemistry and Biochemistry, University of California, San Diego, 9500 Gilman Drive, La Jolla, California 92093, USA.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
Soluble cytochrome b562
A, B, C, D
106Escherichia coliMutation(s): 5
Gene Names: cybC
Find proteins for P0ABE7 (Escherichia coli)
Go to UniProtKB:  P0ABE7
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
CA
Query on CA

Download SDF File
Download CCD File
A, B, C
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
 Ligand Interaction
HEM
Query on HEM

Download SDF File
Download CCD File
A, B, C, D
PROTOPORPHYRIN IX CONTAINING FE
HEME
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
 Ligand Interaction
CU
Query on CU

Download SDF File
Download CCD File
A, B
COPPER (II) ION
Cu
JPVYNHNXODAKFH-UHFFFAOYSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.72 Å
  • R-Value Free: 0.244
  • R-Value Work: 0.194
  • Space Group: P 1 21 1
Unit Cell:
Length (Å)Angle (°)
a = 47.566α = 90.00
b = 89.504β = 111.01
c = 52.019γ = 90.00
Software Package:
Software NamePurpose
HKL-2000data scaling
REFMACrefinement
MOLREPphasing
HKL-2000data reduction
HKL-2000data collection

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

Revision History

  • Version 1.0: 2009-04-21
    Type: Initial release
  • Version 1.1: 2011-07-13
    Type: Version format compliance
