Structure of a seleno-methionyl derivative of wild type arabinofuranosidase from Thermobacillus xylanilyticus

Experimental Data Snapshot

  • Resolution: 2.20 Å
  • R-Value Free: 0.186
  • R-Value Work: 0.165
  • R-Value Observed: 0.166

wwPDB Validation   3D Report Full Report

This is version 1.2 of the entry. See complete history


The Structure of the Complex between a Branched Pentasaccharide and Thermobacillus Xylanilyticus Gh-51 Arabinofuranosidase Reveals Xylan-Binding Determinants and Induced Fit.

Paes, G.Skov, L.K.O'Donohue, M.J.Remond, C.Kastrup, J.S.Gajhede, M.Mirza, O.

(2008) Biochemistry 47: 7441

  • DOI: https://doi.org/10.1021/bi800424e
  • Primary Citation of Related Structures:
    2VRK, 2VRQ

  • PubMed Abstract:

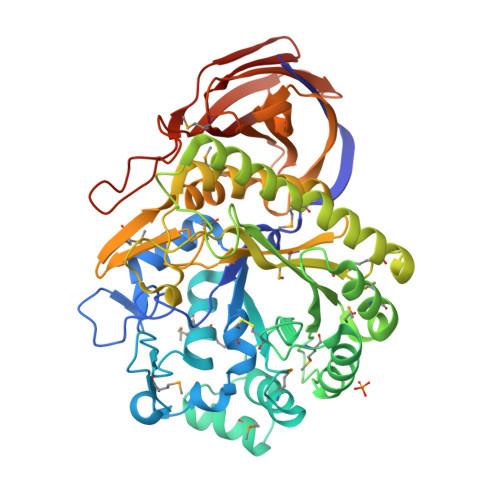

    The crystal structure of the family GH-51 alpha- l-arabinofuranosidase from Thermobacillus xylanilyticus has been solved as a seleno-methionyl derivative. In addition, the structure of an inactive mutant Glu176Gln is presented in complex with a branched pentasaccharide, a fragment of its natural substrate xylan. The overall structure shows the two characteristic GH-51 domains: a catalytic domain that is folded into a (beta/alpha) 8-barrel and a C-terminal domain that displays jelly roll architecture. The pentasaccharide is bound in a groove on the surface of the enzyme, with the mono arabinosyl branch entering a tight pocket harboring the catalytic dyad. Detailed analyses of both structures and comparisons with the two previously determined structures from Geobacillus stearothermophilus and Clostridium thermocellum reveal important details unique to the Thermobacillus xylanilyticus enzyme. In the absence of substrate, the enzyme adopts an open conformation. In the substrate-bound form, the long loop connecting beta-strand 2 to alpha-helix 2 closes the active site and interacts with the substrate through residues His98 and Trp99. The results of kinetic and fluorescence titration studies using mutants underline the importance of this loop, and support the notion of an interaction between Trp99 and the bound substrate. We suggest that the changes in loop conformation are an integral part of the T. xylanilyticus alpha- l-arabinofuranosidase reaction mechanism, and ensure efficient binding and release of substrate.

  • Organizational Affiliation

    INRAUMR FARE 614, 8, rue Gabriel Voisin, BP 316, 51688 Reims cedex 2, France.

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
A, B, C
496Thermobacillus xylanilyticusMutation(s): 0
Find proteins for O69262 (Thermobacillus xylanilyticus)
Explore O69262
Go to UniProtKB:  O69262
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO69262
Sequence Annotations
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Resolution: 2.20 Å
  • R-Value Free: 0.186
  • R-Value Work: 0.165
  • R-Value Observed: 0.166
  • Space Group: P 65 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 158α = 90
b = 158β = 90
c = 380γ = 120
Software Package:
Software NamePurpose
XDSdata reduction
SCALAdata scaling

Structure Validation

View Full Validation Report

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2008-07-01
    Type: Initial release
  • Version 1.1: 2011-05-12
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
