1Q22

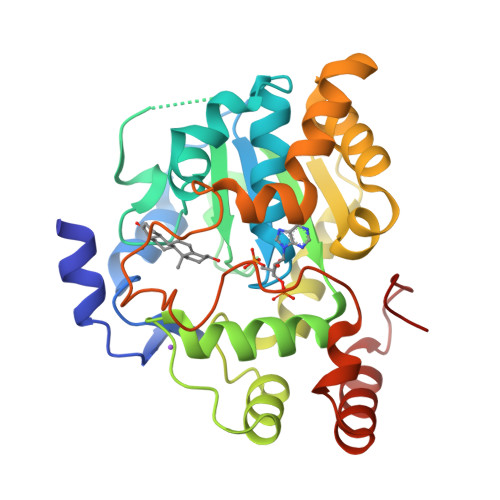

Crystal structure of human cholesterol sulfotransferase (SULT2B1b) in the presence of DHEA and PAP


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.5 Å
  • R-Value Free: 0.252
  • R-Value Work: 0.221

wwPDB Validation 3D Report Full Report


This is version 1.3 of the entry. See complete history

Literature

Crystal structure of human cholesterol sulfotransferase (SULT2B1b) in the presence of pregnenolone and 3'-phosphoadenosine 5'-phosphate. Rationale for specificity differences between prototypical SULT2A1 and the SULT2BG1 isoforms.

Lee, K.A.Fuda, H.Lee, Y.C.Negishi, M.Strott, C.A.Pedersen, L.C.

(2003) J.Biol.Chem. 278: 44593-44599

  • DOI: 10.1074/jbc.M308312200
  • Primary Citation of Related Structures:  1Q1Q, 1Q1Z, 1Q20

  • PubMed Abstract:
  • The gene for human hydroxysteroid sulfotransferase (SULT2B1) encodes two peptides, SULT2B1a and SULT2B1b, that differ only at their amino termini. SULT2B1b has a predilection for cholesterol but is also capable of sulfonating pregnenolone, whereas SU ...

    The gene for human hydroxysteroid sulfotransferase (SULT2B1) encodes two peptides, SULT2B1a and SULT2B1b, that differ only at their amino termini. SULT2B1b has a predilection for cholesterol but is also capable of sulfonating pregnenolone, whereas SULT2B1a preferentially sulfonates pregnenolone and only minimally sulfonates cholesterol. We have determined the crystal structure of SULT2B1a and SULT2B1b bound to the substrate donor product 3'-phosphoadenosine 5'-phosphate at 2.9 and 2.4 A, respectively, as well as SULT2B1b in the presence of the acceptor substrate pregnenolone at 2.3 A. These structures reveal a different catalytic binding orientation for the substrate from a previously determined structure of hydroxysteroid sulfotransferase (SULT2A1) binding dehydroepiandrosterone. In addition, the amino-terminal helix comprising residues Asp19 to Lys26, which determines the specificity difference between the SULT2B1 isoforms, becomes ordered upon pregnenolone binding, covering the substrate binding pocket.


    Organizational Affiliation

    Laboratory of Structural Biology, National Institute of Environmental Health Sciences, National Institutes of Health, Research Triangle Park, North Carolina 27709, USA.




Macromolecules

Find similar proteins by: Sequence  |  Structure

Entity ID: 1
MoleculeChainsSequence LengthOrganismDetails
sulfotransferase family, cytosolic, 2B, member 1 isoform b
A
299Homo sapiensGene Names: SULT2B1 (HSST2)
EC: 2.8.2.2
Find proteins for O00204 (Homo sapiens)
Go to Gene View: SULT2B1
Go to UniProtKB:  O00204
Small Molecules
Ligands 3 Unique
IDChainsName / Formula / InChI Key2D Diagram3D Interactions
NA
Query on NA

Download SDF File
Download CCD File
A
SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
 Ligand Interaction
A3P
Query on A3P

Download SDF File
Download CCD File
A
ADENOSINE-3'-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
WHTCPDAXWFLDIH-KQYNXXCUSA-N
 Ligand Interaction
AND
Query on AND

Download SDF File
Download CCD File
A
3-BETA-HYDROXY-5-ANDROSTEN-17-ONE
C19 H28 O2
FMGSKLZLMKYGDP-USOAJAOKSA-N
 Ligand Interaction
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.5 Å
  • R-Value Free: 0.252
  • R-Value Work: 0.221
  • Space Group: P 41 21 2
Unit Cell:
Length (Å)Angle (°)
a = 75.859α = 90.00
b = 75.859β = 90.00
c = 253.807γ = 90.00
Software Package:
Software NamePurpose
SCALEPACKdata scaling
CNSphasing
CNSrefinement

Structure Validation

View Full Validation Report or Ramachandran Plots



Entry History

Deposition Data

Revision History

  • Version 1.0: 2003-11-11
    Type: Initial release
  • Version 1.1: 2008-04-29
    Type: Version format compliance
  • Version 1.2: 2011-07-13
    Type: Version format compliance
  • Version 1.3: 2017-10-11
    Type: Refinement description
