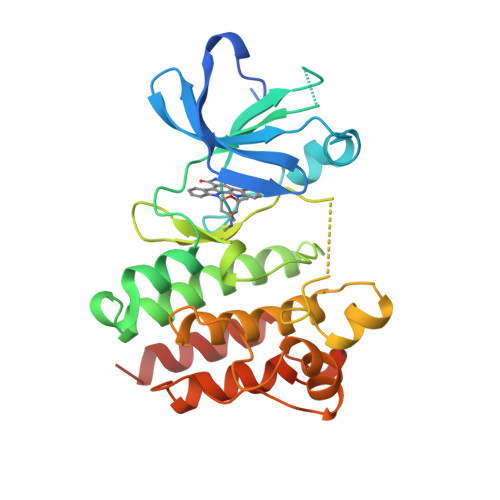

Biological Assembly 1

 3D View: Structure | 1D-3D View | Validation Report | Ligand Interaction

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 31.65 kDa
• Atom Count: 2140
• Modelled Residue Count: 246
• Deposited Residue Count: 278
• Unique protein chains: 1

1BYG

KINASE DOMAIN OF HUMAN C-TERMINAL SRC KINASE (CSK) IN COMPLEX WITH INHIBITOR STAUROSPORINE

• PDB DOI: 10.2210/pdb1BYG/pdb

• Classification: TRANSFERASE
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 1998-10-14 Released: 1999-10-14
• Deposition Author(s): Antson, A.A., Lamers, M.B.A.C., Scott, R.K., Williams, D.H., Hubbard, R.E.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.40 Å
• R-Value Free: 0.287
• R-Value Work: 0.199

Literature

Structure of the protein tyrosine kinase domain of C-terminal Src kinase (CSK) in complex with staurosporine.

Lamers, M.B., Antson, A.A., Hubbard, R.E., Scott, R.K., Williams, D.H.

(1999) J Mol Biol 285: 713-725

• PubMed: 9878439
• DOI: 10.1006/jmbi.1998.2369
• Primary Citation of Related Structures:
  1BYG


• PubMed Abstract:


The crystal structure of the kinase domain of C-terminal Src kinase (CSK) has been determined by molecular replacement, co-complexed with the protein kinase inhibitor staurosporine (crystals belong to the space group P21212 with a=44.5 A, b=120.6 A, c=48.3 A). The final model of CSK has been refined to an R-factor of 19.9 % (Rfree=28.7 %) at 2.4 A resolution. The structure consists of a small, N-terminal lobe made up mostly of a beta-sheet, and a larger C-terminal lobe made up mostly of alpha-helices. The structure reveals atomic details of interactions with staurosporine, which binds in a deep cleft between the lobes. The polypeptide chain fold of CSK is most similar to c-Src, Hck and fibroblast growth factor receptor 1 kinase (FGFR1K) and most dissimilar to insulin receptor kinase (IRK). Interactions between the N and C-terminal lobe are mediated by the bound staurosporine molecule and by hydrogen bonds. In addition, there are several water molecules forming lobe-bridging hydrogen bonds, which may be important for maintaining the catalytic integrity of the kinase. Furthermore, the conserved Lys328 and Glu267 residues utilise water in the formation of a molecular pivot which is essential in allowing relative movement of the N and C-terminal lobes. An analysis of the residues around the ATP-binding site reveals structural differences with other protein tyrosine kinases. Most notable of these are different orientations of the conserved residues Asp332 and Phe333, suggesting that inhibitor binding proceeds via an induced fit. These structural observations have implications for understanding protein tyrosine kinase catalytic mechanisms and for the design of ATP-mimicking inhibitors of protein kinases.

---

Organizational Affiliation:

Peptide Therapeutics, 321 Cambridge Science Park, Cambridge, CB4 4WG, UK.

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
PROTEIN (C-TERMINAL SRC KINASE)	A	278	Homo sapiens	Mutation(s): 0  Gene Names: CSK EC: 2.7.1.112 (PDB Primary Data), 2.7.10.2 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P41240 (Homo sapiens) Explore P41240  Go to UniProtKB:  P41240
PHAROS:  P41240 GTEx:  ENSG00000103653

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
STU	B [auth A]	STAUROSPORINE C28 H26 N4 O3 HKSZLNNOFSGOKW-FYTWVXJKSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.40 Å
• R-Value Free: 0.287
• R-Value Work: 0.199
• Space Group: P 2₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 44.49	α = 90
b = 120.58	β = 90
c = 48.29	γ = 90

Software Package:

Software Name	Purpose
CCP4	model building
REFMAC	refinement
DENZO	data reduction
SCALEPACK	data scaling
CCP4	phasing

Structure Validation

Entry History

Deposition Data

• Deposited Date: 1998-10-14
• Released Date: 1999-10-14
Deposition Author(s): Antson, A.A., Lamers, M.B.A.C., Scott, R.K., Williams, D.H., Hubbard, R.E.

Revision History

• Version 1.0: 1999-10-14
  Type: Initial release

• Version 1.1: 2008-04-27
  Changes: Version format compliance
• Version 1.2: 2011-07-13
  Changes: Version format compliance
