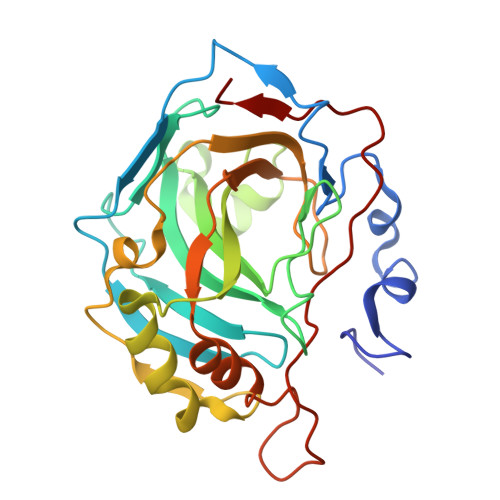

Carbonic Anhydrase in Complex with Steriod_Sulphamoyl
Brynda, J., Rezacova, P.M., Kudova, E.To be published.
Experimental Data Snapshot
Entity ID: 1 | |||||
---|---|---|---|---|---|
Molecule | Chains | Sequence Length | Organism | Details | Image |
Carbonic anhydrase 2 | 260 | Homo sapiens | Mutation(s): 0  Gene Names: CA2 EC: 4.2.1.1 | ||
UniProt & NIH Common Fund Data Resources | |||||
Find proteins for P00918 (Homo sapiens) Explore P00918  Go to UniProtKB:  P00918 | |||||
PHAROS:  P00918 GTEx:  ENSG00000104267  | |||||
Entity Groups   | |||||
Sequence Clusters | 30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity | ||||
UniProt Group | P00918 | ||||
Sequence AnnotationsExpand | |||||
|
Ligands 2 Unique | |||||
---|---|---|---|---|---|
ID | Chains | Name / Formula / InChI Key | 2D Diagram | 3D Interactions | |
VSM (Subject of Investigation/LOI) Query on VSM | C [auth A] | [(3~{S},5~{S},8~{S},13~{R},14~{R})-5,14-dimethyl-16-oxidanylidene-1,2,3,4,6,7,8,11,12,13,15,17-dodecahydrocyclopenta[a]phenanthren-3-yl] sulfamate C19 H29 N O4 S DJFIEPZQLUEUTN-ZOLDJLEQSA-N | |||
ZN Query on ZN | B [auth A] | ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N |
Length ( Å ) | Angle ( ˚ ) |
---|---|
a = 42.13 | α = 90 |
b = 41.17 | β = 104.44 |
c = 72.33 | γ = 90 |
Software Name | Purpose |
---|---|
REFMAC | refinement |
XSCALE | data scaling |
XDS | data reduction |
MOLREP | phasing |
Funding Organization | Location | Grant Number |
---|---|---|
Ministry of Education (MoE, Czech Republic) | Czech Republic | LM2015064 |
